Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1763MPDE-3.3#PBFIC REG LINEAR 3.3V 500MA 12DFN |
3,123 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.45V @ 500mA | 500mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x3) |
|
LT1763MPS8#PBFIC REG LINEAR POS ADJ 500MA 8SO |
528 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable | 1 | 20V | 1.22V | 20V | 0.45V @ 500mA | 500mA | 75 µA | 16 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | 8-SO |
|
LT3081MPFE#PBFIC REG LIN POS ADJ 1.5A 16TSSOP |
112 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 36V | 0V | 34.5V | 1.5V @ 1.5A | 1.5A | 50 µA | 5 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
LT1764AMPQ#PBFIC REG LINEAR POS ADJ 3A 5DDPAK |
624 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
LT3045MPDD#PBFIC REG LIN POS PROG 500MA 10DFN |
1,035 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 20V | 0V | 15V | 0.45V @ 500mA | 500mA | - | 25 mA | 117dB ~ 53dB (120Hz ~ 10MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|

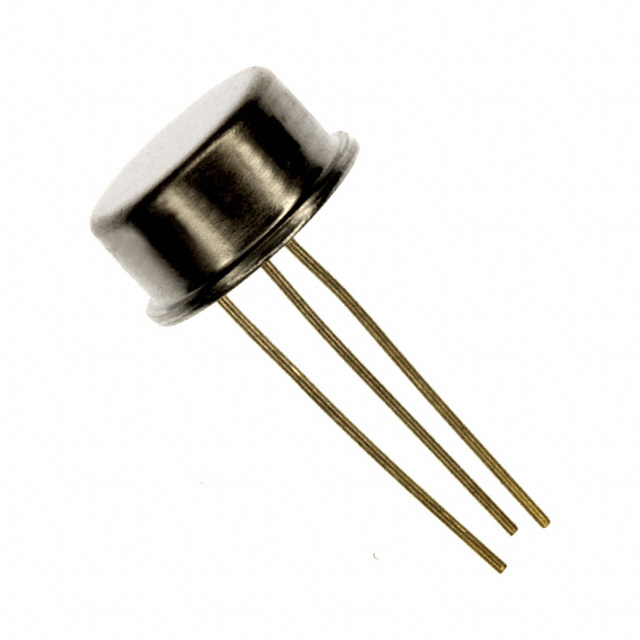

LM317HIC REG LINEAR POS ADJ 1.5A TO3 |
201 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3 |
|
|
LM137H/NOPBIC REG LIN NEG ADJ 1.5A TO3 |
128 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Adjustable | 1 | -40V | -1.2V | -37V | - | 1.5A | - | - | 66dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C | - | - | Through Hole | TO-3 |
|

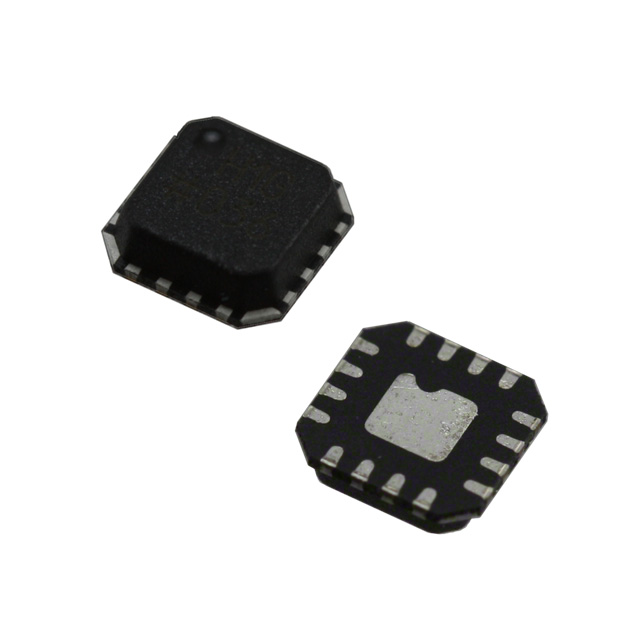

ADP1765ACPZ-R7IC REG LINEAR POS ADJ 5A 16LFCSP |
1,773 |
|
Datasheet |
- | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 1.98V | 0.5V | 1.5V | - | 5A | 17 mA | 25 mA | 61dB ~ 33dB (10kHz ~ 1MHz) | Enable, Power Good, Soft Start | Current Limit, Thermal Overload | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-LFCSP (3x3) |
|

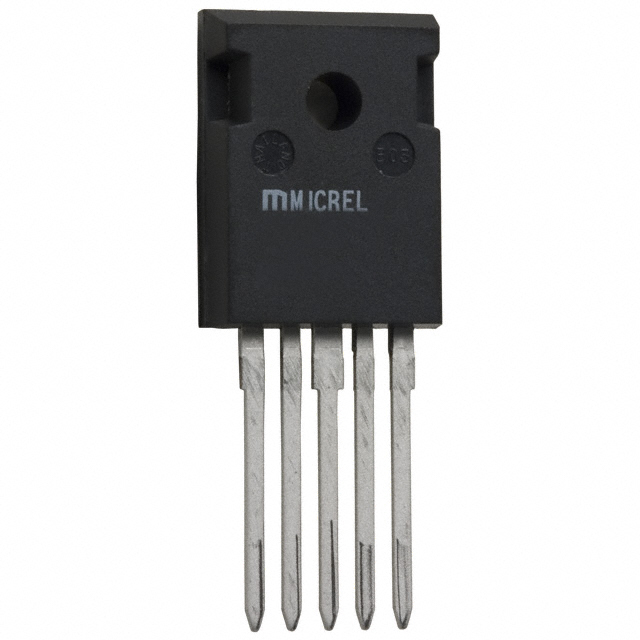

MIC29752WWTIC REG LIN POS ADJ 7.5A TO247-5 |
206 |
|
Datasheet |
- | TO-247-5 | Tube | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.75V @ 7.5A | 7.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-247-5 |
|
TPS74401MRGWREPIC REG LINEAR POS ADJ 3A 20VQFN |
3,301 |
|
Datasheet |
- | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 3.6V | 0.24V @ 3A | 3A | - | - | 73dB ~ 50dB (1kHz ~ 800kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|
TPS7A4001MDGNREPIC REG LIN POS ADJ 50MA 8HVSSOP |
4,661 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 100V | 1.161V | 90V | 1.3V @ 50mA | 50mA | 65 µA | - | 65dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
|
LM140LAH-12IC REG LINEAR 12V 100MA TO39-3 |
509 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A | 100mA | 3 mA | 4.5 mA | 72dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Through Hole | TO-3 |
|
LT3083MPDF#PBFIC REG LINEAR POS ADJ 3A 12DFN |
279 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 14V | 0V | 14V | 0.42V @ 3A | 3A | 50.5 µA | 1 mA | 85dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | 12-DFN (4x4) |
|
|
LT3083MPFE#PBFIC REG LINEAR POS ADJ 3A 16TSSOP |
245 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 14V | 0V | 14V | 0.42V @ 3A | 3A | 50.5 µA | 1 mA | 85dB ~ 20dB (120Hz ~ 1MHz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
|
|
LM140LAH-5.0IC REG LINEAR 5V 100MA TO39-3 |
228 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 100mA | 3 mA | 4.5 mA | 72dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Through Hole | TO-3 |
|
LT3070MPUFD#PBFIC REG LIN POS PROG 5A 28QFN |
29 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tube | Active | Positive | Programmable | 1 | 3V | 0.8V | 1.8V | 0.15V @ 5A | 5A | 1.5 mA | 10 mA | 66dB (120Hz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
|
LM317HVK STEEL/NOPBIC REG LINEAR POS ADJ 1.5A TO3-2 |
200 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | Positive | Adjustable | 1 | 60V | 1.25V | 57V | - | 1.5A | 12 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
|
LM323K STEEL/NOPBIC REG LINEAR 5V 3A TO3-2 |
61 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 20V | 5V | - | - | 3A | - | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|
|
LM340K-5.0/NOPBIC REG LINEAR 5V 1.5A TO3-2 |
78 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 1.5A | 6 mA | - | 70dB (120Hz) | - | Over Current, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-3-2 |
|

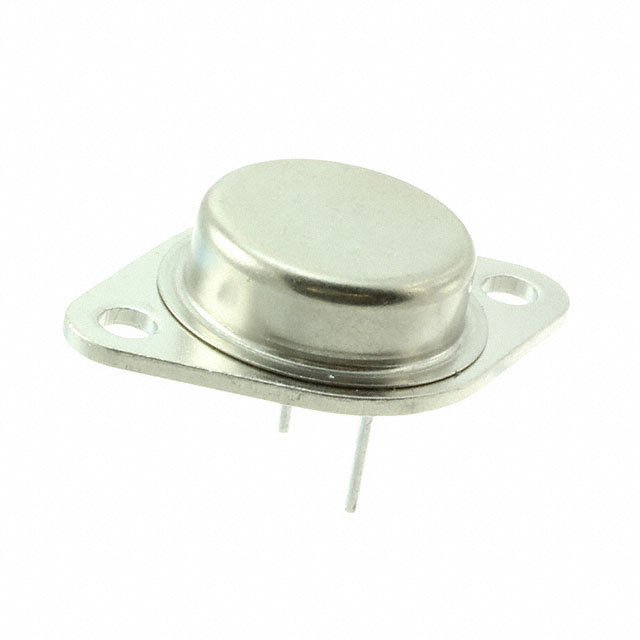

LM117K STEEL/NOPBIC REG LINEAR POS ADJ 1.5A TO3-2 |
65 |
|
Datasheet |
- | TO-204AA, TO-3 | Tray | Active | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 5 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Through Hole | TO-3-2 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
