Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV8703MX30TCGIC REG LINEAR 3V 300MA 6XDFN |
10,594 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 300mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-XDFN (1.5x1.5) |
|
MIC3975-3.3YMM-TRIC REG LINEAR 3.3V 750MA 8MSOP |
2,363 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.5V @ 750mA | 750mA | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
BA10FP-E2IC REG LINEAR 10V 1A TO252-3 |
1,171 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 25V | 10V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Surface Mount | TO-252 |
|
LP3962EMP-2.5/NOPBIC REG LINEAR 2.5V 1.5A SOT223-5 |
950 |
|
Datasheet |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
NCV8768CD33ABR2GIC REG LINEAR LDO 3.3V DPAK-5 |
5,000 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.6V @ 150mA | 150mA | 35 µA | - | 60dB (100Hz) | Enable, Reset, Watchdog | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
TPL803233-S5TR-SLINEAR VOLTAGE REGULATOR IC POSI |
2,995 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.55V @ 300mA | 300mA | 160 µA | - | 79dB ~ 41dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
TLE72702GATMA1IC REG LINEAR 5V 300MA TO263-5 |
992 |
|
Datasheet |
OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Delay, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | TO-263-5 |
|
MAX1793EUE50+IC REG LIN POS ADJ 1A 16TSSOP |
0 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Positive | Adjustable (Fixed) | 1 | 5.5V | 1.25V (5V) | 5V | 0.35V @ 1A | 1A | 200 µA | - | - | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP-EP |
|
NCV8535MN150R2GIC REG LINEAR 1.5V 500MA 10DFN |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.5V | - | 1.43V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8535MN250R2GIC REG LINEAR 2.5V 500MA 10DFN |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.5V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8535MN280R2GIC REG LINEAR 2.8V 500MA 10DFN |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.8V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8535MN285R2GIC REG LINEAR 2.85V 500MA 10DFN |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.85V | - | 0.34V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
NCV8605MN28T2GIC REG LINEAR 2.8V 500MA 6DFN |
3,000 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.24V @ 500mA | 500mA | 180 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
|
NCV8535MN190R2GIC REG LINEAR 1.9V 500MA 10DFN |
2,975 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.9V | - | 1.03V @ 500mA | 500mA | 190 µA | 14 mA | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|
|
NCV8537MN180R2GIC REG LINEAR 1.8V 500MA 10DFN |
2,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 0.62V @ 500mA (Typ) | 500mA | 220 µA | 14 mA | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 10-DFN (3x3) |
|

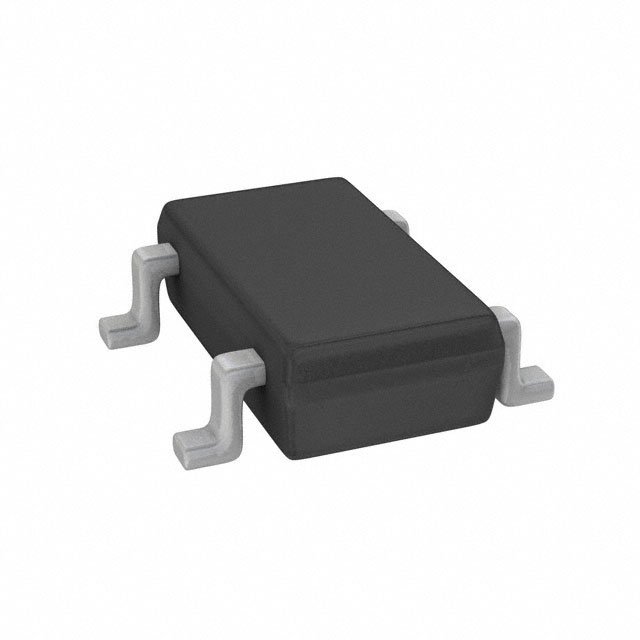

MPQ2013DGJE-AEC1-Z40V, 100MA, LOW QUIESCENT CURREN |
3,000 |
|
Datasheet |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.9V @ 100mA | 100mA | 9 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-25-AEC1-Z40V, 100MA, LOW QUIESCENT CURREN |
3,000 |
|
Datasheet |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 2.5V | - | 0.9V @ 100mA | 100mA | 10 µA | 40 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-5-AEC1-Z40V, 100MA, LOW QUIESCENT CURREN |
3,000 |
|
Datasheet |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.9V @ 100mA | 100mA | 10 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
|
MPQ2013DGJE-33-AEC1-Z40V, 100MA, LOW QUIESCENT CURREN |
2,973 |
|
Datasheet |
- | SOT-23-4 Thin, TSOT-23-4 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.9V @ 100mA | 100mA | 10 µA | 50 µA | 58dB (100kHz), 55dB ~ 41dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-4 |
|
MIC37151-3.3WR-TRIC REG LINEAR 3.3V 1.5A SPAK-5 |
550 |
|
Datasheet |
- | SPAK-5 (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 5-SPAK |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
