Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP38841S-1.5/NOPBIC REG LINEAR 1.5V 800MA DDPAK |
270 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP38851S-ADJ/NOPBIC REG LIN POS ADJ 800MA DDPAK |
270 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.2V @ 800mA | 800mA | 300 µA | 9 mA | 72dB ~ 61dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
MP2013AGG-ZIC REG LINEAR POS ADJ 150MA 6QFN |
4,805 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.215V | 15V | 0.85V @ 150mA | 150mA | 9 µA | 22 µA | 58dB ~ 41dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-QFN (2x2) |
|
NCV8772CDT334RKGIC REG LINEAR LDO 3.3V D2PAK |
2,490 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
NCV2931ACD2TR4GIC REG LIN POS ADJ 100MA D2PAK-3 |
2,400 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26V | 2.7V | 29.5V | 0.6V @ 100mA | 100mA | 1 mA | 6 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-3 |
|
NCP691MN33T2GIC REG LINEAR 3.3V 1A 6DFN |
2,715 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.25V @ 1A | 1A | 200 µA | 240 µA | - | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
TPS71921-22DRVTIC REG LIN 2.1V/2.2V 200MA 6WSON |
490 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6.5V | 2.1V, 2.2V | - | - | 200mA | 160 µA | 250 µA | 63dB ~ 44dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS71913-28DRVTIC REG LIN 1.3V/2.8V 200MA 6WSON |
108 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6.5V | 1.3V, 2.8V | - | -, 0.4V @ 200mA | 200mA | 160 µA | 250 µA | 63dB ~ 44dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
NCV8537ML180R2GIC REG LINEAR 1.8V 500MA 10DFNW |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 0.62V @ 500mA | 500mA | 220 µA | 14 mA | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
|
NCV8537MLADJR2GIC REG LIN POS ADJ 500MA 10DFNW |
3,000 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 12V | 1.25V | 10V | 0.34V @ 500mA | 500mA | 220 µA | 14 mA | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
|
NCV8537ML500R2GIC REG LINEAR 5V 500MA 10DFNW |
2,970 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.34V @ 500mA | 500mA | 220 µA | 14 mA | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
ADP121-ACBZ25R7IC REG LINEAR 2.5V 150MA 4WLCSP |
2,347 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | - | 150mA | 21 µA | 40 µA | 66dB (10kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.82x0.82) |
|
|
NCV8537ML330R2GIC REG LINEAR 3.3V 500MA 10DFNW |
1,005 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.34V @ 500mA | 500mA | 220 µA | 14 mA | - | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 10-DFNW (3x3) |
|
TPS7230QPIC REG LINEAR 3V 250MA 8DIP |
690 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Positive | Fixed | 1 | 10V | 3V | - | 1.1V @ 250mA | 250mA | 225 µA | 325 µA | 60dB ~ 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | 8-PDIP |
|
NCP730BMT250TBGIC REG LINEAR 2.5V 150MA 6WDFN |
2,996 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 2.5V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
|
NCP730BMT280TBGIC REG LINEAR 2.8V 150MA 6WDFN |
2,958 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 38V | 2.8V | - | 0.48V @ 150mA | 150mA | 3 µA | 450 µA | 80dB ~ 48dB (10Hz ~ 1MHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WDFN (2x2) |
|
TPL8032AD-S5TRLINEAR VOLTAGE REGULATOR IC FIXE |
2,744 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.22V | 18V | 0.6V @ 300mA | 300mA | 160 µA | - | 79dB ~ 41dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|

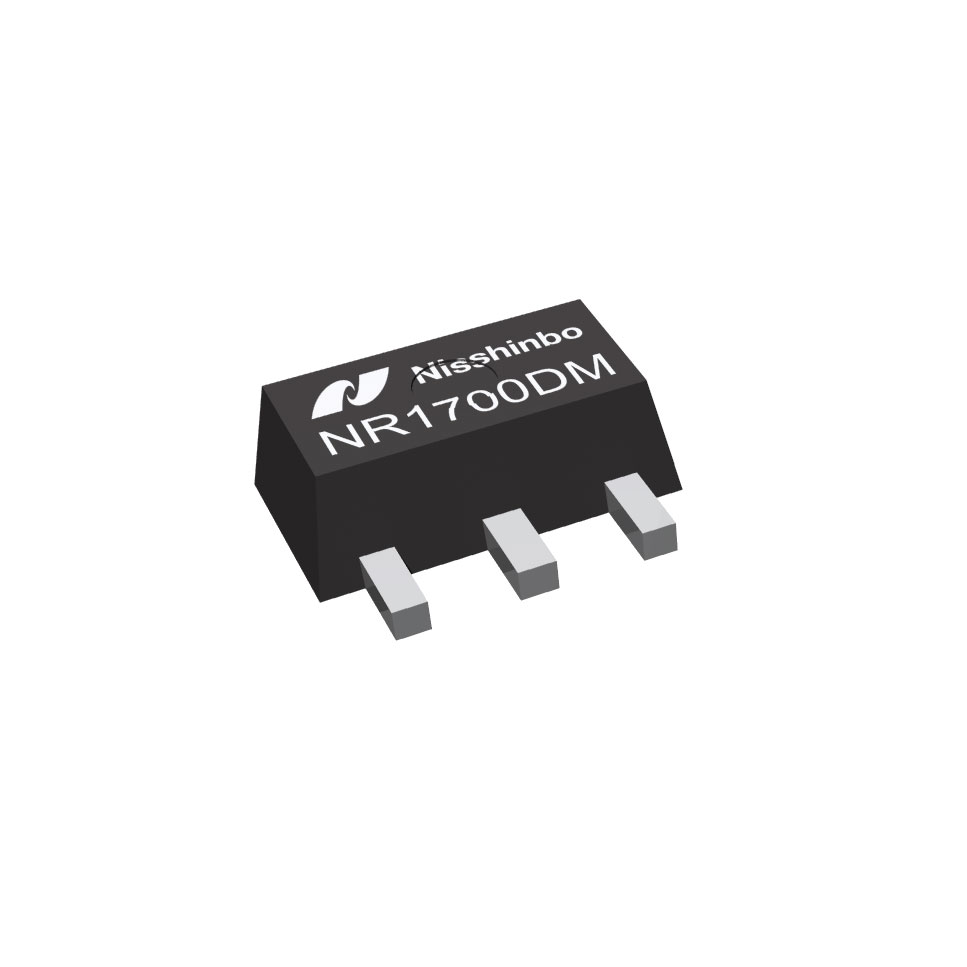

NR1700DM000AE1PFOR AUTOMOTIVE 200MA 42V INPUT A |
1,100 |
|
Datasheet |
NR1700 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 42V | 1.2V | 24V | 1V @ 200mA | 200mA | 21 µA | - | 55dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
BD950M5EFJ-CE2QUICUR, AUTOMOTIVE 500MA |
2,690 |
|
Datasheet |
BD9xxM5-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 1.3V @ 500mA | 500mA | 24.5 µA | - | - | - | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
BD25HC5VEFJ-ME21.5A 2.5V, FIXED OUTPUT, HIGH-AC |
2,500 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 8V | 2.5V | - | 1.2V @ 1.5A | 1.5A | 1.2 mA | - | - | Enable, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
