Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7B8433QDCYRQ1M3AUTOMOTIVE 150-MA, 40-V, LOW-DRO |
1,864 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.23V @ 150mA | 150mA | 26 µA | - | 55dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-223-4 |
|
TPS72727DSETIC REG LINEAR 2.7V 250MA 6WSON |
450 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.2V @ 200mA | 250mA | 110 µA | 130 µA | 85dB ~ 45dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
|
TPS72725DSETIC REG LINEAR 2.5V 250MA 6WSON |
423 |
|
Datasheet |
- | 6-WFDFN | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 200mA | 250mA | 110 µA | 130 µA | 85dB ~ 45dB (10Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
NCV612SQ18T2GIC REG LINEAR 1.8V 100MA SC88A |
3,000 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.56V @ 100mA | 100mA | 90 µA | 90 µA | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
XC6216B362MR-GIC REG LINEAR 3.6V 150MA SOT25 |
3,000 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 3.6V | - | 1.7V @ 100mA | 150mA | 9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
BD433S2EFJ-CE2AUTOMOTIVE 200MA 3.3V, FIXED OUT |
2,476 |
|
Datasheet |
BD4xxS2-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.45V @ 100mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
|
BD433S2WEFJ-CE2AUTOMOTIVE 200MA 3.3V, FIXED OUT |
2,415 |
|
Datasheet |
BD4xxS2-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.45V @ 100mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|
TLE42764EV50XUMA1IC REG LINEAR 5V 400MA SSOP-14-2 |
2,190 |
|
Datasheet |
OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 220 µA | 25 mA | 54dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14-2 |
|
|
BD450S2EFJ-CE2AUTOMOTIVE 200MA 5.0V, FIXED OUT |
1,938 |
|
Datasheet |
BD4xxS2-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.35V @ 100mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HTSOP-J |
|

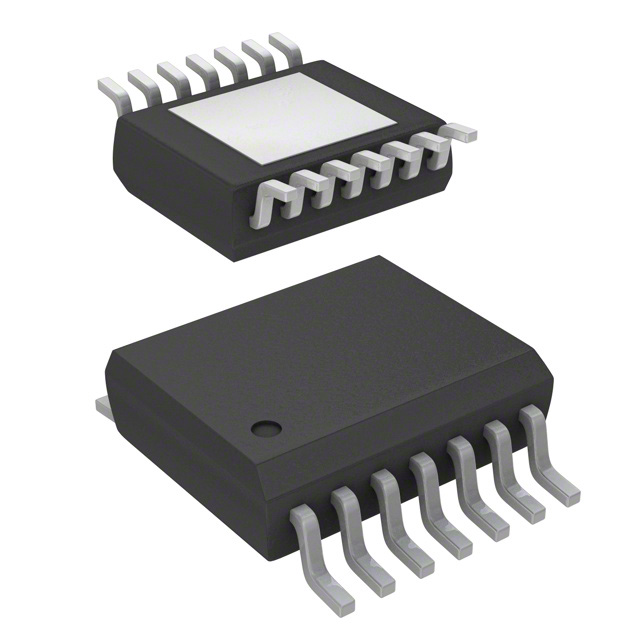

TLS820F3ELV50XUMA1OPTIREG LINEAR PG-SSOP-14 |
4,619 |
|
Datasheet |
OPTIREG™ | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.48V @ 200mA | 200mA | 55 µA | 55 µA | 60dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SSOP-14 |
|
NCV8716MT25TBGIC REG LINEAR 2.5V 80MA 6WDFN |
3,000 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 2.5V | - | 0.64V @ 80mA | 80mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
|
NCV8716MT18TBGIC REG LINEAR 1.8V 80MA 6WDFN |
2,990 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 24V | 1.8V | - | - | 80mA | 5.8 µA | - | 60dB (100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-WDFN (2x2) |
|
TPS72201DBVTIC REG LIN POS ADJ 50MA SOT23-5 |
495 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.22V | 2.5V | 0.1V @ 50mA | 50mA | 120 µA | 550 µA | 48dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCP606MN28T2GIC REG LINEAR 2.8V 500MA 6DFN |
3,000 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.24V @ 500mA | 500mA | 180 µA | - | - | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (3x3.3) |
|
|
XC6216C201MR-GIC REG LINEAR 2V 100MA SOT25 |
2,988 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 2V | - | 2.6V @ 100mA | 100mA | 9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
XC6216B602MR-GIC REG LINEAR 6V 150MA SOT25 |
2,975 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 28V | 6V | - | 1.3V @ 100mA | 150mA | 9 µA | - | 30dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
XC6702D501ER-GIC REG LINEAR 5V 300MA 6USPC |
2,975 |
|
Datasheet |
- | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.81V @ 100mA | 300mA | 90 µA | - | 65dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | 6-USPC (1.8x2) |
|
XC6220B501PR-GIC REG LINEAR 5V 1A SOT89-5 |
780 |
|
Datasheet |
- | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.655V @ 1A | 1A | 18 µA | 108 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-5 |
|
LP38693QSDX-3.3/NOPBIC REG LINEAR 3.3V 500MA 6WSON |
5,263 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 3.3V | - | 0.55V @ 500mA | 500mA | 55 µA | 100 µA | 55dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-WSON (3x3) |
|
NCV8187AMTWADJTAGIC REG LIN POS ADJ 1.2A 6-WDFNW |
4,116 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5.2V | 0.495V @ 1.2A | 1.2A | 45 µA | - | 75dB (1kHz) | Enable, Power Good | Over Current, Over Temperature | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
