Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS7A14105PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,984 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.05V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1412PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,859 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.2V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1410PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,847 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1409PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,794 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.9V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS7A1418PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,772 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 1.8V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
XC6501D331GR-GIC REG LINEAR 3.3V 200MA 4USP |
2,550 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 200mA | 200mA | 21 µA | - | 50dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-USP (1.2x1.6) |
|
LP2985IM5-3.3/NOM3150-MA, 16-V, LOW-DROPOUT VOLTAG |
2,515 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.575V @ 150mA | 150mA | 95 µA | 2 mA | 70dB ~ 40dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A1408PDRVR1-A, LOW INPUT AND OUTPUT VOLTAG |
2,450 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 2.2V | 0.8V | - | 0.099V @ 1A | 1A | 43 µA | - | 90dB ~ 24dB (100Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
LM79L05ACTL/NOPBIC REG LINEAR -5V 100MA 6DSBGA |
366 |
|
Datasheet |
- | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -35V | -5V | - | - | 100mA | 6 mA | - | 50dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 70°C | - | - | Surface Mount | 6-DSBGA (1.5x1.3) |
|
LP5996SD-1018/NOPBIC REG LINEAR 1V/1.8V 10SON |
933 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 1V, 1.8V | - | -, 0.55V @ 300mA | 150mA, 300mA | 110 µA | 170 µA | 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-SON (3x3) |
|
AP7387-30FDCR-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,985 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
|
AP7387-36FDC-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,970 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.6V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
|
AP7387-36FDCR-7LDO CMOS LowCurr U-DFN2020-6 T&R |
5,800 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3.6V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|

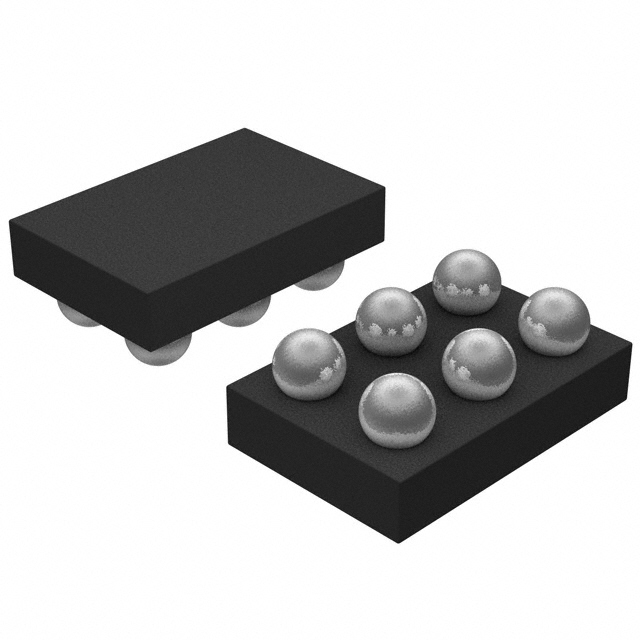

NCP156BBFCT120180T2GDUAL 500 MA / 250 MA LDO FOR CAM |
4,975 |
|
Datasheet |
- | 6-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.2V, 1.8V | - | 0.15V @ 500mA | 500mA, 250mA | 130 µA | - | 70dB ~ 92dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature | 125°C (TJ) | - | - | Surface Mount | 6-WLCSP (1.2x0.8) |
|
|
AP7387-30FDC-7LDO CMOS LowCurr U-DFN2020-6 T&R |
4,830 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 3V | - | 1.35V @ 150mA | 150mA | 4 µA | - | - | Current Limit | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | U-DFN2020-6 (Type C) |
|
NCV8164AMTWADJTAGLDO 300 MA AD 1.2V, ULTRA-LOW NO |
3,000 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.2V | 5V | 0.295V @ 300mA | 300mA | 40 µA | - | 83dB ~ 61dB (100Hz ~ 100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | 6-WDFNW (2x2) |
|

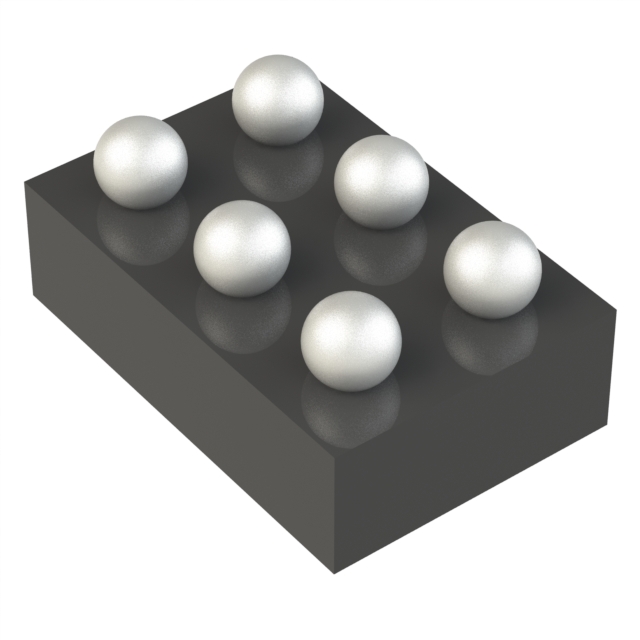

MT6680P/AGENIO 1200, GENIO 700< GENIO 510 |
3,000 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.5V | 3V | 0.075V @ 1A | 1A | 50 µA | - | 70dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (.80x1.2) |
|
RT9013-18GQWIC LDO 0.5A LOW DROPOUT WDFN-6 |
2,500 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.4V @ 500mA | 500mA | 50 µA | - | 50dB (10kHz) | Current Limit, Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WDFN (2x2) |
|
AP7361-33D-13IC REG LINEAR 3.3V 1A TO252 |
1,626 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.7V @ 1A | 1A | 90 µA | - | 65dB ~ 45dB (1kHz ~ 10kHz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TLV702475DBVTIC REG LIN 4.75V 300MA SOT23-5 |
617 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.75V | - | 0.38V @ 300mA | 300mA | 55 µA | 370 µA | 68dB (1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
