Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX1735EUK50+TIC REG LIN NEG ADJ 200MA SOT23-5 |
4,794 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Negative | Adjustable (Fixed) | 1 | -6.5V | -1.25V (-5V) | -5.5V | 0.24V @ 200mA | 200mA | 85 µA | 125 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

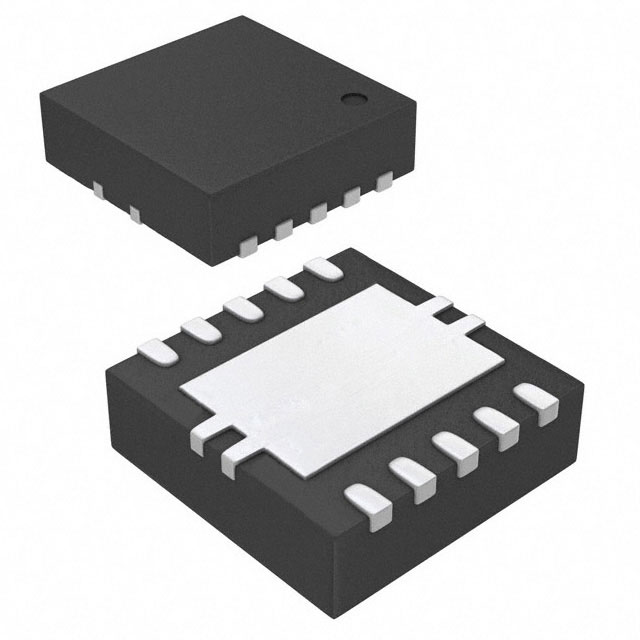

TPS7A3901DSCRIC REG LINEAR POS/NEG ADJ 10WSON |
2,909 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive and Negative | Adjustable | 2 | ±33V | 1.2V, 0V | 30V, -30V | 0.5V @ 150mA | 150mA | 150 µA | 904 µA | 69dB (120Hz) | Current Limit, Enable, Soft Start | Over Temperature, Under Voltage Lockout (UVLO) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 10-WSON (3x3) |
|
ADP1755ACPZ-R7IC REG LIN POS ADJ 1.2A 16LFCSP |
5,492 |
|
Datasheet |
- | 16-WQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 3.6V | 0.75V | 3.3V | 0.2V @ 1.2A | 1.2A | 800 µA | 1.4 mA | 65dB ~ 51dB (1kHz ~ 100kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-LFCSP (4x4) |
|
LT3009IDC-5#TRMPBFIC REG LINEAR 5V 20MA 6DFN |
1,813 |
|
Datasheet |
- | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 20V | 5V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 56dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 6-DFN (2x2) |
|
TPS7A8300ARGRTIC REG LINEAR POS ADJ 2A 20VQFN |
501 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable/Programmable | 1 | 6.5V | 0.8V | 5.2V | 0.3V @ 2A | 2A | 4 mA | 5 mA | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable, Power Good, Soft Start | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-VQFN (3.5x3.5) |
|
ADP7142ACPZN3.3-R7IC REG LINEAR 3.3V 200MA 6LFCSP |
6,418 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | - | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN1.8-R7IC REG LINEAR 1.8V 200MA 6LFCSP |
2,054 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 1.8V | - | - | 200mA | 140 µA | 320 µA | - | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN-R7IC REG LIN POS ADJ 200MA 6LFCSP |
2,038 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 39.58V | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP7142ACPZN5.0-R7IC REG LINEAR 5V 200MA 6LFCSP |
503 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
ADP1708ACPZ-R7IC REG LINEAR POS ADJ 1A 8LFCSP |
9,230 |
|
Datasheet |
- | 8-WFDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | 70dB ~ 56dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-LFCSP (3x3) |
|
ADP7142ARDZ-R7IC REG LIN POS ADJ 200MA 8SOIC |
7,602 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 39.58V | 0.42V @ 200mA | 200mA | 140 µA | 320 µA | 88dB ~ 50dB (10kHz ~ 1MHz) | Enable, Soft Start | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|

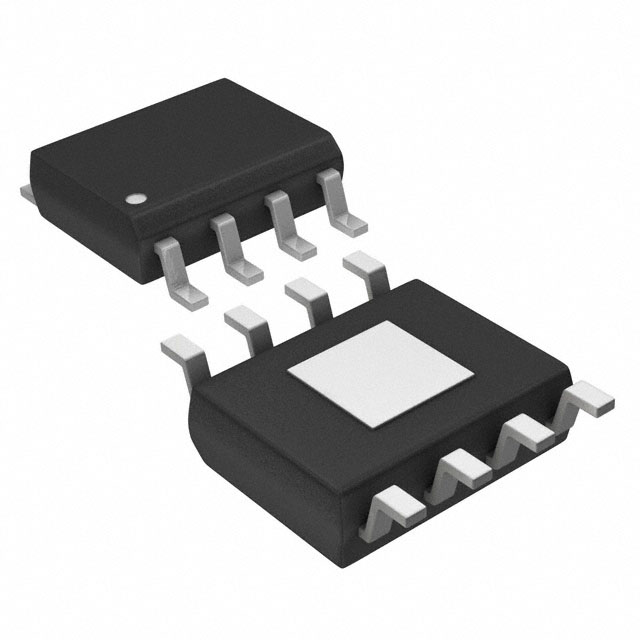

ADP1708ARDZ-R7IC REG LINEAR POS ADJ 1A 8SOIC |
5,583 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 5V | 0.6V @ 1A | 1A | 390 µA | 1.55 mA | 70dB ~ 56dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
ADP3330ARTZ3.3-RL7IC REG LINEAR 3.3V 200MA SOT23-6 |
7,585 |
|
Datasheet |
anyCAP® | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.23V @ 200mA | 200mA | 50 µA | 4 mA | - | Error Flag, Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADP3330ARTZ-5-RL7IC REG LINEAR 5V 200MA SOT23-6 |
301 |
|
Datasheet |
anyCAP® | SOT-23-6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 5V | - | 0.23V @ 200mA | 200mA | 50 µA | 4 mA | - | Error Flag, Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
MIC29152WU-TRIC REG LIN POS ADJ 1.5A TO263-5 |
3,931 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
MIC29152WUIC REG LIN POS ADJ 1.5A TO263-5 |
323 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Positive | Adjustable | 1 | 26V | 1.25V | 25V | 0.6V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
TPS7A4700RGWRIC REG LINEAR POS ADJ 1A 20VQFN |
10,732 |
|
Datasheet |
- | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 35V | 1.4V | 20.5V | 0.45V @ 1A | 1A | 1 mA | 6.1 mA | 78dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
|

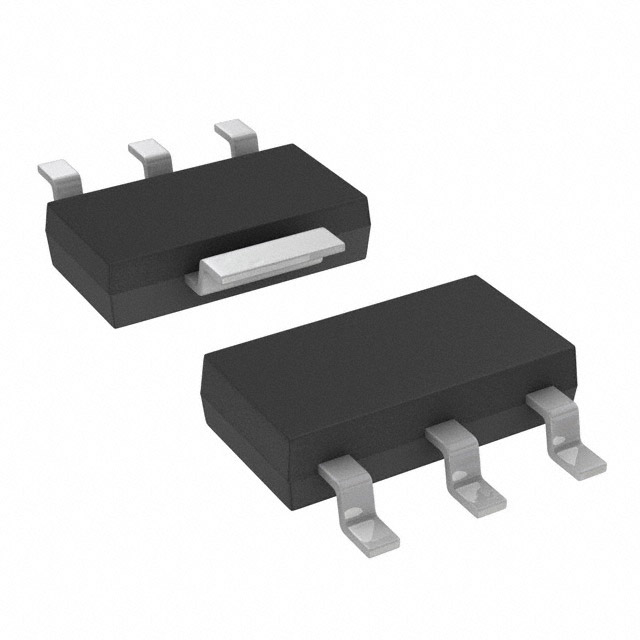

ADP3338AKCZ-3.3RL7IC REG LINEAR 3.3V 1A SOT223-3 |
3,474 |
|
Datasheet |
anyCAP® | TO-261-4, TO-261AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 8V | 3.3V | - | 0.4V @ 1A | 1A | 190 µA | 30 mA | - | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-223-3 |
|
|
ADP3338AKCZ-3.3-RLIC REG LINEAR 3.3V 1A SOT223-3 |
1,995 |
|
Datasheet |
anyCAP® | TO-261-4, TO-261AA | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 8V | 3.3V | - | 0.4V @ 1A | 1A | 190 µA | 30 mA | - | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-223-3 |
|
|
TPS7A4701RGWRIC REG LINEAR POS ADJ 1A 20VQFN |
661 |
|
Datasheet |
- | 20-VQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 35V | 1.4V | 34V | 0.45V @ 1A | 1A | 1 mA | 6.1 mA | 78dB (1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 20-VQFN (5x5) |
