Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BD433U2EFJ-CE2200MA 3.3V OUTPUT LDO REGULATORS |
1,722 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 3.3V | - | 0.35V @ 150mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-HTSOP-J |
|
LP2966IMM-2525/NOPBIC REG LINEAR 2.5V 150MA 8VSSOP |
420 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 7V | 2.5V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
ADP162ACBZ-2.1-R7IC REG LINEAR 2.1V 150MA 4WLCSP |
7,265 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
ADP170AUJZ-1.5-R7IC REG LINEAR 1.5V 300MA TSOT5 |
5,501 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.5V | - | - | 300mA | 60 µA | 260 µA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|
S-19243E00A-E8T1UIC REG LIN POS ADJ 500MA 8HSOPA |
3,530 |
|
Datasheet |
S-19243xxxA | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1V | 9V | - | 500mA | 150 µA | - | - | Soft Start | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
ADP162ACBZ-3.0-R7IC REG LINEAR 3V 150MA 4WLCSP |
2,899 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP162ACBZ-3.2-R7IC REG LINEAR 3.2V 150MA 4WLCSP |
2,695 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-4.2-R7IC REG LINEAR 4.2V 150MA 4WLCSP |
1,952 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4.2V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP162ACBZ-2.3-R7IC REG LINEAR 2.3V 150MA 4WLCSP |
1,392 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.3V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-1.2-R7IC REG LINEAR 1.2V 150MA 4WLCSP |
370 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 150mA | 1.25 µA | 65 µA | 72dB ~ 62dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
TPS77418DGKIC REG LINEAR 1.8V 250MA 8VSSOP |
299 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Positive | Fixed | 1 | 10V | 1.8V | - | - | 250mA | 125 µA | - | 55dB (1kHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
RT9013-28GBIC REG LINEAR 2.8V 500MA SOT23-5 |
5,980 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.4V @ 500mA | 500mA | 50 µA | - | 50dB (10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCV33375ST1.8T3GIC REG LINEAR 1.8V 300MA SOT223 |
3,965 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13V | 1.8V | - | 0.5V @ 300mA | 300mA | 200 µA | - | 75dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-223 (TO-261) |
|

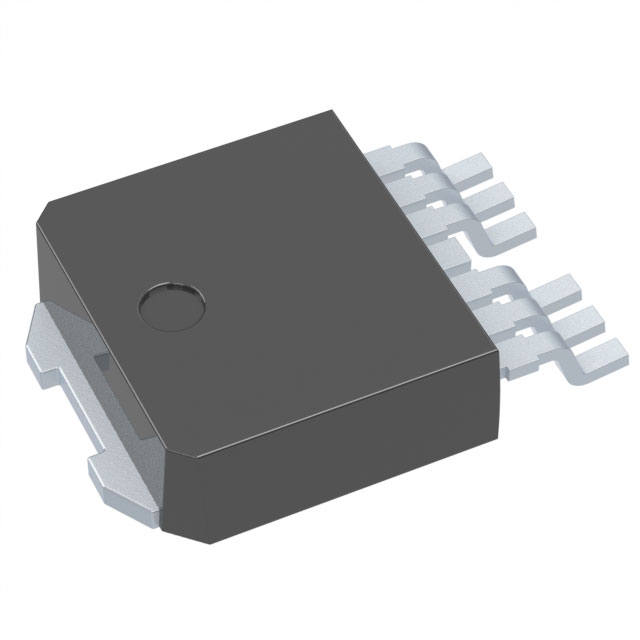

L5300AH7TRIC REG LINEAR 5V 300MA 6HPAK |
2,228 |
|
Datasheet |
- | TO-252-7, DPAK (6 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 300mA | 300mA | 80 µA | 4.2 mA | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 6-HPAK |
|
R1514S033B-E2-JEIC REG LINEAR 3.3V 150MA 6HSOP |
1,863 |
|
Datasheet |
R1514x | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.7V @ 120mA | 150mA | 20 µA | - | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-HSOP-J |
|
LP38851SX-ADJ/NOPBIC REG LIN POS ADJ 800MA DDPAK |
956 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.2V @ 800mA | 800mA | 300 µA | 9 mA | 72dB ~ 61dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LP38841T-0.8/NOPBIC REG LINEAR 0.8V 800MA TO220-5 |
353 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
LP38851T-ADJ/NOPBIC REG LIN POS ADJ 800MA TO220-7 |
331 |
|
Datasheet |
- | TO-220-7 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.2V @ 800mA | 800mA | 300 µA | 9 mA | 72dB ~ 61dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Through Hole | TO-220-7 |
|
|
LP38841T-1.5/NOPBIC REG LINEAR 1.5V 800MA TO220-5 |
326 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.21V @ 800mA | 800mA | 30 µA | 40 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
BD15KA5WFP-E2IC REG LINEAR 1.5V 500MA TO252-5 |
1,999 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.2V @ 200mA | 500mA | 550 µA | 550 µA | 50dB (120Hz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 105°C | - | - | Surface Mount | TO-252-5 |
