Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1963ADCQRIC REG LIN POS ADJ 1.5A SOT223-6 |
3,946 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.55V @ 1.5A | 1.5A | 1 mA | 80 mA | 63dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
TPS7A4501KTTRIC REG LINEAR POS ADJ 1.5A DDPAK |
2,308 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.45V @ 1.5A | 1.5A | 1.5 mA | 90 mA | 68dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
TPS7A8101QDRBRQ1IC REG LINEAR POS ADJ 1A 8SON |
6,836 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 6V | 0.5V @ 1A | 1A | 100 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SON (3x3) |
|
ADP323ACPZ-R7IC REG LINEAR POS ADJ 16LFCSP |
5,725 |
|
Datasheet |
- | 16-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Adjustable | 3 | 5.5V | 0.5V | 5V | 0.17V @ 200mA, 0.17V @ 200mA | 200mA, 200mA, 200mA | 160 µA | 380 µA | 70dB ~ 40dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 16-LFCSP-WQ (3x3) |
|
TPS7A4001DGNTIC REG LIN POS ADJ 50MA 8HVSSOP |
6,285 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 100V | 1.175V | 90V | 1.3V @ 50mA | 50mA | 65 µA | - | 65dB (100Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
TL750L05CDRIC REG LINEAR 5V 150MA 8SOIC |
20,553 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | 2 mA | 12 mA | 65dB (120Hz) | - | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
LM2991SX/NOPBIC REG LIN NEG ADJ 1A DDPAK |
1,224 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -26V | -3V | -24V | 1V @ 1A | 1A | 0.7 mA | 5 mA | 60dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
_4040208^C.jpg)
|
LM2991T/NOPBIC REG LIN NEG ADJ 1A TO220-5 |
615 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Negative | Adjustable | 1 | -26V | -3V | -24V | 1V @ 1A | 1A | 0.7 mA | 5 mA | 60dB (1kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
MIC69303YME-TRIC REG LINEAR POS ADJ 3A 8SOIC |
2,945 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 1.63V | 4.5V | 0.5V @ 3A | 3A | 5 mA | 75 mA | - | Enable, Error Flag | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
|
TPS7A1601AQDGNRQ1IC REG LIN POS ADJ 100MA 8MSOP |
11,027 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 60V | 1.2V | 18.5V | 0.265V @ 100mA | 100mA | 5 µA | 60 µA | 50dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-HVSSOP |
|
MIC5239-3.3YM-TRIC REG LINEAR 3.3V 500MA 8SOIC |
7,171 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.35V @ 500mA (Typ) | 500mA | 45 µA | 15 mA | - | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5239YMIC REG LIN POS ADJ 500MA 8SOIC |
1,329 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Adjustable | 1 | 30V | 1.24V | 20V | 0.35V @ 500mA (Typ) | 500mA | 45 µA | 15 mA | - | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
RT9072BGBIC REG LIN POS ADJ 20MA SOT23-5 |
7,073 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 80V | 1.25V | 60V | 0.23V @ 20mA | 20mA | 30 µA | 1.2 mA | 75dB (120Hz) | Shutdown | Current Limit, Thermal Shutdown, Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS7A1601DGNRIC REG LIN POS ADJ 100MA 8HVSSOP |
3,190 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 60V | 1.2V | 18.5V | 0.5V @ 100mA | 100mA | 15 µA | - | 50dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS7A4901DGNTIC REG LIN POS ADJ 150MA 8HVSSOP |
3,023 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 35V | 1.194V | 33V | 0.6V @ 150mA | 150mA | 100 µA | 800 µA | 72dB (120Hz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS7A1650DGNRIC REG LINEAR 5V 100MA 8MSOP PWR |
2,724 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 60V | 5V | - | 0.5V @ 100mA | 100mA | 15 µA | - | 50dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS7A8101DRBTIC REG LINEAR POS ADJ 1A 8SON |
1,850 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 6V | 0.5V @ 1A | 1A | 100 µA | 350 µA | 48dB ~ 38dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SON (3x3) |
|
|
LP38501TSX-ADJ/NOPBIC REG LIN POS ADJ 3A DDPAK |
1,997 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5V | 0.67V @ 3A | 3A | 15 µA | 4 mA | 58dB ~ 56dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

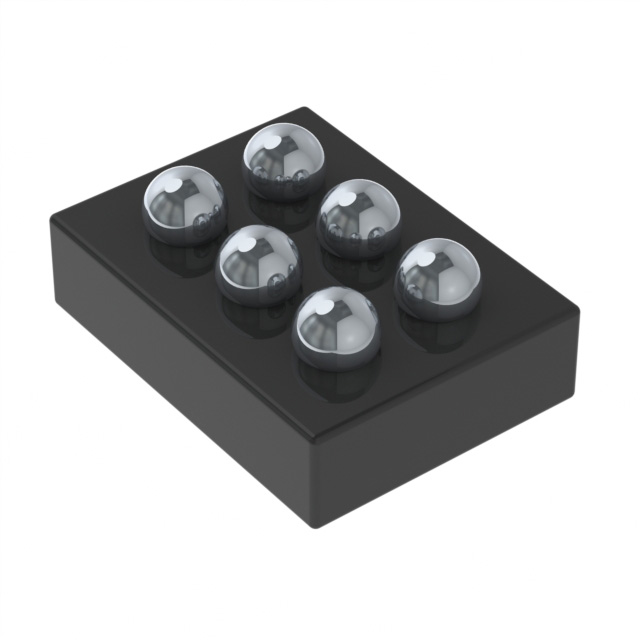

MAX38902CANT+TIC REG LINEAR POS ADJ 500MA 6WLP |
2,100 |
|
Datasheet |
- | 6-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 5.5V | 0.6V | 5.3V | 0.3V @ 500mA | 500mA | 600 µA | - | 70dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WLP (1.22x0.82) |
|
MIC49150YMM-TRIC REG LINEAR POS ADJ 1.5A 8MSOP |
10,224 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.9V | 5V | 0.5V @ 1.5A | 1.5A | - | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
