Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS78425BQWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
9,579 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.32V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
LM78L05ITPX/NOPBIC REG LINEAR 5V 100MA 8USMD |
9,146 |
|
Datasheet |
- | 8-UFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | - | 100mA | 3 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-DSBGA |
|
TLV73315PDQNTIC REG LINEAR 1.5V 300MA 4X2SON |
3,578 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.4V @ 300mA | 300mA | 60 µA | - | 68dB ~ 28dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TPS78412BQWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
5,968 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.32V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS78415QWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
5,837 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.175V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS78401BQWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
2,976 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 1.2V | 5.5V | 0.32V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
TPS78429QDBVRQ1IC REG LINEAR 2.9V 300MA SOT23-5 |
2,957 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.9V | - | 0.115V @ 300mA | 300mA | 30 µA | 43 µA | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
TPS78415QDBVRQ1IC REG LINEAR 1.5V 300MA SOT23-5 |
2,944 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.5V | - | 0.175V @ 300mA | 300mA | 30 µA | 43 µA | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
RP114N121B-TR-FEIC REG LINEAR 1.2V 300MA SOT23-5 |
2,939 |
|
Datasheet |
RP114x | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.2V | - | 0.5V @ 300mA | 300mA | 75 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

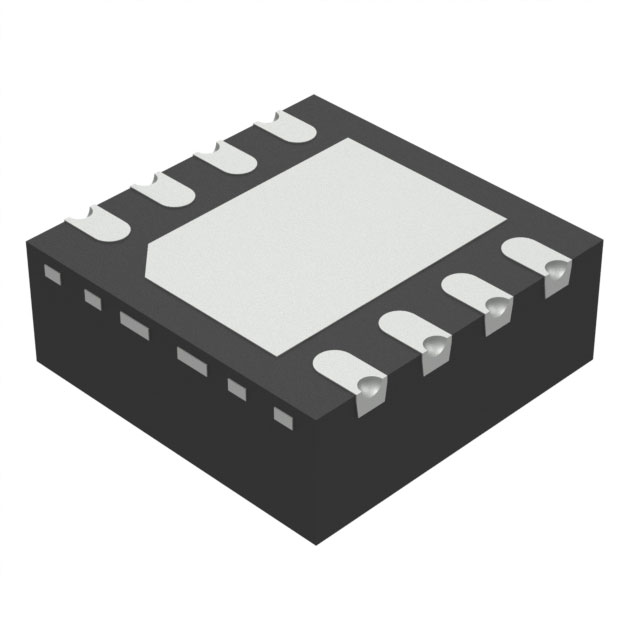

TPS784085BQWDRBRQ1IC REG LINEAR 0.85V 300MA 8SON |
2,900 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 0.85V | - | 0.78V @ 300mA | 300mA | 40 µA | - | 65dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS78418BQWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
2,885 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
RP114N281D-TR-FEIC REG LINEAR 2.8V 300MA SOT23-5 |
2,721 |
|
Datasheet |
RP114x | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.3V @ 300mA | 300mA | 75 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
TPS78408BQWDRBRQ1IC REG LINEAR 0.8V 300MA 8SON |
2,686 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 0.8V | - | 0.78V @ 300mA | 300mA | 40 µA | - | 65dB ~ 30dB (1kHz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
TPS78411QWDRBRQ1AUTOMOTIVE, 300-MA, LOW-IQ, HIGH |
2,467 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.1V | - | 0.775V @ 300mA | 300mA | 40 µA | - | 60dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-SON (3x3) |
|
|
RP114N181B-TR-FEIC REG LINEAR 1.8V 300MA SOT23-5 |
1,840 |
|
Datasheet |
RP114x | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.8V | - | 0.39V @ 300mA | 300mA | 75 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
AP7343D-18FS4-7BIC REG LINEAR 1.8V 300MA 4DFN |
11,387 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 1.8V | - | 0.39V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
|
TLV1117-25IDCYIC REG LIN 2.5V 800MA SOT223-4 |
1,037 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.3V @ 800mA | 800mA | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
AP7365-18YRG-13IC REG LIN 1.8V 600MA SOT89R-3 |
4,978 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.6V @ 600mA | 600mA | 80 µA | - | 65dB (1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-89R-3 |
|
|
TLV1117-25CDCYIC REG LIN 2.5V 800MA SOT223-4 |
16 |
|
Datasheet |
- | TO-261-4, TO-261AA | Bulk | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
AP7343D-28FS4-7BIC REG LINEAR 2.8V 300MA 4DFN |
4,082 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.3V @ 300mA | 300mA | 60 µA | - | 75dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | X2-DFN1010-4 |
