Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE72742DATMA1IC REG LINEAR 5V 300MA TO252-3 |
24,454 |
|
Datasheet |
OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
|
ADP172ACBZ-1.65-R7IC REG LINEAR 1.65V 300MA 4WLCSP |
10,239 |
|
Datasheet |
- | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 1.65V | - | 0.1V @ 300mA | 300mA | 60 µA | 260 nA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
|
ADP172ACBZ-0.9-R7IC REG LINEAR 0.9V 300MA 4WLCSP |
1,365 |
|
Datasheet |
- | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 0.9V | - | - | 300mA | 60 µA | 260 µA | 73dB ~ 47dB (1kHz ~ 100kHz) | Enable, Soft Start | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.95x1.03) |
|
MIC39101-1.8YMIC REG LINEAR 1.8V 1A 8SOIC |
373 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 16V | 1.8V | - | 0.63V @ 1A | 1A | - | - | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
TPS7A3721DRVTIC REG LINEAR 2.1V 1A 6WSON |
473 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | 0.2V @ 1A | 1A | 400 µA | 1.3 mA | 58dB ~ 37dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
NCV5661MN33T2GIC REG LINEAR 3.3V 1A 6DFN |
2,575 |
|
Datasheet |
- | 6-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 9V | 3.3V | - | 1.3V @ 1A | 1A | 3 mA | - | 70dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (3x3.3) |
|
BD80C0AFP-CE2IC REG LINEAR 8V 1A TO252-3 |
1,621 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26.5V | 8V | - | 0.5V @ 500mA | 1A | 2.5 mA | 2.5 mA | 50dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252 |
|
LP2980AIM5-4.7/NOPBIC REG LINEAR 4.7V 50MA SOT23-5 |
742 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 4.7V | - | 0.22V @ 50mA | 50mA | 95 µA | 1.2 mA | 63dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
S-1313A18-M5T1U3IC REG LINEAR 1.8V 200MA SOT23-5 |
2,991 |
|
Datasheet |
S-1313 | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.58V @ 100mA | 200mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

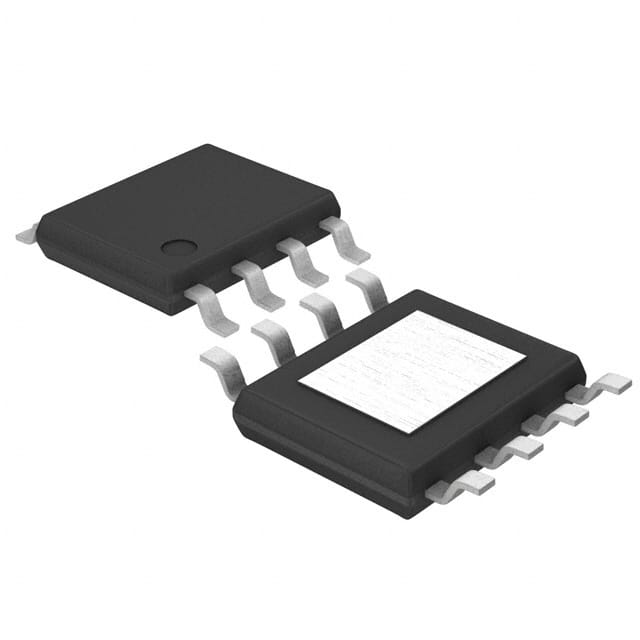

BD450U2EFJ-CE2200MA 5.0V OUTPUT LDO REGULATORS |
1,806 |
|
Datasheet |
BD4xxU2-C | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 42V | 5V | - | 0.35V @ 100mA | 200mA | 90 µA | 150 µA | 65dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-HTSOP-J |
|
LP2966IMM-5050/NOPBIC REG LINEAR 5V 150MA 8VSSOP |
1,713 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 7V | 5V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
ADP160ACBZ-3.3-R7IC REG LINEAR 3.3V 150MA 4WLCSP |
8,416 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.195V @ 150mA | 150mA | 1.25 µA | 65 µA | 60dB ~ 50dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-3.0-R7IC REG LINEAR 3V 150MA 4WLCSP |
7,894 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP160ACBZ-2.1-R7IC REG LINEAR 2.1V 150MA 4WLCSP |
5,990 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.1V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
|
ADP162ACBZ-1.8-R7IC REG LINEAR 1.8V 150MA 4WLCSP |
5,890 |
|
Datasheet |
- | 4-WFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 1.25 µA | 65 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 4-WLCSP (0.96x0.96) |
|
TPS7B6850QPWPRQ1IC REG LINEAR 5V 500MA 28HTSSOP |
3,743 |
|
Datasheet |
- | 28-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.6V @ 500mA | 500mA | 42 µA | 98 µA | 60dB ~ 40dB (100Hz ~ 100kHz) | Enable, Power Good, Watchdog | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 28-HTSSOP |
|
TPS7B6733QPWPRQ1IC REG LIN 3.3V 450MA 20HTSSOP |
3,595 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.3V @ 200mA | 450mA | 25 µA | 35 µA | 60dB ~ 40dB (100Hz ~ 100kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
ADP151ACPZ-1.2-R7IC REG LINEAR 1.2V 200MA 6LFCSP |
3,017 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
|
ADP151ACPZ-2.7-R7IC REG LINEAR 2.7V 200MA 6LFCSP |
2,633 |
|
Datasheet |
- | 6-UDFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | 0.23V @ 200mA | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-LFCSP-UD (2x2) |
|
ADP151AUJZ-2.9-R7IC REG LINEAR 2.9V 200MA TSOT5 |
2,391 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | 0.23V @ 200mA | 200mA | 20 µA | 350 µA | - | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
