Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG7812AIGIC REG LINEAR 12V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7812AIG-883BIC REG LINEAR 12V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
SG7812AT-883BIC REG LINEAR 12V 500MA TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7812AT-DESCIC REG LINEAR 12V 500MA TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|

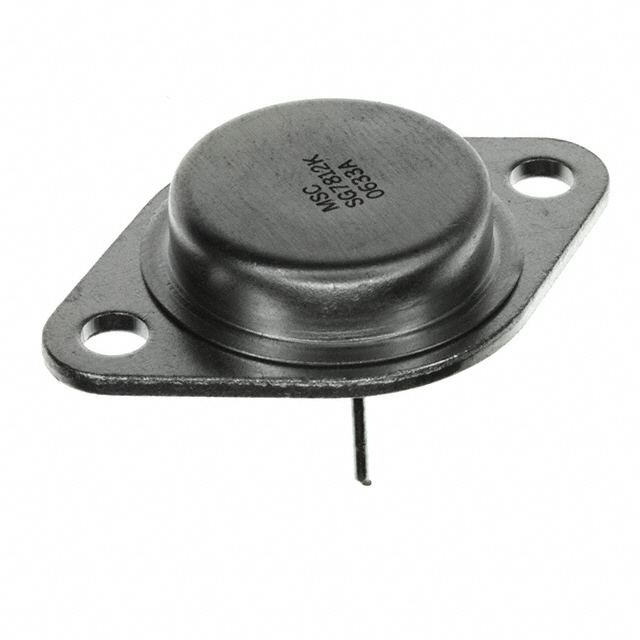

SG7812K-883BIC REG LINEAR 12V 1.5A TO3 |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 1A | 1.5A | 7 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
SG7815AT-883BIC REG LINEAR 15V 1.5A TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 50V | 15V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 60dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7815K-883BIC REG LINEAR 15V 1.5A TO3 |
0 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 1A | 1.5A | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|

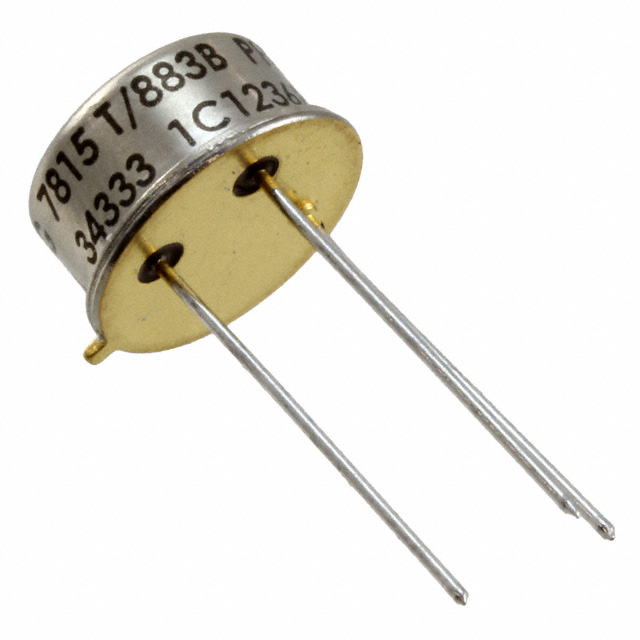

SG7815T-883BIC REG LINEAR 15V 500MA TO39 |
0 |
|
Datasheet |
- | TO-39-3 Lens Top Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 500mA | 500mA | 7 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7905AIGIC REG LINEAR -5V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7905AIG-DESCIC REG LINEAR -5V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
SG7905AT-883BIC REG LINEAR -5V 500MA TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 500mA | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7912AG-DESCIC REG LINEAR -12V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 1A | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7912AIG-883BIC REG LINEAR -12V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7912AIG-DESCIC REG LINEAR -12V 1.5A TO257 |
0 |
|
Datasheet |
- | TO-257-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-257 |
|
|
SG7912AK-883BIC REG LINEAR -12V 1.5A TO3 |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 1A | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
|
SG7912AT-883BIC REG LINEAR -12V 500MA TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 500mA | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7915AK-883BIC REG LINEAR -15V 1.5A TO3 |
0 |
|
Datasheet |
- | TO-204AA | Bulk | Active | Negative | Fixed | 1 | -40V | -15V | - | 2.3V @ 1A | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-3 |
|
|
SG7915AT-883BIC REG LINEAR -15V 1.5A TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
|
SG7915AT-DESCIC REG LINEAR -15V 1.5A TO39 |
0 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7915K-883BIC REG LINEAR -15V 1.5A TO204AD |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
