Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCP4688DSN28T1GIC REG LINEAR 2.8V 150MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.25V | 2.8V | - | 0.28V @ 150mA | 150mA | 100 µA | - | 80dB ~ 65dB (1kHz ~ 100kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
NCV33269DR2GIC REG LIN POS ADJ 800MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.65V | 1.35V @ 800mA | 800mA | - | - | 55dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
NCV85081BDS50GIC REG LINEAR 5V 250MA D2PAK-7 |
0 |
|
- |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.9V @ 150mA | 250mA | 150 µA | - | - | Enable, Reset, Watchdog | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-7 |
|
NCV87722D5S33R4GIC REG LINEAR 3.3V 350MA D2PAK-5 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | D2PAK-5 |
|
NCV87722DT50RKGIC REG LINEAR 5V 350MA DPAK-5 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 5V | - | 0.875V @ 350mA | 350mA | 29 µA | 30 µA | 60dB (100Hz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | DPAK-5 |
|
L4949EP-EIC REG LINEAR 5V 100MA 20SO |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Positive | Fixed | 1 | 28V | 5V | - | 0.5V @ 100mA | 100mA | 300 µA | 5 mA | - | Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 20-SO |
|

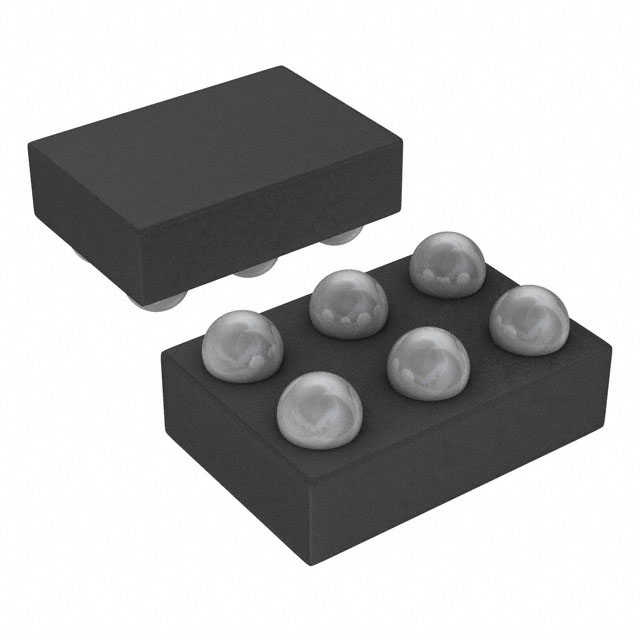

AS1374-BWLT1827IC REG LINEAR 1.8V/2.7V 6WLCSP |
0 |
|
Datasheet |
- | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 1.8V, 2.7V | - | -, 0.15V @ 100mA | 200mA, 200mA | 90 µA | - | 85dB ~ 50dB (1kHz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-WLCSP |
|
MIC94310-PYMT-T5IC REG LINEAR 3V 200MA 4TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 4-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 3V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TDFN (1.2x1.6) |
|
MIC94310-SYMT-T5IC REG LINEAR 3.3V 200MA 4TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 4-UFDFN Exposed Pad | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.1V @ 200mA | 200mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 10MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 4-TDFN (1.2x1.6) |
|

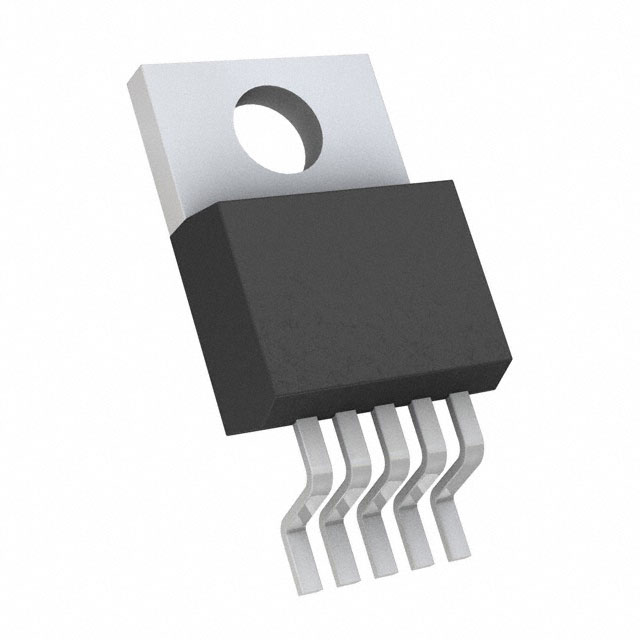

LT1764AET#33PBFIC REG LIN POS ADJ 3A TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 20V | 1.21V | 20V | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 33 |
|
NCV4274ADS33R4GIC REG LINEAR 3.3V 400MA D2PAK |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 1.27V @ 250mA | 400mA | 250 µA | 45 mA | 60dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
IFX21004TNV51AKSA1IC REG LINEAR 5V/15V TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 | Tube | Obsolete | Positive | Fixed | 2 | 40V | 5V, 15V | - | 10V @ 100mA, 6V @ 30mA | 100mA, 30mA | 1 mA | 3.5 mA | 55dB (100Hz), 50dB (100Hz) | - | Over Current, Over Temperature | -40°C ~ 150°C | - | - | Through Hole | PG-TO220-5 |
|

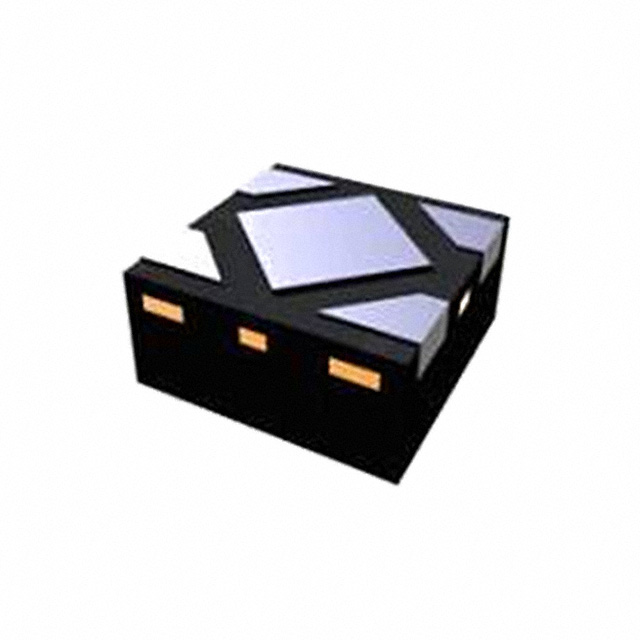

LD6805K/33H,115IC REG LIN 3.3V 150MA DFN1010C-4 |
0 |
|
Datasheet |
- | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.25V @ 150mA | 150mA | 35 µA | 150 µA | 75dB (1kHz) | Enable | Over Current, Transient Voltage | -40°C ~ 85°C | - | - | Surface Mount | DFN1010C-4 |
|
LD6806CX4/12P,315IC REG LINEAR 1.2V 200MA 4WLCSP |
0 |
|
Datasheet |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | 0.1V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
LD6806TD/30H,125IC REG LINEAR 3V 200MA 5TSOP |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6806TD/33H,125IC REG LINEAR 3.3V 200MA 5TSOP |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6806TD/33P,125IC REG LINEAR 3.3V 200MA 5TSOP |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.13V @ 200mA | 200mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|
|
LD6836CX4/18H,315IC REG LINEAR 1.8V 300MA 4WLCSP |
0 |
|
Datasheet |
- | 4-XFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.16V @ 300mA | 300mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
|
LD6836TD/33H,125IC REG LINEAR 3.3V 300MA 5TSOP |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 100 µA | 250 µA | 55dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 5-TSOP |
|

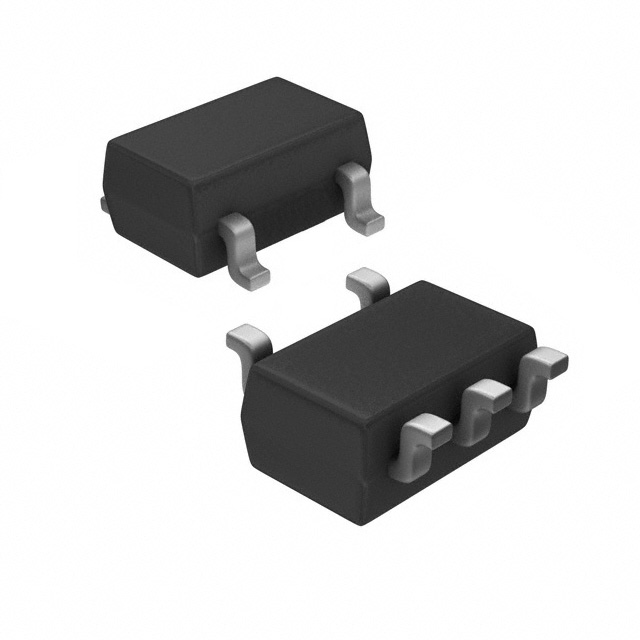

FT531GAIC REG LINEAR 2.8V 250MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.8V | - | 0.12V @ 100mA | 250mA | 36 µA | - | 72dB ~ 60dB (1kHz ~ 10kHz ) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
