Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE4470GSXUMA1IC REG LINEAR POS ADJ 14DSO |
0 |
|
Datasheet |
OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 2 | 45V | 5V, (5V), Tracking | 20V | 0.5V @ 100mA, 0.6V @ 200mA | 180mA, 350mA | 500 µA | 15 mA | 60dB (20Hz ~ 20kHz) | Enable, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
TLE4476DIC REG LINEAR 3.3V/5V TO252-5-11 |
0 |
|
Datasheet |
OPTIREG™ | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 42V | 3.3V, 5V | - | -, 0.7V @ 330mA | 350mA, 430mA | 150 µA | 13 mA | 60dB (20Hz ~ 20kHz), 60dB (20Hz ~ 20kHz) | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity, Short Circuit | -40°C ~ 170°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5-11 |
|
TLE7270GNTMA1IC REG LINEAR 5V 300MA TO263-5-1 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Delay, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-TO263-5-1 |
|
|
TLE7272DIC REG LINEAR 5V 300MA TO252-5 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Inhibit, Reset | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-TO252-5 |
|
|
TLE7273G V50IC REG LINEAR 5V 180MA DSO14 |
0 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 180mA | 180mA | 35 µA | - | 60dB (100Hz) | Inhibit, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | P-DSO-14-8 |
|
TLE7274DNTMA1IC REG LINEAR 5V 300MA TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 25 µA | 35 µA | 60dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-TO252-3 |
|
|
TLE7276DIC REG LIN 5V 300MA TO252-5-11 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-TO252-5-11 |
|
|
TLE7276GIC REG LINEAR 5V 300MA TO263-5-1 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 42V | 5V | - | 0.5V @ 200mA | 300mA | 30 µA | 40 µA | 60dB (100Hz) | Inhibit | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | - | - | Surface Mount | PG-TO263-5-1 |
|
AP1084TL-UIC REG LINEAR POS ADJ 5A TO220-3 |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 12V | 1.25V | 10.6V | 1.4V @ 5A | 5A | 10 mA | - | - | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-3 |
|
AP1115AY35L-13IC REG LINEAR 3.5V 600MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.5V | - | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1115BY18L-13IC REG LINEAR 1.8V 600MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
|
AP1115BY50L-13IC REG LINEAR 5V 600MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.3V @ 600mA | 600mA | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-89-3 |
|
AP1117E18G-13IC REG LINEAR 1.8V 1A SOT223-3 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
AP1117E25G-13IC REG LINEAR 2.5V 1A SOT223-3 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
AP1122EG-13IC REG LINEAR 1.2V 1A SOT223-3 |
0 |
|
- |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 1.2V | - | 1.3V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
|
AP130-35YL-13IC REG LINEAR 3.5V 300MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.5V @ 300mA | 300mA | 100 µA | - | 58dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|

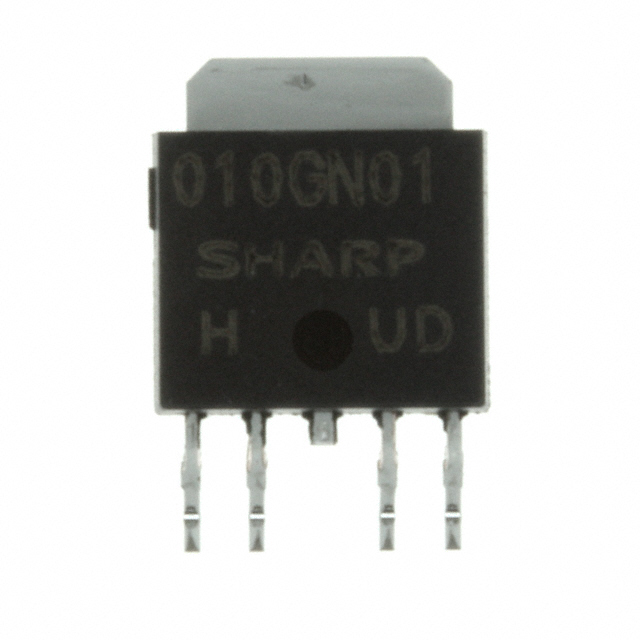

PQ010GN01ZPHIC REG LINEAR 1V 1A SC63 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1V | - | - | 1A | - | - | 60dB ~ 53dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|

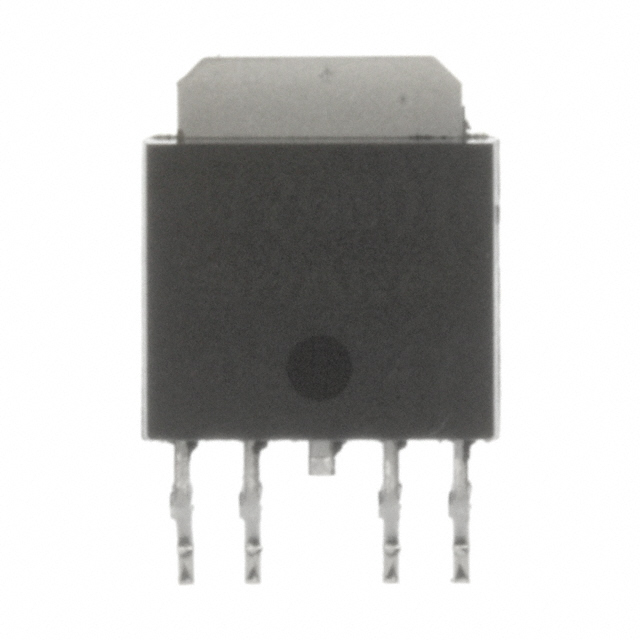

PQ012GN01ZPHIC REG LINEAR 1.2V 1A SC63 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 1A | - | - | 60dB ~ 53dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|

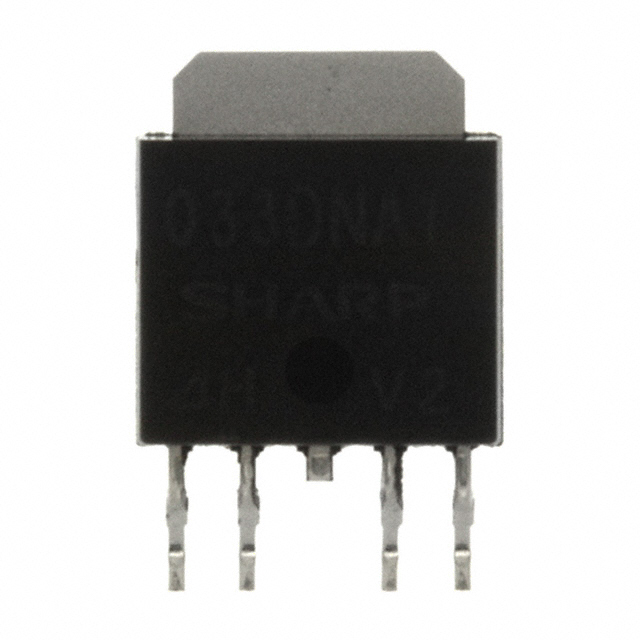

PQ033DNA1ZPHIC REG LINEAR 3.3V 1A SC63 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
|

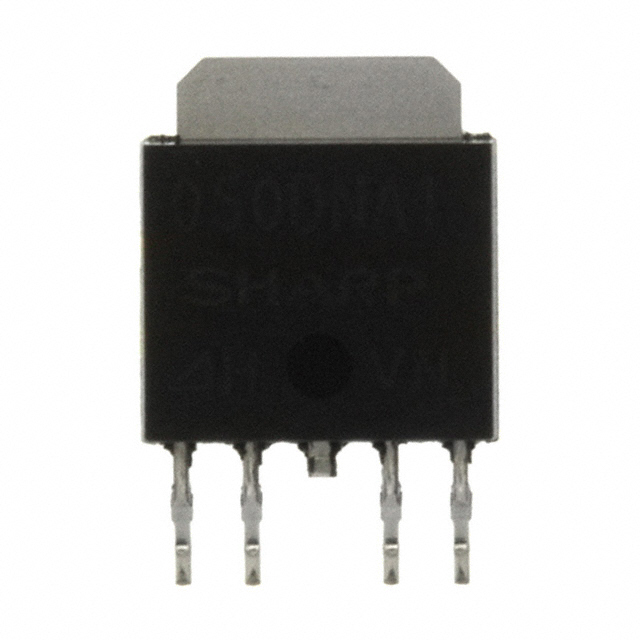

PQ050DNA1ZPHIC REG LINEAR 5V 1A SC63 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 500mA | 1A | 8 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SC-63 |
