Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3015MPQ#TRPBFIC REG LIN NEG ADJ 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -30V | -1.22V | -29.5V | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-12#TRPBFIC REG LINEAR -12V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-15#TRPBFIC REG LINEAR -15V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -15V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-3#TRPBFIC REG LINEAR -3V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-3.3#TRPBFIC REG LINEAR -3.3V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-5#TRPBFIC REG LINEAR -5V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015MPQ-2.5#TRPBFIC REG LINEAR -2.5V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -2.5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
TPS70345MPWPREPIC REG LINEAR 3.3V/1.2V 24HTSSOP |
0 |
|
Datasheet |
- | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 6V | 3.3V, 1.2V | - | 0.26V @ 1A, - | 1A, 2A | 250 µA | - | - | Enable, Power Good, Reset, Sequencing | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -55°C ~ 125°C | - | - | Surface Mount | 24-HTSSOP |
|
|
LT3015MPQ-3#PBFIC REG LINEAR -3V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
MIC29750-3.3WWTIC REG LINEAR 3.3V 7.5A TO247-3 |
0 |
|
Datasheet |
- | TO-247-3 | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 3.3V | - | 0.75V @ 7.5A | 7.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-247-3 |
|

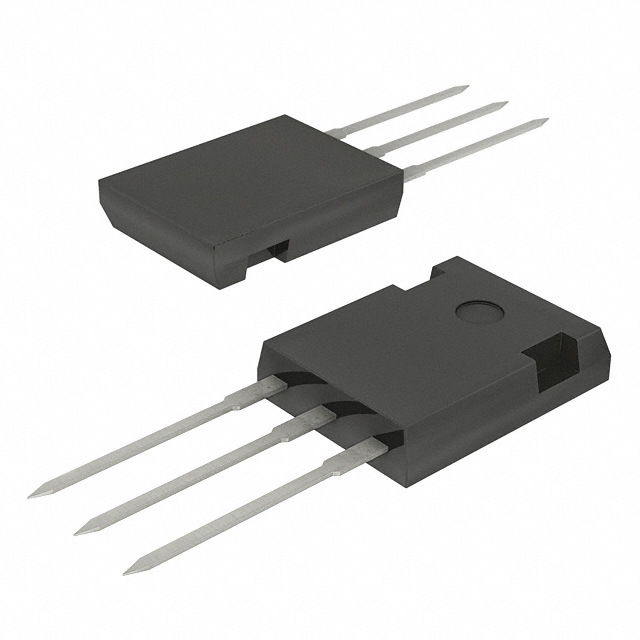

MIC29750-5.0WWTIC REG LINEAR 5V 7.5A TO247-3 |
0 |
|
Datasheet |
- | TO-247-3 | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 5V | - | 0.75V @ 7.5A | 7.5A | - | - | - | - | Over Current, Over Temperature, Reverse Polarity, Transient Voltage | -40°C ~ 125°C | - | - | Through Hole | TO-247-3 |
|
LT3091MPR#TRPBFIC REG LIN NEG ADJ 1.5A 7DDPAK |
0 |
|
Datasheet |
- | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -36V | 0V | -32V | 0.525V @ 1.5A | 1.5A | 50.5 µA | - | 85dB ~ 20dB (120Hz ~ 1MHz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -55°C ~ 150°C | - | - | Surface Mount | DDPAK-7 |
|
LT1084CKIC REG LINEAR LOW DROP 5A TO3 |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TPS77601QPWPREPIC REG LIN POS ADJ 20HTSSOP |
0 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.2V | 5.5V | - | 500mA | 125 µA | - | 60dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
LT1129MPST-3.3#TRPBFIC REG LIN 3.3V 700MA SOT223-3 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 30V | 3.3V | - | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
LT3030MPFE#TRPBFIC REG LINEAR POS ADJ 20TSSOP |
0 |
|
Datasheet |
- | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 2 | 20V | 1.22V | 19.5V | 0.48V @ 250mA, 0.48V @ 750mA | 250mA, 750mA | - | - | 60dB ~ 50dB (120Hz ~ 1MHz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity | -55°C ~ 150°C | - | - | Surface Mount | 20-TSSOP-EP |
|
LT1084MKIC REG LINEAR ADJ 5A TO3 |
0 |
|
Datasheet |
- | TO-204AA, TO-3 | Bulk | Obsolete | - | - | 1 | - | - | - | - | 5A | - | - | - | - | - | -55°C ~ 200°C | - | - | Through Hole | TO-3 |
|
LT1175MPS8#TRPBFIC REG LIN NEG ADJ 500MA 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -20V | -3.8V | -19.3V | 0.7V @ 500mA | 500mA | 80 µA | - | - | Current Limit, Enable | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LT1175MPS8-5#TRPBFIC REG LINEAR -5V 500MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -20V | -5V | - | 0.7V @ 500mA | 500mA | 80 µA | - | 60db ~ 15dB (1kHz ~ 100kHz) | Current Limit, Enable | - | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
UCC284DPTR-ADJIC REG LIN NEG ADJ 500MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Negative | Adjustable | 1 | -15V | -1.25V | -15V | 0.5V @ 500mA | 500mA | 250 µA | - | - | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
