Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3015IMSE-3.3#TRPBFIC REG LINEAR -3.3V 1.5A 12MSOP |
0 |
|
Datasheet |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
|
LT3015IMSE-5#TRPBFIC REG LINEAR -5V 1.5A 12MSOP |
0 |
|
Datasheet |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
|
LT3041ADE#TRPBFIC REG LINEAR POS ADJ 1A 14DFN |
0 |
|
Datasheet |
- | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 20V | 0.2V | 15V | 0.48V @ 1A | 1A | - | 50 mA | 100dB ~ 60dB (120Hz ~ 10MHz) | Current Limit, Enable, Power Good, Soft Start, Tracking | Over Current, Over Temperature, Reverse Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-DFN (4x3) |
|
LT3015EQ-12#TRPBFIC REG LINEAR -12V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-15#TRPBFIC REG LINEAR -15V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -15V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 50dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-2.5#TRPBFIC REG LINEAR -2.5V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -2.5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-3#TRPBFIC REG LINEAR -3V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-3.3#TRPBFIC REG LINEAR -3.3V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
|
LT3015EQ-5#TRPBFIC REG LINEAR -5V 1.5A 5DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -30V | -5V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | DDPAK-5 |
|
TPS75918KTTRG3IC REG LINEAR 1.8V 7.5A DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 7.5A | 200 µA | - | 58dB (100Hz) | Enable, Power Good | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
ADP7159ACPZ-01-R2IC REG LINEAR POS ADJ 2A 10LFCSP |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 5.5V | 1.2V | 1.8V | 0.28V @ 2A | 2A | 8 mA | 14 mA | 55dB ~ 40dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP-WD (3x3) |
|
LT1963ET-1.5#30PBFIC REG LIN 1.5V 1.5A TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|

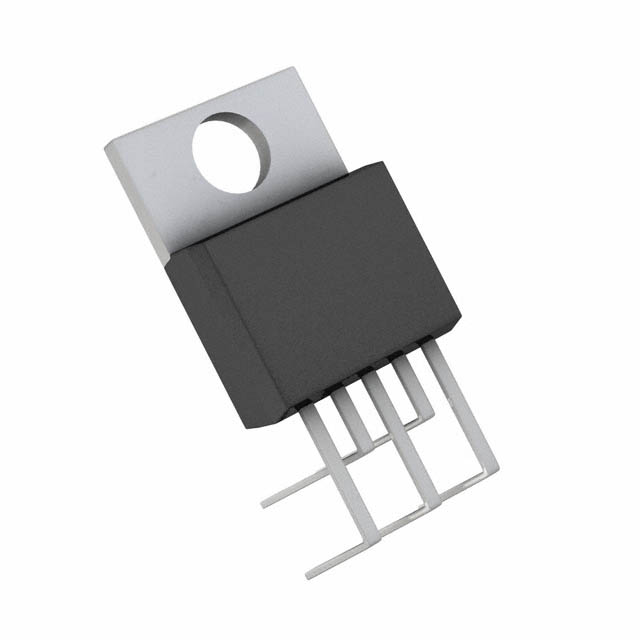

LT1963ET-1.8#30PBFIC REG LIN 1.8V 1.5A TO220-5 |
0 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Active | Positive | Fixed | 1 | 20V | 1.8V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 30 |
|
LP3872ES-2.5IC REG LINEAR 2.5V 1.5A DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
|
TPS72501KTTRG3IC REG LIN POS ADJ 1A DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 6V | 1.22V | 5.5V | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
LP3965EMP-3.3IC REG LINEAR 3.3V 1.5A SOT223-5 |
0 |
|
Datasheet |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | 0.55V @ 1.5A | 1.5A | 9 mA | 15 mA | - | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
UCC284DPTR-ADJG4IC REG LIN NEG ADJ 500MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Negative | Adjustable | 1 | -15V | -1.25V | -15V | 0.5V @ 500mA | 500mA | 250 µA | - | - | Enable | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
LM2990S-15IC REG LIN -15V 1.8A DDPAK |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Negative | Fixed | 1 | -26V | -15V | - | 1V @ 1A | 1.8A | 1 mA | 5 mA | 52dB (1kHz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
ADP3335ARMZ-1.8-RLIC REG LINEAR 1.8V 500MA 8MSOP |
0 |
|
Datasheet |
anyCAP® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 1.8V | - | 0.37V @ 500mA | 500mA | 110 µA | 10 mA | - | Shutdown | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LT3081IFE#TRPBFIC REG LIN POS ADJ 1.5A 16TSSOP |
0 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 36V | 0V | 34.5V | 1.5V @ 1.5A | 1.5A | 50 µA | 5 mA | 90dB ~ 20dB (120Hz ~ 1MHz) | Current Limit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP-EP |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
