Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX8556ETE/V+TIC REG LINEAR POS ADJ 4A 16TQFN |
0 |
|
Datasheet |
- | 16-WQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 3.6V | 0.5V | 3.4V | 0.2V @ 4A | 4A | 1.6 mA | - | - | Enable, Power Good | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 16-TQFN (5x5) |
|
EZ1084CM-1.5TRTIC REG LINEAR 1.5V 5A TO263 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.35V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 |
|
LMS1585AIS-1.5IC REG LIN 1.5V 5A DDPAK/TO263-3 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.4V @ 5A | 5A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
REG103GA-5/2K5G4IC REG LINEAR 5V 500MA SOT223-6 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 0.28V @ 500mA | 500mA | 0.7 mA | 1.3 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
BA3259HFP-TRIC REG LIN POS ADJ 1A/1A HRP-5 |
0 |
|
Datasheet |
- | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable (Fixed) | 2 | 14V | 0.8V (3.3V) | 3.3V | 1.3V @ 1A, 1.3V @ 1A | 1A, 1A | 3 mA | 5 mA | 52dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 85°C | - | - | Surface Mount | HRP-5 |
|
LM317AMDTXIC REG LIN POS ADJ 1.5A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
MAX5024SASA/V+TIC REG LIN POS ADJ 150MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 65V | 2.5V (3.3V) | 11V | 1.5V @ 150mA | 150mA | 140 µA | - | 54dB (100Hz) | Enable, Hold, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
REG104GA-A/2K5G4IC REG LINEAR POS ADJ 1A SOT223 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 15V | 1.295V | 5.5V | 0.48V @ 1A | 1A | 0.7 mA | 1.8 mA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-6 |
|
BA05SFP-E2IC REG LINEAR 5V 1A TO252-5 |
0 |
|
- |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 25V | 5V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
TPS76701QPWPG4IC REG LIN POS ADJ 1A 20HTSSOP |
0 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Adjustable | 1 | 10V | 1.5V | 5.5V | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76725QPWPG4IC REG LINEAR 2.5V 1A 20HTSSOP |
0 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 2.5V | - | - | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76730QPWPG4IC REG LINEAR 3V 1A 20HTSSOP |
0 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3V | - | 0.68V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|
|
TPS76733QPWPG4IC REG LINEAR 3.3V 1A 20HTSSOP |
0 |
|
Datasheet |
- | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Positive | Fixed | 1 | 10V | 3.3V | - | 0.58V @ 1A | 1A | 125 µA | - | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 20-HTSSOP |
|

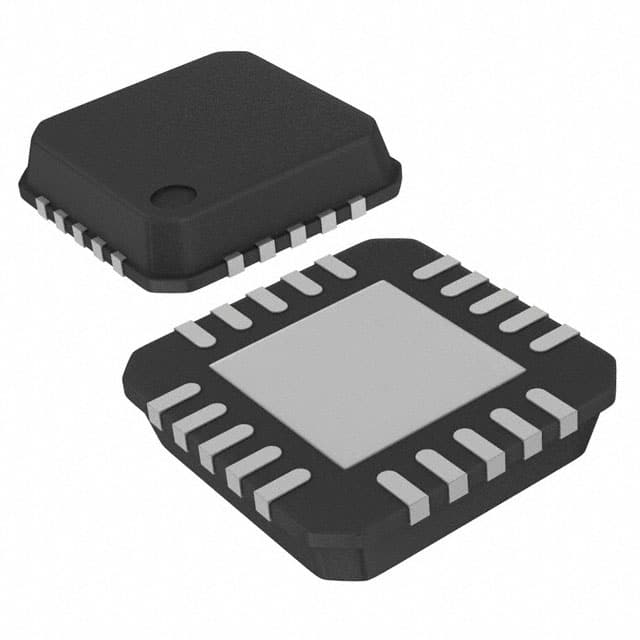

TPS7A5301WQRTKRQ1IC REG LINEAR POS ADJ 3A 20QFN |
0 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 0.8V | 5.15V | 0.515V @ 3A | 3A | - | - | 42dB ~ 25dB (10kHz ~ 500kHz) | Enable | Over Temperature, Reverse Polarity | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 20-QFN (4x4) |
|
S-19315AAFA-U5T1U7IC REG LINEAR 1V 40MA SOT89-5 |
0 |
|
Datasheet |
S-19315 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 1V | - | 2.38V @ 30mA | 40mA | 4.3 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19316AAFA-U5T1U7IC REG LINEAR 3.3V 40MA SOT89-5 |
0 |
|
Datasheet |
S-19316 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 30mA | 40mA | 4.7 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19316BAHA-U5T1U7IC REG LINEAR 5.3V 40MA SOT89-5 |
0 |
|
Datasheet |
S-19316 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5.3V | - | 0.45V @ 30mA | 40mA | 5 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19316AABA-U5T1U7IC REG LINEAR 5V 40MA SOT89-5 |
0 |
|
Datasheet |
S-19316 | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.45V @ 30mA | 40mA | 4.7 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
S-19316AACA-S8T1U7IC REG LINEAR 3.3V 40MA 8HTMSOP |
0 |
|
Datasheet |
S-19316 | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 30mA | 40mA | 4.7 µA | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HTMSOP |
|
|
S-19315AABA-S8T1U7IC REG LINEAR 3.3V 40MA 8HTMSOP |
0 |
|
Datasheet |
S-19315 | 8-VSSOP, 8-MSOP (0.110", 2.80mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.6V @ 30mA | 40mA | 4.3 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HTMSOP |
