Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP3891ES-1.8/NOPBIC REG LINEAR 1.8V 800MA DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.4V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
BD3572HFP-TRIC REG LIN POS ADJ 500MA HRP-5 |
0 |
|
Datasheet |
- | HRP-5 (5 Leads + Tab) | Tape & Reel (TR) | Not For New Designs | Positive | Adjustable | 1 | 36V | 2.8V | 12V | 0.48V @ 200mA | 500mA | 30 µA | 50 µA | 55dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | HRP-5 |
|
LM317AMDTIC REG LIN POS ADJ 1.5A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 1.25V | 37V | - | 1.5A | 10 mA | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
LM2936DTX-3.3IC REG LINEAR 3.3V 50MA TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 3.3V | - | 0.4V @ 50mA | 50mA | 15 µA | 2.5 mA | 60dB (120Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
LP3879MRX-1.2IC REG LIN 1.2V 800MA 8SO PWRPAD |
0 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
LP2966IMM-1833IC REG LIN 1.8/3.3V 150MA 8VSSOP |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 7V | 1.8V, 3.3V | - | 0.27V @ 150mA | 150mA | 300 µA | 600 µA | 60dB ~ 40dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
LP2986ILD-3.3IC REG LINEAR 3.3V 200MA 8WSON |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.35V @ 200mA | 200mA | 120 µA | 3.7 mA | 65dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|
|
LP3879SD-1.2IC REG LINEAR 1.2V 800MA 8WSON |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | - | 800mA | 1.4 mA | 2.2 mA | 60dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 8-WSON (4x4) |
|

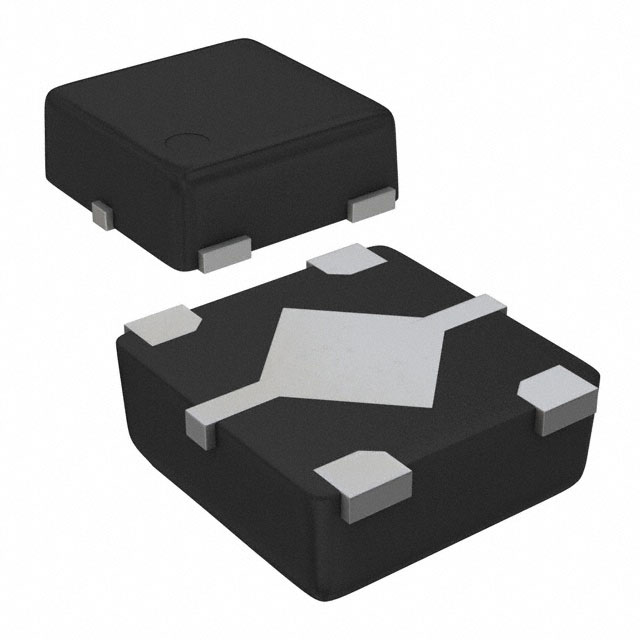

S-1313D13-A4T1U3IC REG LINEAR 1.3V 175MA HSNT4-A |
0 |
|
Datasheet |
S-1313 | 4-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.3V | - | 1.11V @ 100mA | 175mA | 1.35 µA | - | - | Enable | Overcurrent, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-4-A |
|
CS8182YDPS5GIC REG LIN POS ADJ 200MA D2PAK-5 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Adjustable | 1 | 45V | Tracking | - | 0.6V @ 200mA | 200mA | 55 µA | 25 mA | 60dB (120Hz) | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-5 |
|
CS5203A-2GT3IC REG LINEAR 1.5V 3A TO220AB |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 17V | 1.5V | - | 1.15V @ 3A | 3A | 10 mA | - | 78dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Through Hole | TO-220-3 |
|
|
CS5203A-3GT3IC REG LINEAR 3.3V 3A TO220AB |
0 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 17V | 3.3V | - | 1.15V @ 3A | 3A | 10 mA | - | 78dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Through Hole | TO-220-3 |
|
LP3891EMR-1.8IC REG LIN 1.8V 800MA 8SO PWRPAD |
0 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.43V @ 800mA | 800mA | 30 µA | 8 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
LM2940IMP-8.0/NOPBIC REG LINEAR 8V 1A SOT223-4 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 26V | 8V | - | 1V @ 1A | 1A | 10 mA | 15 mA | 66dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-4 |
|
AP1086D33L-13IC REG LINEAR 3.3V 1.5A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.4V @ 1.5A | 1.5A | 10 mA | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
AP1118S12L-13IC REG LINEAR 12V 1A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 12V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
AP1118S15L-13IC REG LINEAR 1.5V 1A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
AP1118S25L-13IC REG LINEAR 2.5V 1A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
AP1118S33L-13IC REG LINEAR 3.3V 1A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
AP1118S50L-13IC REG LINEAR 5V 1A 8SOP |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
