Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS72515DCQRG4IC REG LINEAR 1.5V 1A SOT223-6 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.5V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72518DCQRG4IC REG LINEAR 1.8V 1A SOT223-6 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.8V | - | 0.32V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS72525DCQRG4IC REG LINEAR 2.5V 1A SOT223-6 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6V | 2.5V | - | 0.28V @ 1A | 1A | 225 µA | 325 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
|
TPS726126DCQRG4IC REG LINEAR 1.26V 1A SOT223-6 |
0 |
|
Datasheet |
- | SOT-223-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 6V | 1.26V | - | 0.32V @ 1A | 1A | 120 µA | 300 µA | 60dB (1kHz) | Enable, Reset | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-6 |
|
MAX8865TEUA+TIC REG LIN POS ADJ 100MA 8UMAX |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.25V (3.15V) | 5.5V | 0.12V @ 50mA, 0.12V @ 50mA | 100mA | 270 µA | - | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX8866TEUA+TIC REG LIN POS ADJ 100MA 8UMAX |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 2 | 5.5V | 1.25V (3.15V) | 5.5V | 0.12V @ 50mA, 0.12V @ 50mA | 100mA | 270 µA | - | - | Enable | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
MAX16910DASA8/V+TIC REG LIN POS ADJ 200MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MAX16910EASA8/V+TIC REG LIN POS ADJ 200MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
|
MAX16910EASA9/V+TIC REG LIN POS ADJ 200MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
MAX16910EATA8/V+TIC REG LIN POS ADJ 200MA 8TDFN |
0 |
|
Datasheet |
- | 8-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 30V | 1.5V (3.3V, 5V) | 11V | 0.6V @ 200mA | 200mA | 30 µA | - | 60dB (100Hz) | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TDFN (3x3) |
|
MIC5306-2.5YD5IC REG LIN 2.5V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 150mA | 150mA | 25 µA | - | 62dB ~ 35dB (10Hz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TSOT-23-5 |
|

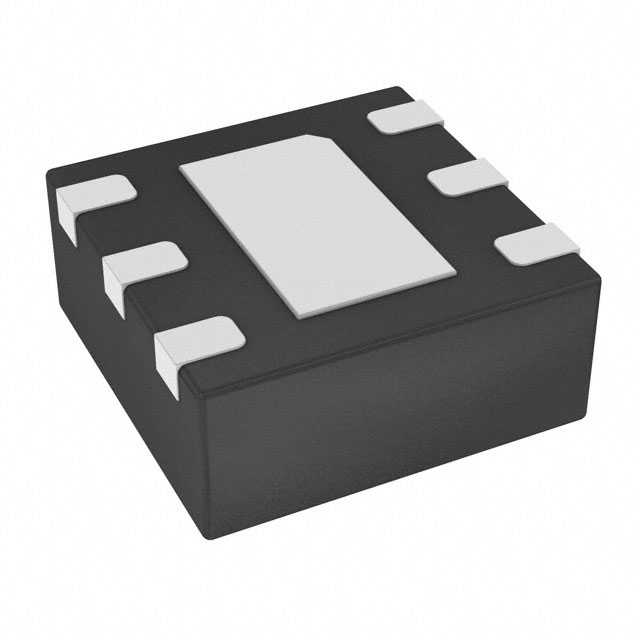

MAQ5300-3.0YML-TRVAOIC REG LINEAR 3V 300MA 6DFN |
0 |
|
Datasheet |
- | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MAQ5300-1.8YML-TRVAOIC REG LINEAR 1.8V 300MA 6DFN |
0 |
|
Datasheet |
- | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-2.85YML-TRVAOIC REG LINEAR 2.85V 300MA 6DFN |
0 |
|
Datasheet |
- | 6-VDFN Exposed Pad, 6-MLF® | Cut Tape (CT) | Active | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-3.3YML-TRVAOIC REG LINEAR 3.3V 300MA 6DFN |
0 |
|
Datasheet |
- | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
REG1118-2.85IC REG LIN 2.85V 800MA SOT223-4 |
0 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tube | Active | Positive | Fixed | 1 | 6V | 2.85V | - | 1.3V @ 800mA | 800mA | 7 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | SOT-223-4 |
|
LP3871ES-5.0/NOPBIC REG LIN 5V 800MA DDPAK/TO263 |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Obsolete | Positive | Fixed | 1 | 7V | 5V | - | 0.35V @ 800mA | 800mA | 5 mA | 15 mA | 73dB ~ 57dB (120Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
MIC5208-3.3YMMIC REG LINEAR 3.3V/3.3V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.3YMM-TRIC REG LINEAR 3.3V/3.3V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 16V | 3.3V, 3.3V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
MIC5208-3.8YMMIC REG LINEAR 3.8V/3.8V 8MSOP |
0 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 2 | 16V | 3.8V, 3.8V | - | 0.5V @ 50mA, 0.5V @ 50mA | 50mA, 50mA | 750 µA | 1.2 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
