Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZ1588CM-3.3TRTIC REG LINEAR 3.3V 2A TO263 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 3.3V | - | - | 2A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263 |
|
EZ1583CMTRTIC REG LIN POS ADJ 2.5A TO263-5 |
0 |
|
- |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.3V | 5.7V | 0.6V @ 2.5A | 2.5A | 10 mA | - | 80dB (120Hz) | - | Current Limit, Thermal Shutdown | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
LP38690DT-3.3IC REG LINEAR 3.3V 1A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 10V | 3.3V | - | 1V @ 1A | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
MAX8860EUA27+TIC REG LIN POS ADJ 300MA 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 1.25V (2.77V) | 6.5V | 0.155V @ 300mA (Typ) | 300mA | 270 µA | - | - | Enable, Fault Output | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX8860EUA28+TIC REG LIN POS ADJ 300MA 8UMAX |
0 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Positive | Adjustable (Fixed) | 1 | 6.5V | 1.25V (2.82V) | 6.5V | 0.155V @ 300mA (Typ) | 300mA | 270 µA | - | - | Enable, Fault Output | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 8-uMAX/uSOP |
|
L149HIC REG LINEAR 4A 5PENTAWATT |
0 |
|
- |
- | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | Tube | Obsolete | - | - | 1 | 20V | - | - | - | 4A | 400 µA | - | - | Enable | Over Temperature, Short Circuit | - | - | - | Through Hole | 5-PENTAWATT |
|
L149VIC REG LINEAR 4A 5PENTAWATT |
0 |
|
Datasheet |
- | Pentawatt-5 (Vertical, Bent and Staggered Leads) | Tube | Obsolete | - | - | 1 | 20V | - | - | - | 4A | 400 µA | - | - | Enable | Over Temperature, Short Circuit | - | - | - | Through Hole | 5-PENTAWATT |
|
|
PQ7RV4IC REG LIN POS ADJ 4.6A TO220-4 |
0 |
|
Datasheet |
- | TO-220-4 | Tube | Obsolete | Positive | Adjustable | 1 | 10V | 1.5V | 7V | 1V @ 4.6A | 4.6A | - | - | 55dB (120Hz) | - | Over Current, Over Temperature | -20°C ~ 80°C | - | - | Through Hole | TO-220-4 |
|
MC7815CD2TR4IC REG LINEAR 15V 1A D2PAK |
0 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A (Typ) | 1A | 6.5 mA | - | 58dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
IFX1963TEVATMA1IC REG LIN POS ADJ 1.5A TO252-5 |
0 |
|
Datasheet |
- | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 20V | 1.21V | 19.45V | 0.55V @ 1.5A | 1.5A | 1.5 mA | 130 mA | 67dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | PG-TO252-5-13 |
|
TLE4264GHTSA1IC REG LINEAR 5V 100MA SOT223-4 |
0 |
|
Datasheet |
OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | 15 mA | 54dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
TLE4264GHTMA1IC REG LINEAR 5V 100MA SOT223-4 |
0 |
|
Datasheet |
OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 100mA | 400 µA | 15 mA | 54dB (100Hz) | - | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
LP38852MR-ADJIC REG LIN POS ADJ 1.5A 8SO |
0 |
|
Datasheet |
- | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.8V | 1.8V | 0.18V @ 1.5A | 1.5A | 300 µA | 9 mA | 80dB ~ 65dB (120Hz ~ 1kHz) | Enable, Soft Start | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SO PowerPad |
|
L4938ND013TRIC REG LINEAR POS ADJ 20SO |
0 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 2 | 25V | 5V, Tracking | - | 0.4V @ 50mA, 0.6V @ 500mA | 50mA, 500mA | - | - | - | Enable, Reset | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 20-SO |
|
LM3940ISX-3.3IC REG LIN 3.3V 1A DDPAK/TO263-3 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 3.3V | - | 0.2V @ 100mA | 1A | - | - | - | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
LMS1587CS-1.5IC REG LIN 1.5V 3A DDPAK/TO263-3 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Obsolete | Positive | Fixed | 1 | 13V | 1.5V | - | 1.3V @ 3A | 3A | 7 mA | 13 mA | 60 ~ 72 dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|

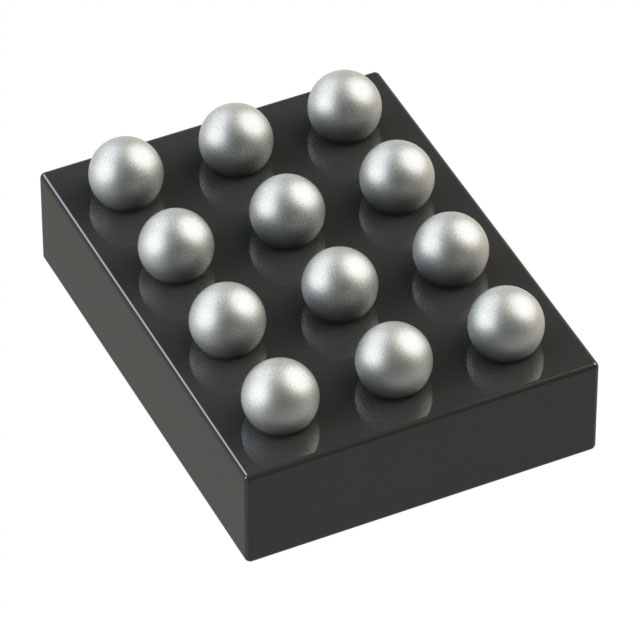

MAX38914AANC+TMAX38914AANC+T |
0 |
|
Datasheet |
- | 12-XFBGA, WLBGA | Tape & Reel (TR) | Active | Positive | Programmable | 1 | 5.5V | 2V, 2.3V | - | 0.3V @ 1A | 1A | 2 mA | - | 75dB ~ 50dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-WLP (1.93x1.34) |
|
|
TLE4266GHTMA1IC REG LINEAR 5V 120MA SOT223-4 |
0 |
|
Datasheet |
OPTIREG™ | TO-261-4, TO-261AA | Tape & Reel (TR) | Last Time Buy | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 120mA | 400 µA | 15 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | PG-SOT223-4 |
|
REG101UA-2.8/2K5G4IC REG LINEAR 2.8V 100MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 10V | 2.8V | - | 0.13V @ 100mA | 100mA | 500 µA | 650 µA | 65dB (120Hz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 8-SOIC |
|
MAX8878EZK18+TIC REG LIN 1.8V 150MA TSOT23-5 |
0 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.165V @ 150mA (Typ) | 150mA | 180 µA | 100 µA | - | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
