Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-19506AY1A-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 1.2V @ 500mA | 500mA | - | - | 65dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
S-19509BFKA-BCT1U4LINEAR IC |
0 |
|
Datasheet |
S-19509 | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | 18 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
|
S-19507AFJA-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19507 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
S-19506AFJA-E8T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19506AY2A-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 1.2V @ 500mA | 500mA | - | - | 65dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19507AFJA-E8T1U4LINEAR IC |
0 |
|
Datasheet |
S-19507 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19506AFPA-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19509AFJA-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19509 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | 18 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19509AFKA-E8T1U4LINEAR IC |
0 |
|
Datasheet |
S-19509 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | 18 µA | - | 60dB (100Hz) | Enable, Reset Out, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19506AFPA-E8T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19506AFKA-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
|
S-19506AY2A-E8T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 1.2V @ 500mA | 500mA | - | - | 65dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-HSOPA |
|
|
S-19506AFJA-V9T1U4LINEAR IC |
0 |
|
Datasheet |
S-19506 | TO-252-9, DPAK (8 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 1V @ 500mA | 500mA | - | - | 60dB (100Hz) | Delay, Reset, Watchdog | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-252-9S |
|
LP38842SX-0.8/NOPBIC REG LINEAR 0.8V 1.5A DDPAK |
0 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 0.8V | - | 0.315V @ 1.5A | 1.5A | 30 µA | 40 mA | 80dB ~ 58dB (120Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-5) |
|
S-19212DF0A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212DxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 15V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 30dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|

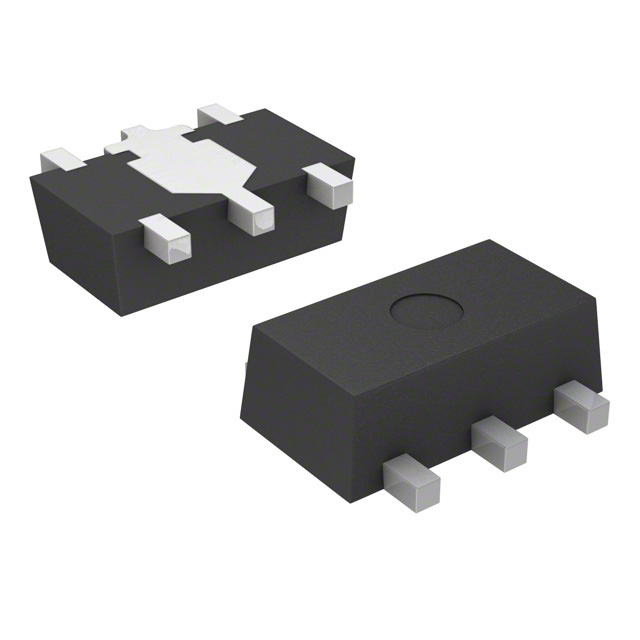

S-19212B25A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212BxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 2.5V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 45dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19212B30A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212BxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 45dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19212B60A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212BxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 6V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 40dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19212B33A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212BxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 3.3V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 45dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
|
|
S-19212DC5A-U5T1ULINEAR IC |
0 |
|
Datasheet |
S-19212DxxA | SOT-89-5/6 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 12.5V | - | 0.8V @ 250mA | 250mA | 8.5 µA | - | 30dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-89-5 |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
