Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-13A1D34-A6T1U3IC REG LINEAR 3.4V 1A HSNT-6A |
0 |
|
Datasheet |
S-13A1 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.4V | - | 0.1V @ 300mA | 1A | 1 µA | 90 µA | 60dB (1kHz) | Enable | Inrush Current Limit, Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|
|
S-13A1D35-A6T1U3IC REG LINEAR 3.5V 1A HSNT-6A |
0 |
|
Datasheet |
S-13A1 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.5V | - | 0.1V @ 300mA | 1A | 1 µA | 90 µA | 60dB (1kHz) | Enable | Inrush Current Limit, Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | HSNT-6A |
|

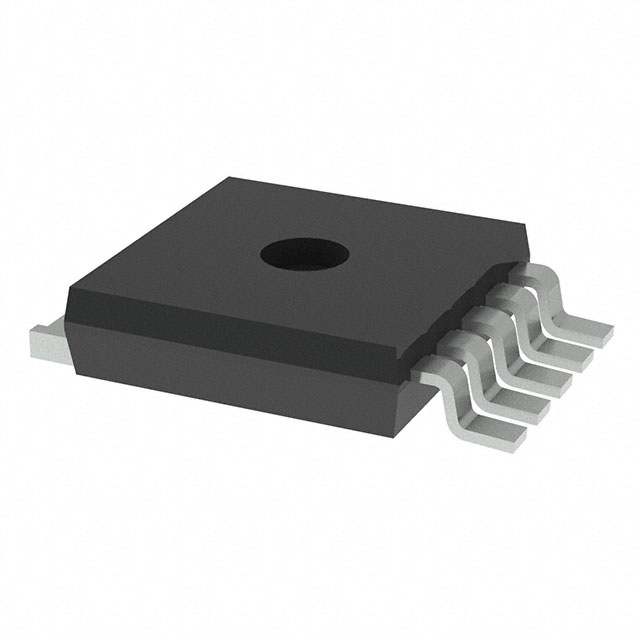

NJW4106DL5T1-TE1HIGH VOLTAGE IO = 500 MA ADJUSTA |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 2.5V | 16V | 1V @ 500mA | 500mA | 115 µA | - | 53dB (1kHz) | Current Limit, Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | TO-252-5 |
|
|
NJW4105DL5-33AT1-TE1HIGH VOLTAGE IO=500MA LDO REGULA |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.7V @ 500mA | 500mA | 105 µA | - | 56dB (1kHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C | - | - | Surface Mount | TO-252-5 |
|
LM2940C-12 MWCIC REG LINEAR 12V 1A WAFERSALE |
0 |
|
Datasheet |
- | Die | Bulk | Obsolete | Positive | Fixed | 1 | 26V | 12V | - | 1V @ 1A | 1A | 15 mA | 60 mA | - | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | Wafersale |
|
LP2950ACZ-3.0RAIC REG LINEAR 3V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
LP2950ACZ-3.3RAIC REG LINEAR 3.3V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
LP2950ACZ-5.0RAIC REG LINEAR 5V 100MA TO92-3 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | 0.45V @ 100mA | 100mA | 120 µA | 12 mA | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|

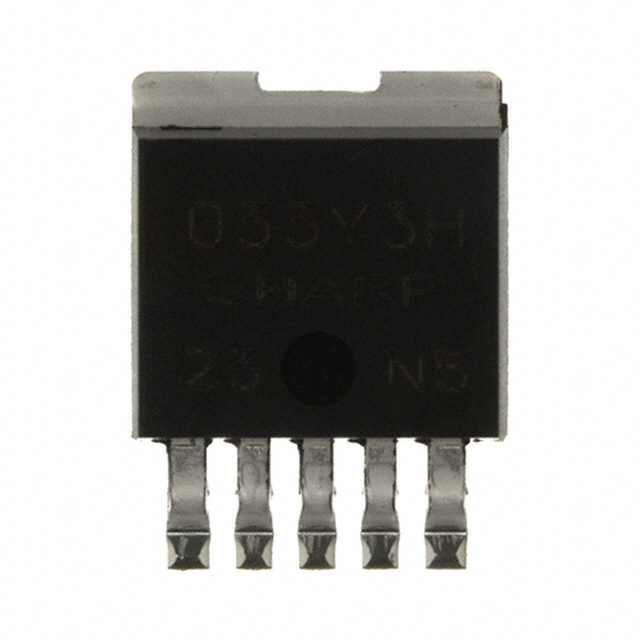

PQ033Y3H3ZZIC REG LINEAR 3.3V 3.5A SC63 |
1 |
|
Datasheet |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PQ1R33J0000HIC REG LIN 3.3V 150MA SOT23L-6 |
0 |
|
Datasheet |
- | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3.3V | - | 0.4V @ 150mA | 150mA | 350 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
|
PQ1R30J0000HIC REG LINEAR 3V 150MA SOT23L-6 |
0 |
|
Datasheet |
- | SOT-23L-6 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 3V | - | 0.4V @ 150mA | 150mA | 350 µA | - | 55dB (400Hz) | Enable | Over Current, Over Temperature | -30°C ~ 80°C | - | - | Surface Mount | SOT-23L-6 |
|
LD2982AM18RIC REG LINEAR 1.8V 50MA SOT23-5 |
0 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 16V | 1.8V | - | 0.225V @ 50mA | 50mA | 150 µA | 1.2 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCP1117DT12RKGIC REG LINEAR 12V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 1.2V @ 800mA | 1A | 10 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
MIC5264-JGYML-TRIC REG LINEAR 1.8V/2.5V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.5V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-KGYML-TRIC REG LINEAR 1.8V/2.6V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.6V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-MGYML-TRIC REG LINEAR 1.8V/2.8V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 1.8V, 2.8V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-MJYML-TRIC REG LINEAR 2.5V/2.8V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.5V, 2.8V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-MKYML-TRIC REG LINEAR 2.6V/2.8V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.6V, 2.8V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-MMYML-TRIC REG LINEAR 2.8V/2.8V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.8V, 2.8V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC5264-NNYML-TRIC REG LINEAR 2.85V/2.85V 10MLF |
0 |
|
Datasheet |
- | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 2.85V, 2.85V | - | 0.5V @ 150mA, 0.5V @ 150mA | 150mA, 150mA | 2 µA | 150 µA | 64dB ~ 62dB (1kHz ~ 100Hz) | Enable | Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
