Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC94355-GYMT-T5IC REG LINEAR 1.8V 500MA 6TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 6-UFDFN Exposed Pad | Cut Tape (CT) | Active | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC94345-MYMT-T5IC REG LINEAR 2.8V 500MA 6TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 2.8V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC94345-SYMT-T5IC REG LINEAR 3.3V 500MA 6TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC94355-4YMT-T5IC REG LINEAR 1.2V 500MA 6TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.2V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
|
MIC94355-FYMT-T5IC REG LINEAR 1.5V 500MA 6TDFN |
0 |
|
Datasheet |
Ripple Blocker™ | 6-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 3.6V | 1.5V | - | 0.2V @ 500mA | 500mA | 250 µA | - | 85dB ~ 50dB (100Hz ~ 5MHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TDFN (1.6x1.6) |
|
TS9011KCY RMGIC REG LINEAR 2.5V 250MA SOT89 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 12V | 2.5V | - | 0.7V @ 160mA | 250mA | 5 µA | - | 30dB (100kHz) | Current Limit, Reset | Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89 |
|
AP7348D-1828RS4-7IC REG LIN 1.8V/2.8V 8DFN T&R |
0 |
|
Datasheet |
- | 8-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 4 | 5.25V | 1.8V, 1.8V, 2.8V, 2.8V | - | 0.48V @ 300mA, 0.48V @ 300mA, 0.34V @ 300mA, 0.34V @ 300mA | 300mA, 300mA, 300mA, 300mA | 280 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | X1-DFN1612-8 (Type B) |
|
NJW4184DL3-08A-TE2IC REG LINEAR 8V 300MA TO252-5 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 8V | - | 0.1V @ 100mA | 300mA | 12 µA | - | 33dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
|
NJW4184DL3-15A-TE2IC REG LINEAR 15V 300MA TO252-5 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 15V | - | 0.1V @ 100mA | 300mA | 12 µA | - | 29dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
|
NJW4184DL3-05A-TE2IC REG LINEAR 5V 300MA TO252-5 |
0 |
|
Datasheet |
- | TO-252-6, DPAK (5 Leads + Tab) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 5V | - | 0.1V @ 100mA | 300mA | 12 µA | - | 36dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | TO-252-5 |
|
TS2938CS330.5A 3.3V ULTRA LOW DROPOUT VOLT |
0 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 3.3V | - | 0.6V @ 500mA | 500mA | 300 µA | 50 mA | - | Current Limit, Inhibit | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOP |
|
NCP1117DT12IC REG LINEAR 12V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | 1.2V @ 800mA | 1A | 10 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT15IC REG LINEAR 1.5V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT18IC REG LINEAR 1.8V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.8V | - | 1.2V @ 800mA | 1A | 10 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT20IC REG LINEAR 2V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 2V | - | 1.2V @ 800mA | 1A | 10 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT25IC REG LINEAR 2.5V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 2.5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT285IC REG LINEAR 2.85V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 2.85V | - | 1.2V @ 800mA | 1A | 10 mA | - | 68dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DT50IC REG LINEAR 5V 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 20V | 5V | - | 1.2V @ 800mA | 1A | 10 mA | - | 61dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
NCP1117DTAIC REG LINEAR POS ADJ 1A DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 1.25V | 18.8V | 1.2V @ 800mA | 1A | 10 mA | - | 73dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|

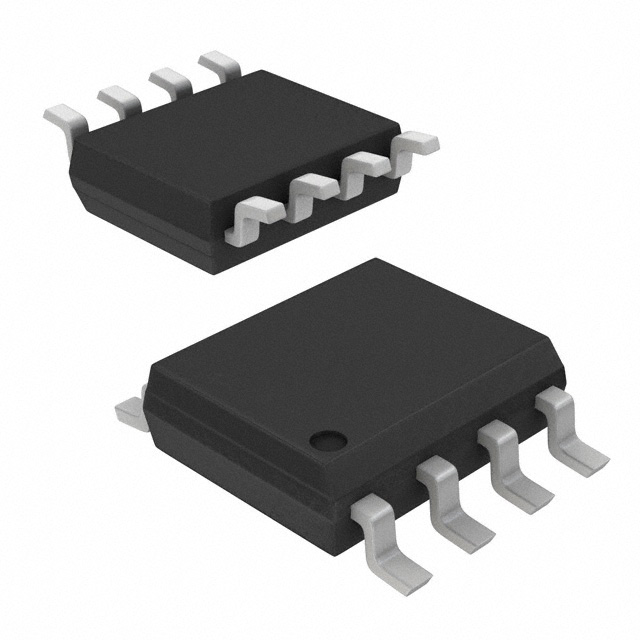

RC2951MIC REG LIN POS ADJ 100MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 30V | 1.24V | 29V | 0.38V @ 100mA | 100mA | 140 µA | 15 mA | - | Enable | Over Current, Over Temperature | -55°C ~ 150°C | - | - | Surface Mount | 8-SOIC |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Frequently Asked Questions
Q1: What products are included in Voltage Regulators - Linear, Low Drop Out (LDO) Regulators?
This category includes related Voltage Regulators - Linear, Low Drop Out (LDO) Regulators subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Voltage Regulators - Linear, Low Drop Out (LDO) Regulators and other electronic components.
