Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCR3DF40,LM(CTIC REG LINEAR 4V 300MA SMV |
4,307 |
|
Datasheet |
TCR3DF | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4V | - | 0.22V @ 300mA | 300mA | - | - | 70dB (1kHz) | Enable | Inrush Current, Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
TC1223-3.0VCTTRIC REG LINEAR 3V 50MA SOT23-5 |
3,909 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.12V @ 50mA | 50mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TC1054-5.0VCT713IC REG LINEAR 5V 50MA SOT23-5 |
3,826 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 5V | - | 0.12V @ 50mA | 50mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP5907SNX-1.9IC REG LINEAR 1.9V 250MA 4X2SON |
2,935 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.9V | - | 0.25V @ 250mA | 250mA | 25 µA | - | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
TC1054-3.3VCT713IC REG LINEAR 3.3V 50MA SOT23-5 |
2,356 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.12V @ 50mA | 50mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP3985IM5-3.2/NOPBIC REG LINEAR 3.2V 150MA SOT23-5 |
1,697 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.2V | - | 0.1V @ 150mA | 150mA | 150 µA | 250 µA | 50dB ~ 40dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TC1014-4.0VCT713IC REG LINEAR 4V 50MA SOT23-5 |
1,348 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 4V | - | 0.12V @ 50mA | 50mA | 80 µA | - | 64dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
LP5907UVX-3.2/NOPBIC REG LINEAR 3.2V 250MA 4DSBGA |
9,811 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.2V | - | 0.2V @ 250mA | 250mA | 25 µA | - | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-DSBGA |
|

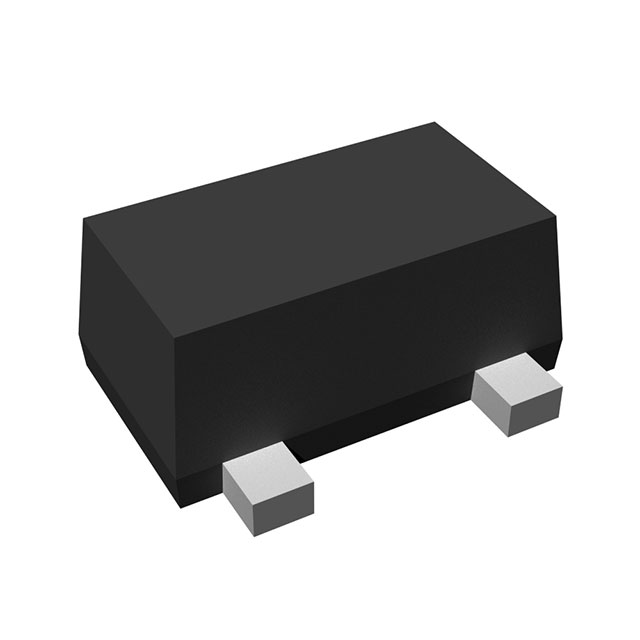

R1100D121C-TR-FIC REG LIN 1.2V 35MA SON1408-3 |
22,410 |
|
Datasheet |
R1100D | SOT-623F | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.2V | - | 0.6V @ 35mA | 35mA | - | 3 µA | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SON1408-3 |
|
LDL1117S15RIC REG LINEAR 1.5V 1.2A SOT223 |
21,845 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 18V | 1.5V | - | 0.6V @ 1.2A | 1.2A | 500 µA | - | 87dB ~ 65dB (120Hz ~ 100kHz) | - | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223 |
|
TCR2LN18,LF(SELDO REG VOUT=2.5V I=200MA |
15,421 |
|
Datasheet |
TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.6V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
MIC5353-3.0YMT-TRIC REG LINEAR 3V 500MA 6TMLF |
13,894 |
|
Datasheet |
- | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3V | - | 0.35V @ 500mA | 500mA | 175 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
|
TCR2EN31,LF(SELDO REG VOUT=3.1V IOUT=200MA |
12,489 |
|
Datasheet |
- | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.1V | - | 0.18V @ 150mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
LP5907UVX-2.8/NOPBIC REG LINEAR 2.8V 250MA 4DSBGA |
10,976 |
|
Datasheet |
- | 4-XFBGA, DSBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-DSBGA |
|
TCR2EN18,LF(SELDO REG VOUT=1.8V IOUT=200MA |
9,889 |
|
Datasheet |
- | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.29V @ 300mA, 0.3V @ 300mA | 200mA | 60 µA | - | - | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
|
|
LP5907SNX-4.0/NOPBIC REG LINEAR 4V 250MA 4X2SON |
7,321 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 4V | - | 0.25V @ 250mA | 250mA | 25 µA | 425 µA | 90dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | 4-X2SON (1x1) |
|
|
MIC5353-2.5YMT-TRIC REG LINEAR 2.5V 500MA 6TMLF |
5,199 |
|
Datasheet |
- | 6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.35V @ 500mA | 500mA | 175 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-TMLF® (1.6x1.6) |
|
NCP114ASN290T1GIC REG LINEAR 2.9V 300MA 5TSOP |
4,955 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.9V | - | - | 300mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-TSOP |
|
AP2121AK-2.5TRG1IC REG LINEAR 2.5V 200MA SOT23-5 |
4,438 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.5V @ 200mA | 200mA | 50 µA | - | 70dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
TCR2LN28,LF(SELDO REG VOUT=2.8V I=200MA |
4,366 |
|
Datasheet |
TCR2LN | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.36V @ 150mA | 200mA | 2 µA | - | - | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-SDFN (0.8x0.8) |
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Electronic Components
Explore Voltage Regulators - Linear, Low Drop Out (LDO) Regulators electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
