Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-1170B52PD-OULTFGIC REG LINEAR 5.2V 800MA 6HSON |
0 |
|
Datasheet |
S-1170 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5.2V | - | 0.18V @ 300mA | 800mA | 1 µA | 160 µA | 65dB (1kHz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSON (A) (2.9x2.8) |
|
|
S-1170B53PD-OUMTFGIC REG LINEAR 5.3V 800MA 6HSON |
0 |
|
Datasheet |
S-1170 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5.3V | - | 0.18V @ 300mA | 800mA | 1 µA | 160 µA | 65dB (1kHz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSON (A) (2.9x2.8) |
|
|
S-1170B54PD-OUNTFGIC REG LINEAR 5.4V 800MA 6HSON |
0 |
|
Datasheet |
S-1170 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5.4V | - | 0.18V @ 300mA | 800mA | 1 µA | 160 µA | 65dB (1kHz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSON (A) (2.9x2.8) |
|
|
S-1170B55PD-OUOTFGIC REG LINEAR 5.5V 800MA 6HSON |
0 |
|
Datasheet |
S-1170 | 6-SMD, Flat Leads Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 5.5V | - | 0.18V @ 300mA | 800mA | 1 µA | 160 µA | 65dB (1kHz) | Enable | Over Current, Thermal Shutdown | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-HSON (A) (2.9x2.8) |
|
MC78M12CDTIC REG LINEAR 12V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC78M15CDTIC REG LINEAR 15V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 35V | 15V | - | - | 500mA | - | - | 70dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M05CDTIC REG LINEAR -5V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -5V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 66dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M08CDTIC REG LINEAR -8V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -8V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 63dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M12CDTIC REG LINEAR -12V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -12V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
|
MC79M15CDTIC REG LINEAR -15V 500MA DPAK |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Negative | Fixed | 1 | -35V | -15V | - | 1.1V @ 500mA (Typ) | 500mA | - | - | 60dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DPAK |
|
MIC5235-3.0BMIC REG LINEAR 3V 150MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Fixed | 1 | 24V | 3V | - | 0.5V @ 150mA | 150mA | 35 µA | 4 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
|
MIC5235BMIC REG LIN POS ADJ 150MA 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Positive | Adjustable | 1 | 24V | 1.24V | 20V | 0.5V @ 150mA | 150mA | 35 µA | 4 mA | - | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
MCP1700T-2802E/MBIC REG LINEAR 2.8V 250MA SOT89-3 |
16 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 2.8V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
MC78L05ACHXIC REG LINEAR 5V 100MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 30V | 5V | - | - | 100mA | 5.5 mA | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-89-3 |
|
AP1117D15G-13IC REG LINEAR 1.5V 1A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.5V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117D18G-13IC REG LINEAR 1.8V 1A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
|
AP1117D33G-13IC REG LINEAR 3.3V 1A TO252-3 |
0 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.4V @ 1A | 1A | 10 mA | - | 60dB (180Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252-3 |
|
AP2204RA-3.3TRG1IC REG LINEAR 3.3V 150MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 3.3V | - | 0.5V @ 150mA | 150mA | 50 µA | 2.5 mA | 60dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AP2204RA-5.0TRG1IC REG LINEAR 5V 150MA SOT89-3 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 24V | 5V | - | 0.5V @ 150mA | 150mA | 50 µA | 2.5 mA | 60dB (100Hz ~ 1kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|

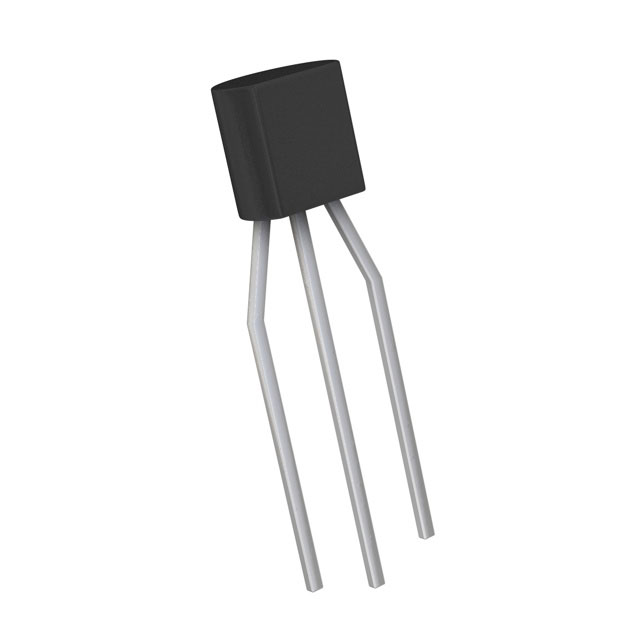

TS78L05CT A3GIC REG LINEAR 5V 100MA TO92 |
0 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Cut Tape (CT) | Obsolete | Positive | Fixed | 1 | 35V | 5V | - | 1.7V @ 100mA (Typ) | 100mA | 6 mA | - | 49dB (120Hz) | Current Limit | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
