Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC3490-5.0YM5-TRIC REG LINEAR 5V 100MA SOT23-5 |
916 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 36V | 5V | - | 0.45V @ 100mA | 100mA | 30 µA | 2 mA | - | Enable | Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
AZ1117H-3.3TRG1IC REG LINEAR 3.3V 1A SOT223 |
17,890 |
|
Datasheet |
AZ1117 | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.25V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Thermal Shutdown | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
LP38692MP-ADJ/NOPBIC REG LINEAR POS ADJ 1A SOT223 |
12,458 |
|
Datasheet |
- | TO-261-5, TO-261AB | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9V | - | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-5 |
|
TPS73533DRBTIC REG LINEAR 3.3V 500MA 8SON |
11,289 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
LP38692SD-ADJ/NOPBIC REG LINEAR POS ADJ 1A 6WSON |
4,818 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 10V | 1.25V | 9V | - | 1A | 55 µA | 100 µA | 55dB (120Hz) | - | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (3x3) |
,TO-226_straightlead.jpg)
|
S-812C30AY-B2-UIC REG LINEAR 3V 50MA TO92-3 |
4,394 |
|
Datasheet |
S-812C | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.41V @ 10mA | 50mA | 500 nA | 1.8 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TPS73533DRVTIC REG LINEAR 3.3V 500MA 6WSON |
2,759 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3.3V | - | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS73501DRVTIC REG LIN POS ADJ 500MA 6WSON |
1,525 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 1.25V | 6V | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 6-WSON (2x2) |
|
|
TPS73501DRBTIC REG LINEAR POS ADJ 500MA 8SON |
955 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6.5V | 1.25V | 6V | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
|
S-812C20AY-B2-UIC REG LINEAR 2V 30MA TO92-3 |
820 |
|
Datasheet |
S-812C | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 16V | 2V | - | 0.95V @ 10mA | 30mA | 500 nA | 1.6 µA | - | - | - | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TPS73512DRBTIC REG LINEAR 1.2V 500MA 8SON |
646 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.2V | - | 0.5V @ 500mA | 500mA | 65 µA | - | 66dB ~ 22dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 8-SON (3x3) |
|
MIC5280YMEIC REG LINEAR POS ADJ 25MA 8SOIC |
285 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Positive | Adjustable | 1 | 120V | 1.22V | 5V | 1.5V @ 25mA | 25mA | 50 µA | 400 µA | 80dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 8-SOIC-EP |
|
LM7812SX/NOPBIC REG LIN 12V 1.5A DDPAK/TO263 |
12,380 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A | 1.5A | 8 mA | - | 72dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | TO-263 (DDPAK-3) |
|
|
TPS7A1901DRBTIC REG LINEAR POS ADJ 450MA 8SON |
6,612 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 1.5V | 18V | 0.45V @ 400mA | 450mA | 40 µA | - | 45dB (100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SON (3x3) |
|

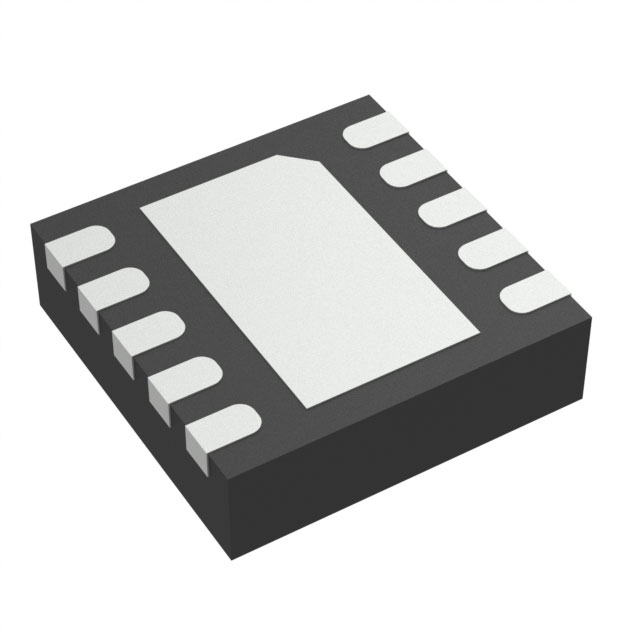

TPS74801AWDRCRTPS74801AWDRCR |
4,592 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.8V | 3.6V | 0.135V @ 1.5A | 1.5A | 1.1 mA | - | 60dB ~ 30dB (1kHz ~ 300kHz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount, Wettable Flank | 10-VSON (3x3) |
|
LM2931AD2T-5R4GIC REG LINEAR 5V 100MA DPAK |
2,289 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 100mA | 100mA | 1 mA | 30 mA | 90dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | D2PAK-3 |
|
LM2940CT-12/NOPBIC REG LINEAR 12V 1A TO220-3 |
1,408 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 12V | - | 0.8V @ 1A | 1A | 10 mA | 15 mA | 66dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM7815CT/NOPBIC REG LINEAR 15V 1A TO220-3 |
648 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 35V | 15V | - | 2V @ 1A | 1A | 8 mA | - | 70dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM2940CT-9.0/NOPBIC REG LINEAR 9V 1A TO220-3 |
487 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 9V | - | 0.8V @ 1A | 1A | 10 mA | 15 mA | 64dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
LM2940CT-15/NOPBIC REG LINEAR 15V 1A TO220-3 |
268 |
|
Datasheet |
- | TO-220-3 | Tube | Active | Positive | Fixed | 1 | 26V | 15V | - | 0.8V @ 1A | 1A | 10 mA | 15 mA | 66dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
