Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS71730DCKRIC REG LINEAR 3V 150MA SC70-5 |
9,387 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 3V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
TLV75801PDRVTIC REG LIN POS ADJ 500MA 6WSON |
9,384 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 6V | 0.55V | 5.5V | 0.88V @ 500mA | 500mA | 35 µA | - | 50dB ~ 30dB (1kHz ~ 1MHz) | Enable | Over Current, Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-WSON (2x2) |
|
LP2992IM5X-5.0/NOPBIC REG LINEAR 5V 250MA SOT23-5 |
8,821 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
TPS71718DCKRIC REG LINEAR 1.8V 150MA SC70-5 |
7,196 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | 0.3V @ 150mA | 150mA | 80 µA | 100 µA | 70dB ~ 45dB (100Hz ~ 1MHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
LP2992IM5X-3.3/NOPBIC REG LINEAR 3.3V 250MA SOT23-5 |
6,348 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.85V @ 250mA | 250mA | 95 µA | 4 mA | 45dB (1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
NCV7808BDTRKGIC REG LINEAR 8V 1A DPAK |
6,064 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 8V | - | 2V @ 1A (Typ) | 1A | 8 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | DPAK |
,TO-226_straightlead.jpg)
|
LM340LAZ-5.0/NOPBIC REG LINEAR 5V 100MA TO92-3 |
3,219 |
|
Datasheet |
- | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Positive | Fixed | 1 | 35V | 5V | - | 2V @ 1A | 100mA | 6 mA | - | 70dB (120Hz) | - | Over Current, Short Circuit | 0°C ~ 70°C | - | - | Through Hole | TO-92-3 |
|
|
LM317LBZGIC REG LINEAR POS ADJ 100MA TO92 |
2,953 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Tube | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
L7806CD2T-TRIC REG LINEAR 6V 1.5A D2PAK |
2,222 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Not For New Designs | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1.5A | 8 mA | - | 59dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
ZXTR2012K-13IC REG LINEAR 12V 60MA TO252-3 |
2,000 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 100V | 12V | - | - | 60mA | 400 µA | 900 µA | 45dB (100Hz) | - | - | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | TO-252-3 |
|
LM317LBZRPGIC REG LINEAR POS ADJ 100MA TO92 |
25,705 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body, Formed Leads | Cut Tape (CT) | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Through Hole | TO-92 (TO-226) |
|
|
L7806ABD2T-TRIC REG LINEAR 6V 1.5A D2PAK |
13,737 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 6V | - | 2V @ 1A (Typ) | 1.5A | 6 mA | - | 65dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | D2PAK |
|
TPS7B8150DGNRIC REG LINEAR 5V 150MA 8MSOP PWR |
5,663 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 5V | - | 0.54V @ 150mA | 150mA | 3.5 µA | 6.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
NCP151AAMX330180TCGIC REG LIN 3.3V/1.8V 300MA 4XDFN |
5,400 |
|
Datasheet |
- | 4-XDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 2 | 5.5V | 3.3V, 1.8V | - | - | 300mA, 300mA | 200 µA | - | 70dB (1kHz) | Current Limit, Enable, Soft Start | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|

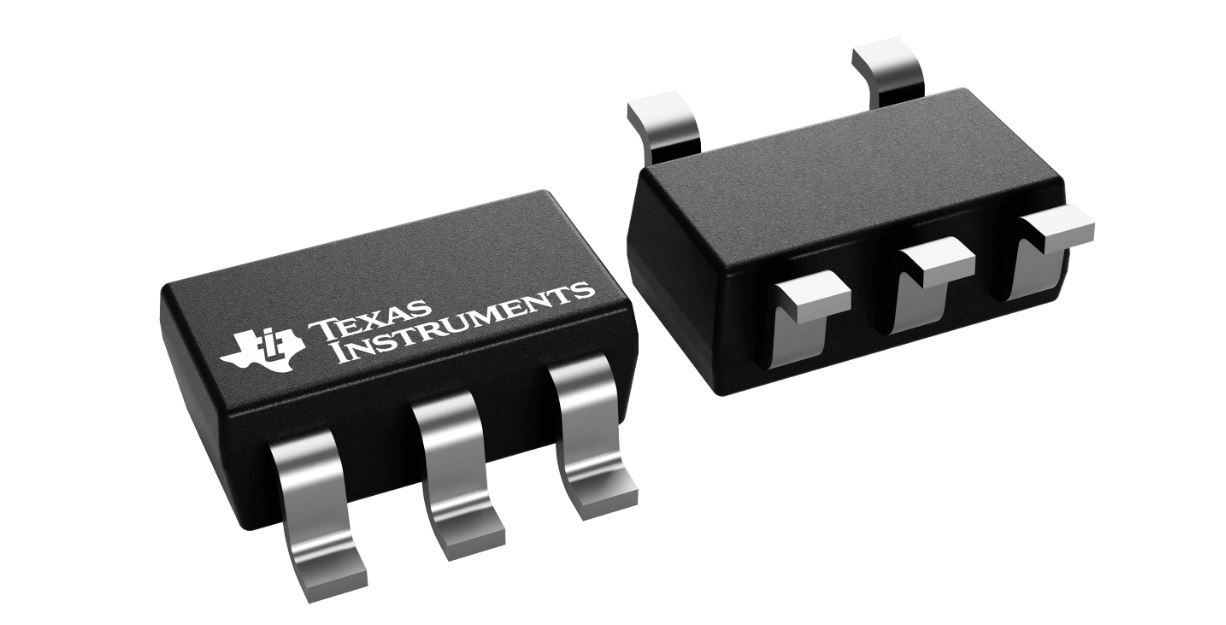

TPS7B4255QDYBRQ1AUTOMOTIVE, 70-MA 40-V VOLTAGE-T |
4,642 |
|
Datasheet |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Positive | Adjustable | 1 | 40V | 2V | 40V | 0.5V @ 70mA | 70mA | 50 µA | 550 µA | 80dB (100Hz) | Current Limit, Enable | Over Current, Over Temperature, Reverse Current, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
NCP752BSN33T1GIC REG LINEAR 3.3V 200MA 5TSOP |
4,472 |
|
Datasheet |
- | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | - | 200mA | 25 µA | - | - | Enable, Power Good | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
TPS7B8133DRVRIC REG LINEAR 3.3V 150MA 6WSON |
3,494 |
|
Datasheet |
- | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 40V | 3.3V | - | 0.675V @ 150mA | 150mA | 3.5 µA | 4.5 µA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-WSON (2x2) |
|
RH5RL50AA-T1-FEIC REG LINEAR 5V 80MA SOT89-3 |
2,319 |
|
Datasheet |
Rx5RL | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 10V | 5V | - | 0.38V @ 1mA | 80mA | 3.9 µA | - | - | - | Over Current, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-89-3 |
|

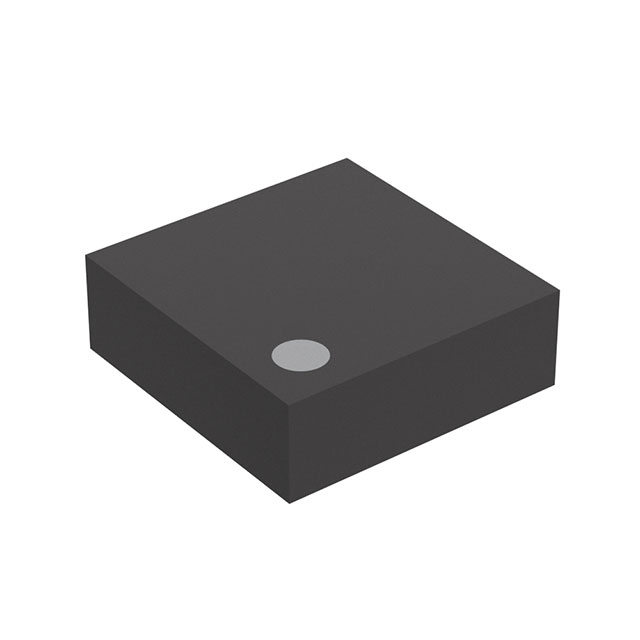

RP117K501D-TRIC REG LIN -5V 100MA DFN1212-6 |
2,106 |
|
Datasheet |
RP117x | 6-XFDFN | Tape & Reel (TR) | Active | Negative | Fixed | 1 | -2.5V | -5V | - | 0.21V @ 100mA | 100mA | 150 µA | - | 80dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | DFN(PL)1212-6 |
|
|
MC78M08BDTRKGIC REG LINEAR 8V 500MA DPAK |
1,321 |
|
Datasheet |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | - | - | 80dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | - | - | Surface Mount | DPAK |
