Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1521CMS8-3#PBFIC REG LINEAR 3V 300MA 8MSOP |
22 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | Positive | Fixed | 1 | 20V | 3V | - | 0.75V @ 300mA | 300mA | 25 µA | 12 mA | 58dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
LT1585CM-3.45#PBFIC REG LINEAR 3.45V 4.6A D2PAK-3 |
0 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | Positive | Fixed | 1 | 7V | 3.45V | - | 1.4V @ 4A | 4.6A | - | - | - | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
|
LT1585CM-3.6#PBFIC REG LINEAR 3.6V 4.6A D2PAK-3 |
0 |
|
Datasheet |
* | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | DDPAK-3 |
|
LT3055IMSE-5#PBFIC REG LINEAR 5V 500MA 16MSOP |
8 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 5V | - | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 66dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT3055IMSE-3.3#PBFIC REG LINEAR 3.3V 500MA 16MSOP |
5 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Positive | Fixed | 1 | 45V | 3.3V | - | 0.59V @ 500mA | 500mA | 130 µA | 25 mA | 70dB (120Hz) | Current Limit, Enable, Power Good, Soft Start | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|
LT1963AET-2.5#06PBFIC REG LIN 2.5V 1.5A TO220-5 |
8 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT1117CM-2.85#PBFIC REG LIN 2.85V 800MA D2PAK-3 |
100 |
|
Datasheet |
- | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | Positive | Fixed | 1 | 10V | 2.85V | - | 1.2V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | DDPAK-3 |
|
LT1965IT-1.5#PBFIC REG LINEAR 1.5V 1.1A TO220-5 |
100 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1965IT-2.5#PBFIC REG LINEAR 2.5V 1.1A TO220-5 |
4 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 2.5V | - | 0.49V @ 1.1A | 1.1A | 1.1 mA | 40 mA | 75dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1085IM-3.6#PBFIC REG LINEAR 3A 3.6V D2PAK-3 |
0 |
|
Datasheet |
* | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | DDPAK-3 |
|
LT1185IT#31PBFIC REG LIN POS/NEG ADJ 3A TO220 |
0 |
|
Datasheet |
- | TO-220-5 Formed Leads | Tube | Active | Positive or Negative | Adjustable | 1 | -35V | ±2.5V | ±25V | 1V @ 3A | 3A | 3.5 mA | - | - | - | Over Current | -40°C ~ 85°C | - | - | Through Hole | TO-220-5 Flow 31 |
|
LT3032IDE-15#PBFIC REG LINEAR +-15V 14DFN |
95 |
|
Datasheet |
- | 14-PowerWFDFN | Tube | Active | Positive and Negative | Fixed | 2 | ±20V | ±15V | - | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) | 150mA, 150mA | - | - | 68dB (120Hz), 54dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x3) |
|
|
LT1963ET-1.5#PBFIC REG LINEAR 1.5V 1.5A TO220-5 |
108 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 1.5V | - | 0.55V @ 1.5A | 1.5A | 1.5 mA | 120 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1764AET-3.3#06PBFIC REG LINEAR 3.3V 3A TO220 |
10 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Fixed | 1 | 20V | 3.3V | - | 0.66V @ 3A | 3A | 1.5 mA | 200 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
LT1118CS8-2.85#PBFIC REG LINEAR 2.85V 800MA 8SOIC |
10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Positive | Fixed | 1 | 15V | 2.85V | - | 1.3V @ 800mA | 800mA | 1 mA | - | 80dB (120Hz) | Enable | Over Current, Over Temperature | 0°C ~ 70°C | - | - | Surface Mount | 8-SO |
|
|
LT1529CT#06PBFIC REG LIN POS ADJ 3A TO220-5 |
100 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Positive | Adjustable | 1 | 15V | 3.75V | 14V | 0.95V @ 3A | 3A | 100 µA | 160 mA | 62dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | 0°C ~ 125°C | - | - | Through Hole | TO-220-5 Flow 6 |
|
|
LT3015IT-3.3#PBFIC REG LINEAR -3.3V 1.5A TO220-5 |
100 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Negative | Fixed | 1 | -30V | -3.3V | - | 0.68V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 61dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Through Hole | TO-220-5 |
|
|
LT1175CT#06PBFIC REG LIN NEG ADJ 500MA TO220-5 |
100 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Negative | Adjustable | 1 | -20V | -3.8V | -19.3V | 0.7V @ 500mA | 500mA | 80 µA | - | - | Current Limit, Enable | - | 0°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 Flow 6 |
|

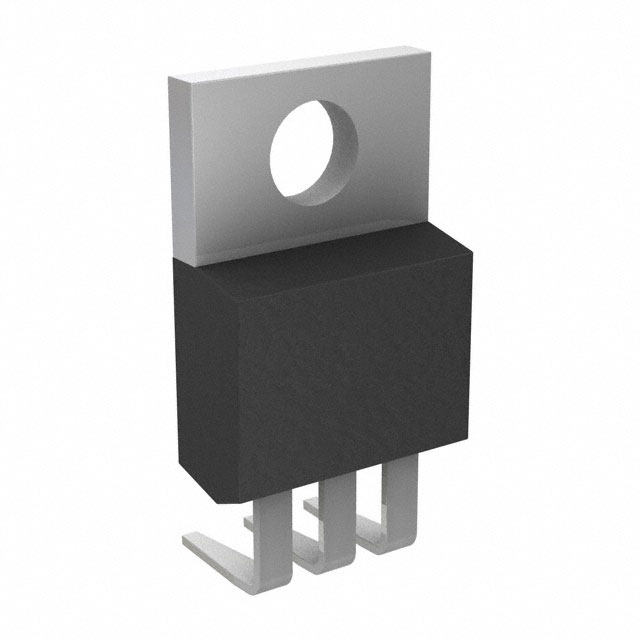

LT1086IT#36PBFIC REG LIN POS ADJ 1.5A TO220-3 |
10 |
|
Datasheet |
- | TO-220-3 Formed Leads | Tube | Active | Positive | Adjustable | 1 | 25V | 1.25V | 23.5V | 1.5V @ 1.5A | 1.5A | - | - | 75dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-220-3 Flow 36 |
|
LT3015IMSE-12#PBFIC REG LINEAR -12V 1.5A 12MSOP |
7 |
|
Datasheet |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Negative | Fixed | 1 | -30V | -12V | - | 0.5V @ 1.5A | 1.5A | 2.4 mA | 70 mA | 53dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | 12-MSOP-EP |
