Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4040AEM3-2.1+TIC VREF SHUNT 2.048V SOT23 |
1,702 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.048V | - | 15 mA | ±0.1% | 100ppm/°C | - | 28µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4041AIM3-1.2+TIC VREF SHUNT 1.225V SOT23 |
1,287 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 20 mA | ±0.1% | 100ppm/°C | - | 20µVrms | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040AEM3-3.0+TIC VREF SHUNT 3V SOT23-3 |
886 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.1% | 100ppm/°C | - | 45µVrms | - | - | 67 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AD1580BKSZ-REEL7IC VREF SHUNT 0.2% SC70-3 |
4,061 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 10 mA | ±0.2% | 50ppm/°C | 5µVp-p | 20µVrms | - | - | 50 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
ADR3440ARJZ-R7IC VREF SERIES 0.1% SOT23-6 |
2,509 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.1% | 8ppm/°C | 29µVp-p | 53µVrms | 4.3V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ISL60002DIH311Z-TKIC VREF SERIES 0.42% SOT23-3 |
4,814 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 1.2V | - | 7 mA | ±0.42% | 20ppm/°C | 30µVp-p | - | 2.7V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ISL60002CIH326Z-TKIC VREF SERIES 0.1% SOT23-3 |
5,618 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 2.6V | - | 7 mA | ±0.1% | 20ppm/°C | 30µVp-p | - | 2.8V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4140CCM-1.0/NOPBIC VREF SERIES 0.1% 8SOIC |
230 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 1.024V | - | 8 mA | ±0.1% | 10ppm/°C | 2.2µVp-p | - | 1.8V ~ 5.5V | 375µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM4132AQ1MFT2.5IC VREF SERIES 0.05% SOT23-5 |
1,497 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 20 mA | ±0.05% | 20ppm/°C | 240µVp-p | - | 2.9V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
LM4040AIM3-5.0+TIC VREF SHUNT 0.1% SOT23-3 |
1,814 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 100ppm/°C | - | 80µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040AIM3-4.1+TIC VREF SHUNT 0.1% SOT23-3 |
15,338 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.1% | 100ppm/°C | - | 64µVrms | - | - | 73 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

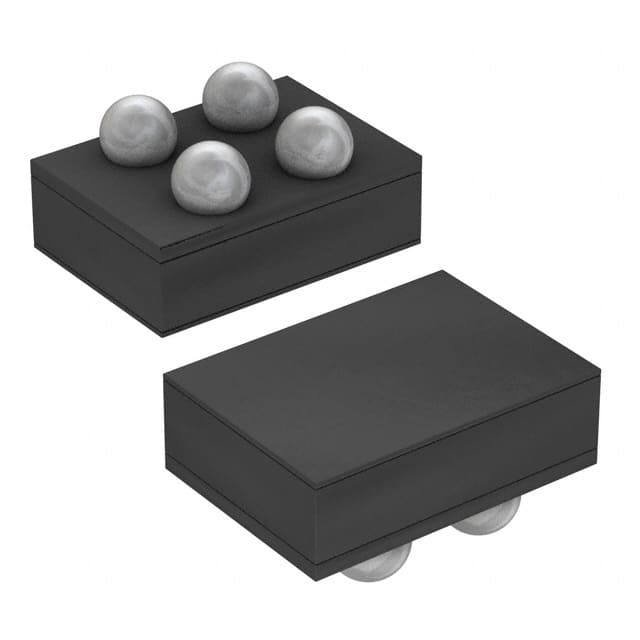

MAX6069CAAWS+TIC VREF SHUNT 0.2% 4WLP |
2,779 |
|
Datasheet |
4-WFBGA, WLBGA | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | - | ±0.2% | 25ppm/°C | 60µVp-p | - | - | 2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLP (1.16x0.88) |
|
LM4040AIX3-3.0+TIC VREF SHUNT 0.1% SC70-3 |
10,022 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.1% | 100ppm/°C | - | 45µVrms | - | - | 67 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
REF2025AIDDCTIC VREF SERIES 0.05% SOT23-5 |
635 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.24V, 2.5V | - | 20 mA | ±0.05% | 8ppm/°C | 12ppmp-p | - | 2.52V ~ 5.5V | 460µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|
MAX6070BAUT18+TIC VREF SERIES 0.08% SOT23-6 |
4,913 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.8V | - | 10 mA | ±0.08% | 8ppm/°C | 6µVp-p | 5µVrms | 2.7V ~ 5.5V | 260µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6071BAUT33+TIC VREF SERIES 0.08% SOT23-6 |
200 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 10 mA | ±0.08% | 8ppm/°C | 10µVp-p | 9µVrms | 3.5V ~ 5.5V | 330µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
LM4040A50IDBZTIC VREF SHUNT 0.1% SOT23-3 |
15,121 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 100ppm/°C | - | 80µVrms | - | - | 95 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
REF2025AISDDCRIC VREF SERIES 0.05% SOT23-5 |
4,399 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V, 2.5V | - | 20 mA | ±0.05% | 8ppm/°C | - | - | 2.52V ~ 5.5V | 460µA | - | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-THIN |
|
|
LM4040AIM3-2.5+TIC VREF SHUNT 0.1% SOT23-3 |
2,445 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.1% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MAX6071BAUT21+TIC VREF SERIES 0.08% SOT23-6 |
10,152 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.08% | 8ppm/°C | 6.4µVp-p | 8.6µVrms | 2.7V ~ 5.5V | 260µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
