Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF35500QDBVRIC VREF SERIES SOT23-6 |
5,660 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.05% | 12ppm/°C | 3.3ppmp-p | 0.7ppmrms | 5.25V ~ 6V | 900nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
LM285BXZ-1.2/NOPBIC VREF SHUNT 1% TO92-3 |
1,427 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 30ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
LM285BXMX-1.2/NOPBIC VREF SHUNT 1% 8SOIC |
1,099 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 30ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
REF3140AIDBZRIC VREF SERIES 0.2% SOT23-3 |
4,058 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.2% | 20ppm/°C | 53µVp-p | 78µVrms | 4.146V ~ 5.5V | 135µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TL4051A12QDBZRIC VREF SHUNT 0.1% SOT23-3 |
770 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±0.1% | 50ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4050QBEM3-2.5/NOPBIC VREF SHUNT 0.2% SOT23-3 |
2,206 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 50ppm/°C | - | 41µVrms | - | - | 65 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
REF3450IDBVRIC VREF SERIES 0.05% SOT23-6 |
10,351 |
|
Datasheet |
SOT-23-6 | REF34xx | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.05% | 6ppm/°C | 3.8µVp-p | 24µVrms | 6V ~ 12V | 95µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
REF3440IDBVRIC VREF SERIES 0.05% SOT23-6 |
2,743 |
|
Datasheet |
SOT-23-6 | REF34xx | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.05% | 6ppm/°C | 3.8µVp-p | 24µVrms | 4.596V ~ 12V | 95µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
REF1930AIDDCRIC VREF SERIES 0.1% SOT23-5 |
3,435 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 20 mA | ±0.1% | 25ppm/°C | 12ppmp-p | - | 3.02V ~ 5.5V | 460µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|

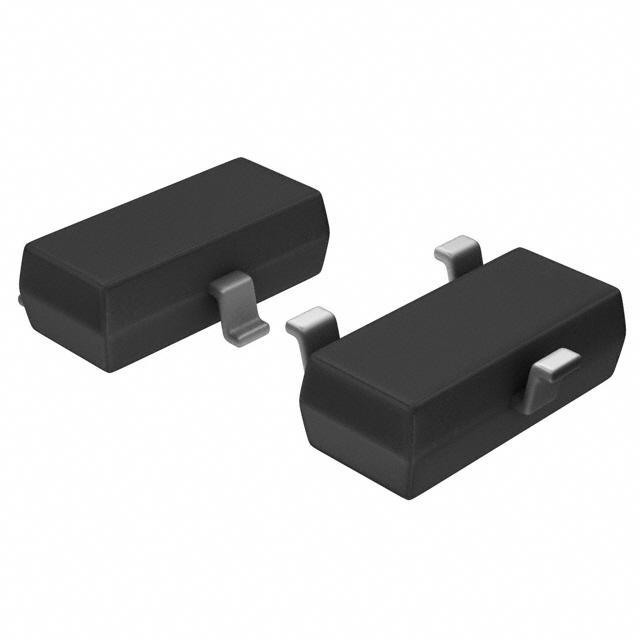

MAX6010BEUR+TIC VREF SERIES 3V SOT23-3 |
2,523 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 7 mA | ±0.4% | 50ppm/°C | 100µVp-p | 200µVrms | 3.2V ~ 5.5V | 6µA | - | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
LM4132BMFX-3.3/NOPBIC VREF SERIES 0.1% SOT23-5 |
3,592 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.1% | 20ppm/°C | 310µVp-p | - | 3.7V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
|
TL4050A50IDBZRIC VREF SHUNT 0.1% SOT23-3 |
1,180 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.1% | 50ppm/°C | - | 93µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MAX6100EUR+TIC VREF SERIES 0.4% SOT23-3 |
7,370 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.8V | - | 5 mA | ±0.4% | 75ppm/°C | 22µVp-p | 25µVrms | 2.5V ~ 12.6V | 125µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
MAX6104EUR+TIC VREF SERIES 0.4% SOT23-3 |
5,001 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.4% | 75ppm/°C | 50µVp-p | 50µVrms | 4.296V ~ 12.6V | 125µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4132EMF-3.3/NOPBIC VREF SERIES 0.5% SOT23-5 |
3,798 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.5% | 30ppm/°C | 310µVp-p | - | 3.7V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
REF4132B30DBVRQ1IC VREF SERIES 0.05% SOT23-5 |
2,087 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.05% | 30ppm/°C | 15µVp-p | 24µVrms | 3.05V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
REF4132B40DBVRQ1IC VREF SERIES 0.05% SOT23-5 |
2,064 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.05% | 30ppm/°C | 15µVp-p | 24µVrms | 4.05V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
REF4132B33DBVRQ1IC VREF SERIES 0.05% SOT23-5 |
1,277 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 10 mA | ±0.05% | 30ppm/°C | 15µVp-p | 24µVrms | 3.35V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-5 |
|
|
LM4040B50IDBZTIC VREF SHUNT 0.2% SOT23-3 |
1,123 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.2% | 100ppm/°C | - | 80µVrms | - | - | 95 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4128BMF-2.5/NOPBIC VREF SERIES 0.2% SOT23-5 |
3,089 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 20 mA | ±0.2% | 75ppm/°C | 275µVp-p | - | 2.9V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
