Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD584SH/883BIC VREF SERIES 0.3% TO99 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.3% | 30ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-99-8 |
|
AD586TQ/883BIC VREF SERIES 5V 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 8-CERDIP |
|
AD588TE/883BIC VREF SERIES 20CLCC |
0 |
|
Datasheet |
20-CLCC | - | Tube | Active | Series | Programmable | 5V | - | 10 mA | - | 3ppm/°C | 6µVp-p | - | - | - | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Surface Mount | 20-CLCC (9x9) |
|

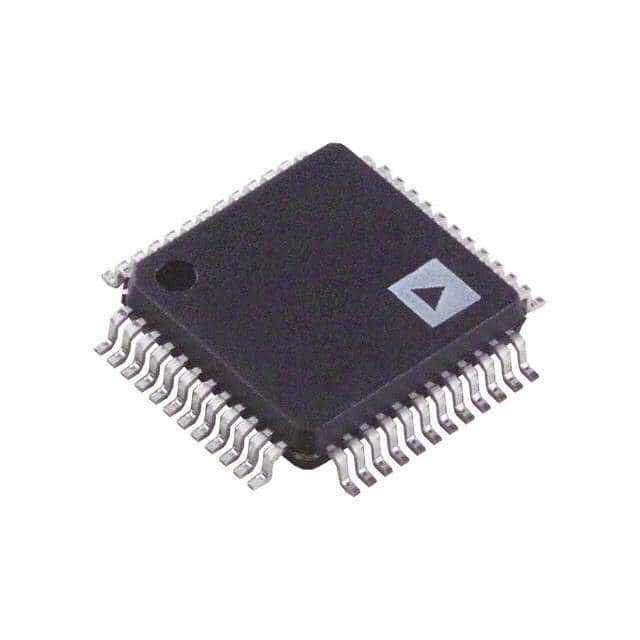

AD589SH/883BIC VREF SHUNT 48TQFP |
0 |
|
Datasheet |
48-TQFP | - | Tube | Active | Shunt | Fixed | 1.235V | - | - | - | 100ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C | Military | MIL-STD-883 | Surface Mount | 48-TQFP (7x7) |
|

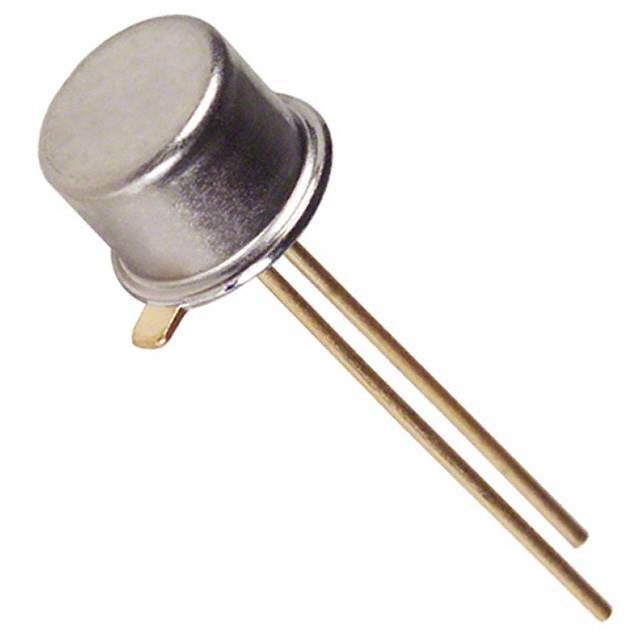

AD589TH/883BIC VREF SHUNT 1.235VTO51-2 |
0 |
|
Datasheet |
TO-51-2 Metal Can | - | Tube | Active | Shunt | Fixed | 1.235V | - | - | - | 50ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | TO-51-2 |
|
|
JM38510/12801BGAIC VREF SERIES TO99 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | - | 30ppm/°C | - | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
|
REF02AJ/883CIC VREF SERIES 5V TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | REF02 | Tube | Active | Series | - | 5V | - | - | ±0.3% | - | - | - | - | - | - | - | - | - | Through Hole | TO-99-8 |
|
|
REF02RC/883CIC VREF SERIES 5V 20CLCC |
0 |
|
Datasheet |
20-CLCC | REF02 | Tube | Active | Series | - | 5V | - | - | ±0.5% | - | - | - | - | - | - | - | - | - | - | 20-CLCC |
|
ISL21090BFB875Z-TKIC VREF SERIES 0.035% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 7.5V | - | 20 mA | ±0.035% | 7ppm/°C | 6.2µVp-p | 4.8µVrms | 9V ~ 36V | 1.3mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
NCP431ACLPRAGIC VREF SHUNT ADJ 1% TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 40 µA | ±1% | 50ppm/°C Typical | - | - | - | - | 100 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|

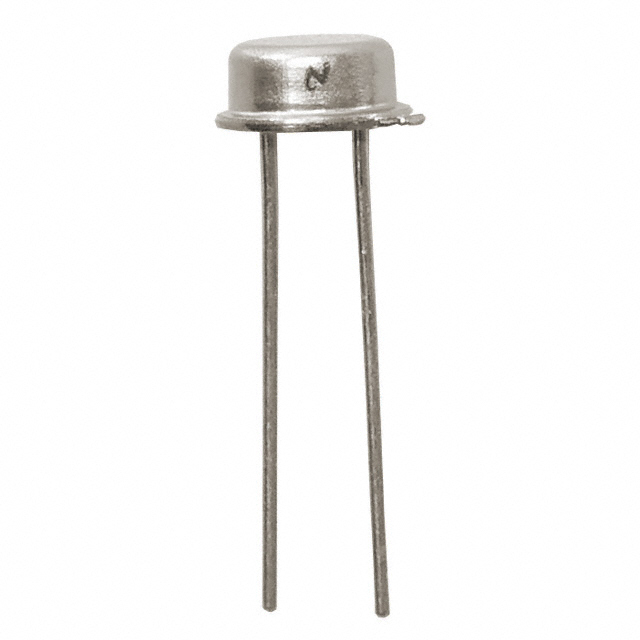

LM185BXH-2.5IC VREF SHUNT 1.5% TO2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 30ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM185BYH-2.5IC VREF SHUNT 1.5% TO2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 50ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM185H-1.2IC VREF SHUNT 1% TO2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
|
LM285H-1.2IC VREF SHUNT 1% TO2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-2 |
|
AP431AQG-7IC VREF SHUNT ADJ 0.5% SOT25 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
AP431AVG-AIC VREF SHUNT ADJ 0.5% TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
AP431AYG-13IC VREF SHUNT ADJ 0.5% SOT89-3 |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±0.5% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AP431QG-7IC VREF SHUNT ADJ 1% SOT25 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-25 |
|
|
AP431VG-AIC VREF SHUNT ADJ 1% TO92 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Through Hole | TO-92 |
|
|
AP431YG-13IC VREF SHUNT ADJ 1% SOT89-3 |
0 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 200 mA | ±1% | 30ppm/°C | - | - | - | - | 500 µA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
