Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X60008BIS8-25T1IC VREF SERIES 0.02% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 3ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008CIS8-25IC VREF SERIES 0.02% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 5ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008CIS8-25T1IC VREF SERIES 0.02% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.02% | 5ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008DIS8-25IC VREF SERIES 0.04% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 10ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008DIS8-25T1IC VREF SERIES 0.04% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 10ppm/°C | 30µVp-p | - | 4.5V ~ 6.5V | 800nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008EIS8-41IC VREF SERIES 0.12% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.12% | 20ppm/°C | 30µVp-p | - | 4.5V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
X60008EIS8-41T1IC VREF SERIES 0.12% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.12% | 20ppm/°C | 30µVp-p | - | 4.5V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
X60003BIG3-50T1IC VREF SERIES 0.02% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.02% | 10ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
X60003CIG3-50T1IC VREF SERIES 0.05% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.05% | 20ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
X60003DIG3-50T1IC VREF SERIES 0.1% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.1% | 20ppm/°C | 30µVp-p | - | 5.1V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|

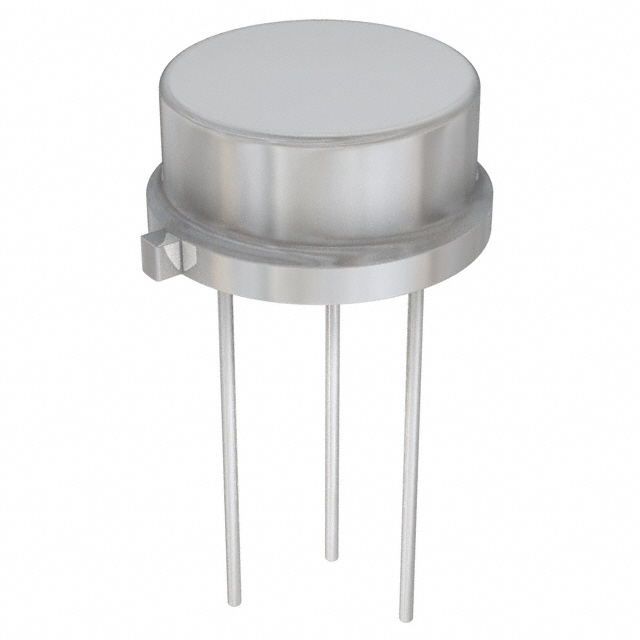

LH0070-1HIC VREF SERIES 0.1% TO39-3 |
0 |
|
Datasheet |
TO-205AD, TO-39-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.1% | - | 6µVp-p | - | 11.4V ~ 40V | 5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-39-3 |
|
|
TL431ACDMIC VREF SHUNT ADJ 1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
TL431ACLPIC VREF SHUNT ADJ 1% TO92-3 |
0 |
|
Datasheet |
TO-226-2, TO-92-2 (TO-226AC) | - | Strip | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431AIDMIC VREF SHUNT ADJ 1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431AILPIC VREF SHUNT ADJ 1% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Strip | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
TL431BCDMIC VREF SHUNT ADJ 0.4% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431BCLPIC VREF SHUNT ADJ 0.4% TO92-3 |
0 |
|
Datasheet |
TO-226-2, TO-92-2 (TO-226AC) | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431BIDMIC VREF SHUNT ADJ 0.4% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
TL431BILPIC VREF SHUNT ADJ 0.4% TO92-3 |
0 |
|
Datasheet |
TO-226-2, TO-92-2 (TO-226AC) | - | Tape & Box (TB) | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | 30ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TL431CDMIC VREF SHUNT ADJ 2% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±2% | 30ppm/°C Typical | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
