Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD586SQIC VREF SERIES 0.2% 8CERDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.2% | 20ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
LM185WG-1.2/883IC VREF SHUNT 1.2V 10CFP |
0 |
|
Datasheet |
10-CSOIC (0.241", 6.12mm Width) | - | Tray | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 150ppm/°C | - | - | 1.2V | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-CFP |
|
LM136AH-2.5/883IC VREF SHUNT 2.5V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 10 mA | ±1% | - | - | - | - | - | 400 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-3 |
|
AD584SHIC VREF SERIES 0.3% TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.3% | 30ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
5962-8686103XAIC VREF SERIES 0.4% TO52-3 |
0 |
|
Datasheet |
TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 10ppm/°C | - | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|
LT6654BXMS8-2.5#TRPBFIC VREF SERIESV 0.1% 8MSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 20ppm/°C | 1.5ppmp-p | 2ppmrms | 36V | 600µA | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 8-MSOP |
|

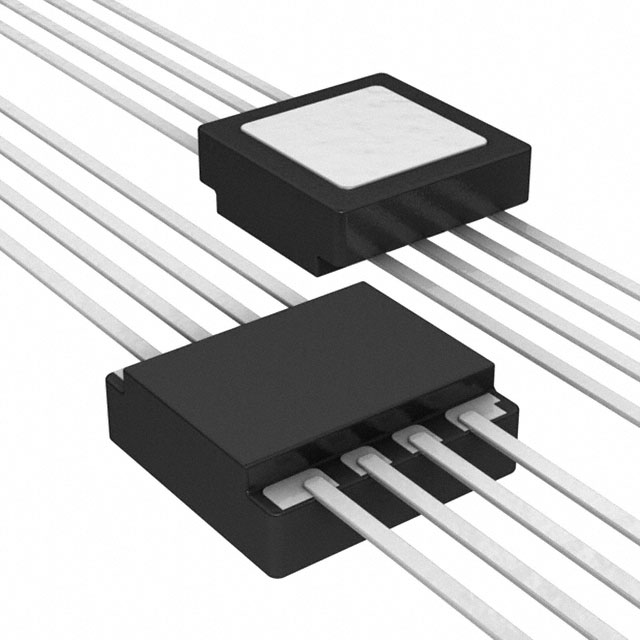

ADR225HFZIC VREF SERIES 2.4% 8FLATPACK |
0 |
|
Datasheet |
8-CFlatPack | - | Tube | Active | Series | Fixed | 2.5V | - | 10 mA | ±2.4% | 80ppm/°C | 25µVp-p | - | 3.3V ~ 16V | 60µA | - | -40°C ~ 210°C (TA) | - | - | Surface Mount | 8-FlatPack |
|
TL431TDA1IC VREF SHUNT ADJ 2.2% DIE |
0 |
|
Datasheet |
Die | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | - | - | - | - | Die |
|
|
TL1431VTDB1IC VREF SHUNT ADJ 0.4% DIE |
0 |
|
Datasheet |
Die | - | Tube | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | - | - | - | - | - |
|
|
TL431TDA2IC VREF SHUNT ADJ 2.2% DIE |
0 |
|
Datasheet |
Die | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | - | - | - | - | Die |
|
|
TL1431VTDB2IC VREF SHUNT ADJ 0.4% DIE |
0 |
|
Datasheet |
Die | - | Tube | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.4% | - | - | - | - | - | 1 mA | - | - | - | - | - |
|
8503003YAIC VREF SERIES 14CDIP |
0 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
AD2700UD/883BIC VREF SERIES 0.05% 14CDIP |
0 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | AD2700 | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 3ppm/°C | 50µVp-p | - | ±13V ~ 18V | 14mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
|
8503004YAIC VREF SERIES 14CDIP |
0 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | - | - | Through Hole | 14-CERDIP |
|
|
AD2702UD/883BIC VREF SERIES 14CDIP |
0 |
|
Datasheet |
14-CDIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | ±10V | - | 10 mA | - | 3ppm/°C | 50µVp-p | - | 13V ~ 18V | 17mA | - | -55°C ~ 125°C | Military | MIL-STD-883 | Through Hole | 14-CERDIP |
|
LM329DZ/NOPBIC VREF SHUNT 6.9V TO92-3 |
0 |
|
- |
TO-226-3, TO-92-3 (TO-226AA) | - | Box | Obsolete | Shunt, Buried Zener | Fixed | 6.9V | - | 15 mA | -4.35%, +5.07% | 100ppm/°C | - | 7µVrms | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
,TO-226_straightlead.jpg)
|
ICL8069CCZQIC VREF SHUNT 1.626% TO92 |
0 |
|
Datasheet |
TO-226-2, TO-92-2 (TO-226AC) | - | Bulk | Obsolete | Shunt | Fixed | 1.23V | - | 5 mA | ±1.626% | 50ppm/°C | - | 5µVp-p | - | - | 50 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 |
|
MAX874CPAIC VREF SERIES 0.38% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 4.096V | - | 400 µA | ±0.38% | 40ppm/°C | 90µVp-p | - | 4.3V ~ 20V | 15µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX875BCPAIC VREF SERIES 0.06% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.06% | 20ppm/°C | 9µVp-p | 14.5µVrms | 7V ~ 18V | 700µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX876BCPAIC VREF SERIES 0.05% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 20ppm/°C | 18µVp-p | 29µVrms | 12V ~ 18V | 700µA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
