Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX6191AESA+TIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 500 µA | ±0.1% | 5ppm/°C | 40µVp-p | 105µVrms | 2.5V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6190AESA+TIC VREF SERIES 0.16% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 500 µA | ±0.16% | 5ppm/°C | 25µVp-p | 65µVrms | 2.5V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6195AESA+TIC VREF SERIES 0.04% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 500 µA | ±0.04% | 5ppm/°C | 120µVp-p | 240µVrms | 5.2V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6198AESA+TIC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 500 µA | ±0.05% | 5ppm/°C | 100µVp-p | 200µVrms | 4.296V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
REF5020IDRG4IC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 3ppm/°C | 6µVpp/V | - | 2.7V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF5025IDRG4IC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.05% | 3ppm/°C | 7.5µVpp/V | - | 2.7V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF5040IDRG4IC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.05% | 3ppm/°C | 12µVpp/V | - | 4.296V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF5050IDRG4IC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.05% | 3ppm/°C | 6µVpp/V | - | 5.2V ~ 18V | 1.2mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM313HIC VREF SHUNT 5% TO2 |
0 |
|
- |
TO-46-2 Metal Can | - | Tube | Obsolete | Shunt | Fixed | 1.22V | - | 20 mA | ±5% | - | - | 5µVrms | - | - | 500 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-2 |
|
|
LT1634BIS8-5#TRPBFIC VREF SHUNT 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 30 mA | ±0.05% | 25ppm/°C | 35µVp-p | - | - | - | 15 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1634BIS8-4.096#TRPBFIC VREF SHUNT 0.05% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 30 mA | ±0.05% | 25ppm/°C | 30µVp-p | - | - | - | 15 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
LT1004CH-2.5IC VREF SHUNT 2.5V |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | - |
|

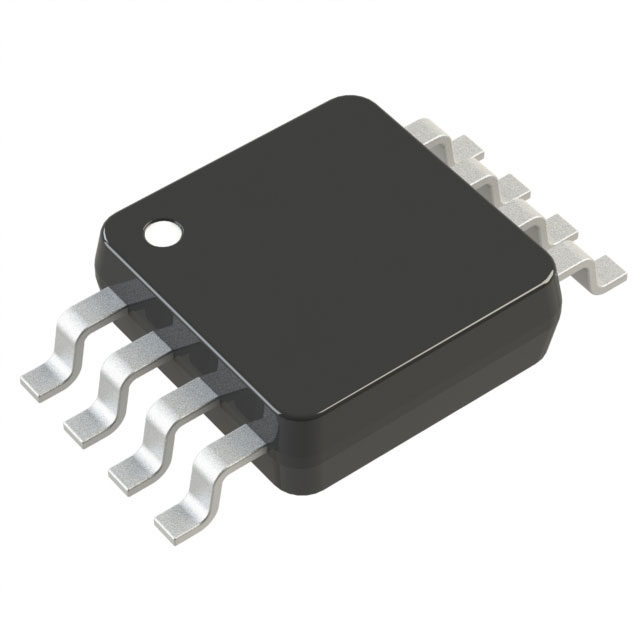

ADR3630BRMZ-R7IC VREF SERIES 3V 8TSSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 70 mA | ±0.04% | 3ppm/°C | 3ppmp-p | 4ppmrms | 3V ~ 16V | 90µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADR3650BRMZ-R7IC VREF SERIES 5V 8TSSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 70 mA | ±0.04% | 3ppm/°C | 3ppmp-p | 4ppmrms | 3V ~ 16V | 90µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADR3625BRMZ-R7IC VREF SERIES 2.5V 8TSSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 70 mA | ±0.04% | 3ppm/°C | 3ppmp-p | 4ppmrms | 3V ~ 16V | 75µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ISL21009BFB850ZIC VREF SERIES 0.04% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | FGA™ | Tube | Obsolete | Series | Fixed | 5V | - | 7 mA | ±0.04% | 3ppm/°C | 4.5µVp-p | 22µVrms | 5.5V ~ 16.5V | 180µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT1460CCMS8-5#TRPBFIC VREF SERIES 0.1% 8MSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 40 mA | ±0.1% | 15ppm/°C | 20µVp-p | 20µVrms | 5.9V ~ 20V | 225µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
LT1460CCMS8-2.5#TRPBFIC VREF SERIES 0.1% 8MSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 40 mA | ±0.1% | 15ppm/°C | 10µVp-p | 10µVrms | 3.4V ~ 20V | 165µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
LT1460CCMS8-10#TRPBFIC VREF SERIES 0.1% 8MSOP |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 10V | - | 40 mA | ±0.1% | 15ppm/°C | 40µVp-p | 35µVrms | 10.9V ~ 20V | 360µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
LT1460ACS8-5#TRPBFIC VREF SERIES 0.075% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 40 mA | ±0.075% | 10ppm/°C | 20µVp-p | 20µVrms | 5.9V ~ 20V | 225µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
