Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX6341CSA+IC VREF SERIES 0.02% 8SOIC |
1,641 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 4.096V | - | 15 mA | ±0.02% | 1ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6350CSA+IC VREF SERIES 0.02% 8SOIC |
139 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6325CSA+IC VREF SERIES 0.04% 8SOIC |
263 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 2.5V | - | 15 mA | ±0.04% | 1ppm/°C | 1.5µVp-p | 1.3µVrms | 8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD586MNZIC VREF SERIES 0.04% 8DIP |
549 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | 5V | - | 10 mA | ±0.04% | 2ppm/°C | 4µVp-p | - | 10.8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX6341ESA+IC VREF SERIES 0.02% 8SOIC |
40 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 4.096V | - | 15 mA | ±0.02% | 1.5ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6350ESA+IC VREF SERIES 0.02% 8SOIC |
1,204 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1.5ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6350CSA+TIC VREF SERIES 0.02% 8SOIC |
2,470 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
AD584KNZIC VREF SERIES 0.1% 8DIP |
152 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.1% | 15ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
MAX6325ESA+IC VREF SERIES 0.04% 8SOIC |
343 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 2.5V | - | 15 mA | ±0.04% | 1.5ppm/°C | 1.5µVp-p | 1.3µVrms | 8V ~ 36V | 3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6350ESA+TIC VREF SERIES 0.02% 8SOIC |
1,910 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1.5ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6325CSA+TIC VREF SERIES 0.04% 8SOIC |
1,599 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Buried Zener | Fixed | 2.5V | - | 15 mA | ±0.04% | 1ppm/°C | 1.5µVp-p | 1.3µVrms | 8V ~ 36V | 3mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6325ESA+TIC VREF SERIES 0.04% 8SOIC |
608 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Buried Zener | Fixed | 2.5V | - | 15 mA | ±0.04% | 1.5ppm/°C | 1.5µVp-p | 1.3µVrms | 8V ~ 36V | 3mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD688ARWZIC VREF SERIES 0.04% 16SOIC |
196 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | - | Tube | Active | Series | Fixed | ±10V | - | 10 mA | ±0.04% | 8ppm/°C | 6µVp-p | - | 12V ~ 38V | 12mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
AD588ARWZIC VREF SERIES 0.03% 16SOIC |
157 |
|
Datasheet |
16-SOIC (0.295", 7.50mm Width) | - | Tube | Active | Series | Programmable | ±5V, ±10V | - | 10 mA | ±0.03% | 3ppm/°C | 6µVp-p | - | 10.8V ~ 36V | 10mA | - | -25°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|

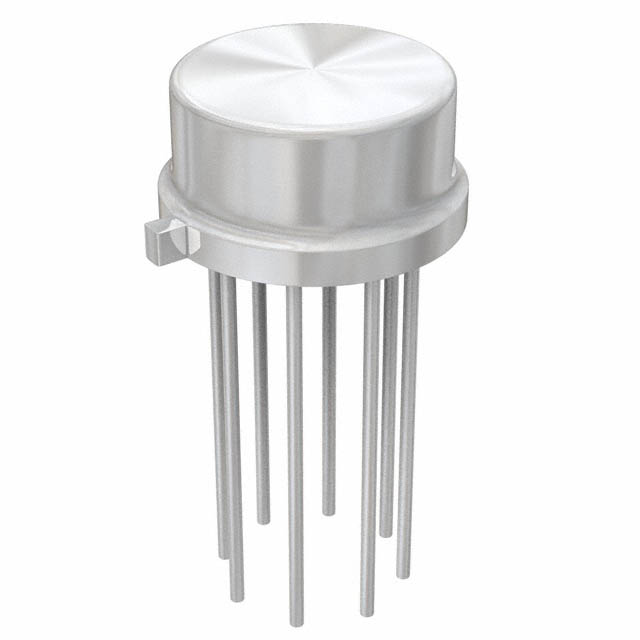

LTZ1000ACH#PBFIC VREF SHUNT 3.33% TO5 |
62 |
|
Datasheet |
TO-205-8, TO-5-8 Metal Can | - | Tray | Active | Shunt | Fixed | 7.2V | - | - | ±3.33% | 0.05ppm/°C | - | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-5 |
|
LT6654BXMS8-2.5#PBFIC VREF SERIESV 0.1% 8MSOP |
30 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 20ppm/°C | 1.5ppmp-p | 2ppmrms | 36V | 600µA | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 8-MSOP |
,TO-226_bentlead.jpg)
|
TL431ACLPRIC VREF SHUNT ADJ 1% TO92-3 |
6,256 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
TL431CPKIC VREF SHUNT ADJ 2.2% SOT89-3 |
22,315 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-89-3 |
,TO-226_straightlead.jpg)
|
TL431ILPRIC VREF SHUNT ADJ 2.2% TO92-3 |
7,669 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
TL431AIDRIC VREF SHUNT ADJ 1% 8SOIC |
28,272 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 700 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
