Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT6658BHMSE-3.3#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
0 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT6658BHMSE-5#TRPBFIC VREF SERIES 6V 0.1% 16MSOP |
0 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 5V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 2.2ppmp-p | 2ppmrms | 5.2V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT6658BHDE-1.8#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 1.8V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.0ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.6mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658BHDE-3.3#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658BHDE-3#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.6ppmp-p | 2ppmrms | 4.2V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658BHDE-1.2#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 1.2V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 0.8ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.2mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658BHDE-2.5#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 2.5V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.5ppmp-p | 2ppmrms | 3.5V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
|
LT6658BHDE-5#TRPBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series, Dual | Adjustable (Fixed) | 5V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 2.2ppmp-p | 2ppmrms | 5.2V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
X60003BIG3Z-41T1IC VREF SERIES 0.02% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Obsolete | Series | Fixed | 4.096V | - | 10 mA | ±0.02% | 10ppm/°C | 30µVp-p | - | 4.5V ~ 9V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4130AIM5X-2.5IC VREF SERIES 0.05% SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.5V | - | 20 mA | ±0.05% | 20ppm/°C | 150µVp-p | - | 2.9V ~ 6V | 90µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4130AIM5X-4.1IC VREF SERIES 0.05% SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 4.096V | - | 20 mA | ±0.05% | 20ppm/°C | 150µVp-p | - | 4.496V ~ 6V | 90µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LT6654AHS6-4.096#TRPBFIC VREF SERIES 0.05% TSOT23-6 |
0 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.05% | 10ppm/°C | 2ppmp-p | 2ppmrms | 4.596V ~ 36V | 600µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|

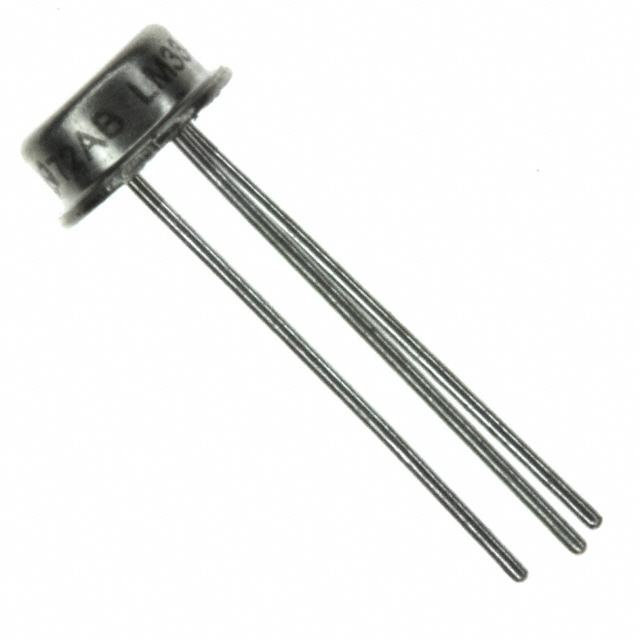

LT1034CH-2.5IC VREF SHUNT 2.5V/7V TO46-3 |
0 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Obsolete | Shunt, Dual | - | 2.5V, 7V | - | - | ±1.2% | - | - | - | - | - | - | - | - | - | Through Hole | TO-46-3 |
|
LT580KHIC VREF PRECISION 2.5V TO52-3 |
0 |
|
Datasheet |
TO-206AC, TO-52-3 Metal Can | - | Bulk | Obsolete | Series, Shunt | - | 2.5V | - | - | ±0.01% | - | - | - | - | - | - | - | - | - | Through Hole | TO-52-3 |
|
LT1460LHS8-5#TRPBFIC VREF SERIES 0.2% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 40 mA | ±0.2% | 50ppm/°C | 20µVp-p | 20µVrms | 5.9V ~ 20V | 225µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1034CS8-1.2#TRPBFIC VREF SHUNT 1.225V/7V 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt, Dual | Fixed | 1.225V, 7V | - | 20 mA | ±1.2% | 40ppm/°C, - | 4µVp-p | - | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1034CS8-2.5#TRPBFIC VREF SHUNT 2.5V/7V 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt, Dual | Fixed | 2.5V, 7V | - | 20 mA | ±1.6% | 40ppm/°C, - | 6µVp-p | - | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
REF02AUE4IC VREF SERIES 0.3% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 21 mA | ±0.3% | 15ppm/°C | 4µVp-p | - | 8V ~ 40V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF02AUG4IC VREF SERIES 0.3% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 21 mA | ±0.3% | 15ppm/°C | 4µVp-p | - | 8V ~ 40V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ISL21010CFH333Z-T7AIC VREF SERIES 0.2% SOT23-3 |
25 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 25 mA | ±0.2% | 50ppm/°C | 95µVp-p | 40µVrms | 3.4V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
