Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

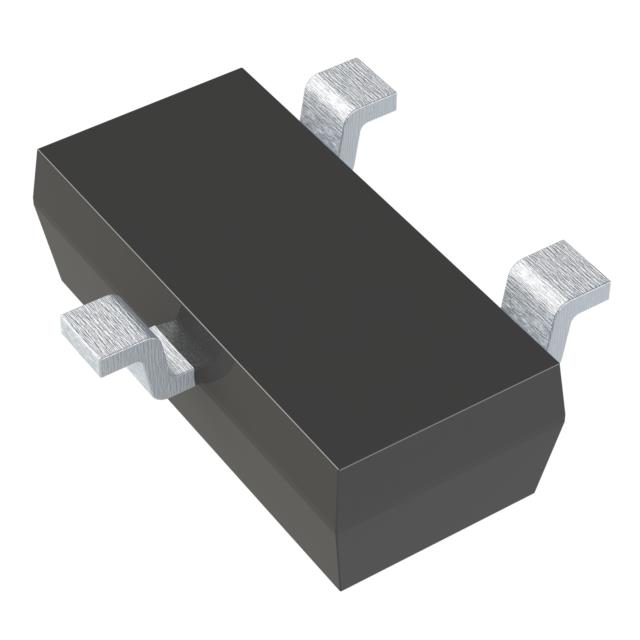

TS3333AMRIC VREF SERIES SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 3.3V | - | 5 mA | ±0.15% | 30ppm/°C | 73µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TS3312AMRIC VREF SERIES 1.25V TO236-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 1.25V | - | 5 mA | ±0.15% | 30ppm/°C | 27µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TS3320AMRIC VREF SERIES 2.048V TO236-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.15% | 30ppm/°C | 47µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TS3325ACRIC VREF SERIES SC70 |
0 |
|
- |
SC-70, SOT-323 | - | Bulk | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.15% | 30ppm/°C | 57µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-3 |
|
|
TS3320ACRIC VREF SERIES 2.048V SC70 |
0 |
|
- |
SC-70, SOT-323 | - | Bulk | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.15% | 30ppm/°C | 47µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-3 |
|
|
TS3330ACRIC VREF SERIES SC70 |
0 |
|
- |
SC-70, SOT-323 | - | Bulk | Active | Series | Fixed | 3V | - | 5 mA | ±0.15% | 30ppm/°C | 67µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-3 |
|
|
TS3312ACRIC VREF SERIES 1.25V SOT323-3 |
0 |
|
- |
SC-70, SOT-323 | - | Bulk | Active | Series | Fixed | 1.25V | - | 5 mA | ±0.15% | 30ppm/°C | 27µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-323-3 |
|
|
TS3320AQPRIC VREF SERIES 2.048V 8UFQFN |
0 |
|
- |
8-UFQFN | - | Bulk | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.15% | 30ppm/°C | 47µVp-p | - | 1.8V ~ 5.5V | 10µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-QFN (1.5x1.5) |
|
TLV431BQDBZRQ1G4AUTOMOTIVE, LOW-VOLTAGE ADJUSTAB |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±0.5% | 161ppm/°C | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
ZR40402F25TAIC VREF SHUNT 2% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 15 mA | ±2% | 100ppm/°C | - | 45µVrms | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4041DIDCKRIC VREF SHUNT ADJ 1% SC70-5 |
0 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
LM336BDR-2-5IC VREF SHUNT 2% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.49V | - | 10 mA | ±2% | - | - | - | - | - | 400 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
,TO-226_straightlead.jpg)
|
NCV1009ZIC VREF SHUNT 0.32% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tube | Obsolete | Shunt | Fixed | 2.5V | - | 10 mA | ±0.32% | 15ppm/°C Typical | - | - | - | - | 400 µA | -40°C ~ 125°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
NCV1009ZGIC VREF SHUNT 0.32% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tube | Obsolete | Shunt | Fixed | 2.5V | - | 10 mA | ±0.32% | 15ppm/°C Typical | - | - | - | - | 400 µA | -40°C ~ 125°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
LM4041DQDBZTG4IC VREF SHUNT ADJ 1% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 80 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TLV431BQDBVTE4IC VREF SHUNT ADJ 0.5% SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±0.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TLV431BQDBZTG4IC VREF SHUNT ADJ 0.5% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±0.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLV431BQDBVTG4IC VREF SHUNT ADJ 0.5% SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±0.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TL431IPIC VREF SHUNT ADJ 2.2% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | 50ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
TLVH432QDBZRIC VREF SHUNT ADJ 1.5% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1.5% | - | - | - | - | - | 100 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
