Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM4040D50IDBZRG4IC VREF SHUNT 1% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 5V | - | 15 mA | ±1% | 150ppm/°C | - | 80µVrms | - | - | 95 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
,TO-226_straightlead.jpg)
|
LM385Z-1.2IC VREF SHNT -2.4%/+2.01% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | -2.4%, +2.01% | 80ppm/°C Typical | - | 60µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
LM385Z-2.5IC VREF SHUNT 3% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±3% | 80ppm/°C Typical | - | 120µVrms | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
LM385Z-1.2RAIC VREF SHNT -2.4%/+2.01% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | -2.4%, +2.01% | 80ppm/°C Typical | - | 60µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
LM385Z-1.2RPIC VREF SHNT -2.4%/+2.01% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | -2.4%, +2.01% | 80ppm/°C Typical | - | 60µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
LM385Z-2.5RPIC VREF SHUNT 3% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Box (TB) | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±3% | 80ppm/°C Typical | - | 120µVrms | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
ZHT431F02TCIC VREF SHUNT ADJ 2% SOT23 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.5V | 20 V | 100 mA | ±2% | 67ppm/°C | - | - | - | - | 50 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040CIM3X-3.0IC VREF SHUNT 0.5% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 3V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LMV431BCM5XIC VREF SHUNT ADJ 0.5% SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 1.24V | 30 V | 15 mA | ±0.5% | - | - | - | - | - | 80 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

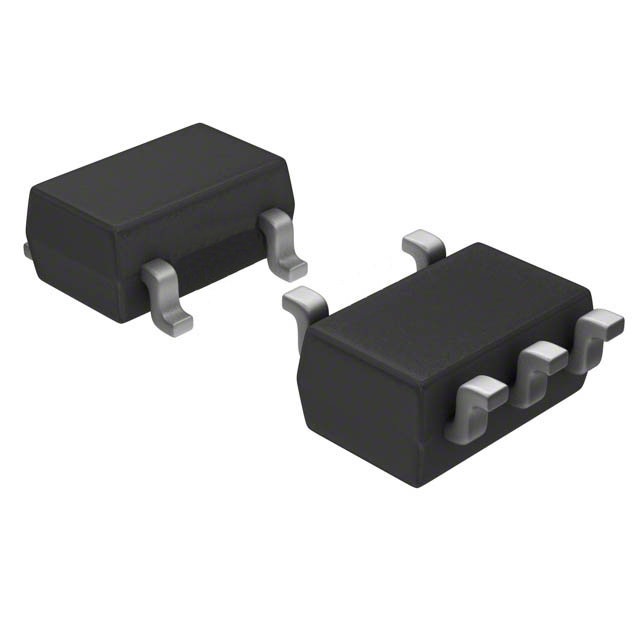

UPC1093TA-E1-ATIC VREF SHUNT 2.495V SC74A |
0 |
|
- |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 2.495V | 36 V | 150 mA | ±2% | 100ppm/°C | - | - | 36V | - | 1 mA | -20°C ~ 85°C (TA) | - | - | Surface Mount | SC-74A, 5-Mini Mold |
|
TL431CPWRIC VREF SHUNT ADJ 2.2% 8TSSOP |
0 |
|
Datasheet |
8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
|
LT1004CLP-1-2IC VREF SHUNT 0.32% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±0.32% | 20ppm/°C Typical | - | 60µVrms | - | - | 10 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
TSM1011ISTIC VREF SERIES 0.5% 8MINISO |
0 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Series | Fixed | 2.545V | - | 1 mA | ±0.5% | - | - | - | 4.5V ~ 28V | 50mA | - | 0°C ~ 105°C (TA) | - | - | Surface Mount | 8-MiniSO |
|
LM385BZ-1.2IC VREF SHUNT 1% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Bulk | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 80ppm/°C Typical | - | 60µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
LM385BZ-2.5IC VREF SHUNT 1.5% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 Long Body | - | Tube | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 80ppm/°C Typical | - | 120µVrms | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92 (TO-226) |
|
|
LM385BZ-1.2RAIC VREF SHUNT 1% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 80ppm/°C Typical | - | 60µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
LM385BZ-2.5RAIC VREF SHUNT 1.5% TO92-3 |
0 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | - | Tape & Reel (TR) | Obsolete | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 80ppm/°C Typical | - | 120µVrms | - | - | 30 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
TLVH431ACDBZRG4IC VREF SHUNT ADJ 1% SOT23-3 |
0 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1% | - | - | - | - | - | 100 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
TSM1011IDIC VREF SERIES 0.5% 8SO |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.545V | - | 1 mA | ±0.5% | - | - | - | 4.5V ~ 28V | 50mA | - | 0°C ~ 105°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TL431CPSRIC VREF SHUNT ADJ 2.2% 8SO |
0 |
|
Datasheet |
8-SOIC (0.209", 5.30mm Width) | - | Tape & Reel (TR) | Obsolete | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
