Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT6658AIMSE-3.3#PBFIC VREF SERIES 6V 0.05% 16MSOP |
13 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
ISL60002BIH325Z-T7AIC VREF SERIES 0.04% SOT23-3 |
87 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 7 mA | ±0.04% | 20ppm/°C | 30µVp-p | - | 2.7V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LT6658AHMSE-1.8#PBFIC VREF SERIES 6V 0.05% 16MSOP |
73 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 1.8V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.0ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.6mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT1021DIN8-5#PBFIC VREF PRECISION 5V 8DIP |
86 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series, Buried Zener | Fixed | 5V | - | 10 mA | ±1% | 20ppm/°C | 3µVp-p | 2.2µVrms | 7.2V ~ 40V | 1.5mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
MAX6133A41+IC VREF SERIES 0.06% 8UMAX |
41 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 4.096V | - | 15 mA | ±0.06% | 7ppm/°C | 32µVp-p | 22µVrms | 4.2V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
LT1634ACS8-5#PBFIC VREF SHUNT 0.05% 8SOIC |
4 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt | Fixed | 5V | - | 30 mA | ±0.05% | 10ppm/°C | 35µVp-p | - | - | - | 15 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
ADR434TRZ-EPIC VREF SERIES 0.04% 8SOIC |
72 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | XFET® | Tube | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.04% | 3ppm/°C | 6.25µVp-p | - | 6.1V ~ 18V | 800µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD581JHIC VREF SERIES 0.3% TO5-3 |
0 |
|
Datasheet |
TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.3% | 30ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-5-3 |
|
REF02AZ/883CIC VREF SERIES 5V 8CDIP |
0 |
|
Datasheet |
8-CDIP (0.300", 7.62mm) | REF02 | Tube | Active | Series | - | 5V | - | - | ±0.3% | - | - | - | - | - | - | - | - | - | Through Hole | 8-CERDIP |
|
AD584TH/883BIC VREF SERIES 0.14% TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Tube | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.14% | 20ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-99-8 |
|
AD581KHIC VREF SERIES 0.1% TO5-3 |
0 |
|
Datasheet |
TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.1% | 15ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-5-3 |
|
AD580KHIC VREF SERIES 1% TO52-3 |
0 |
|
Datasheet |
TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 40ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-52-3 |
|
|
AD584THIC VREF SERIES 0.14% TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.14% | 20ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|

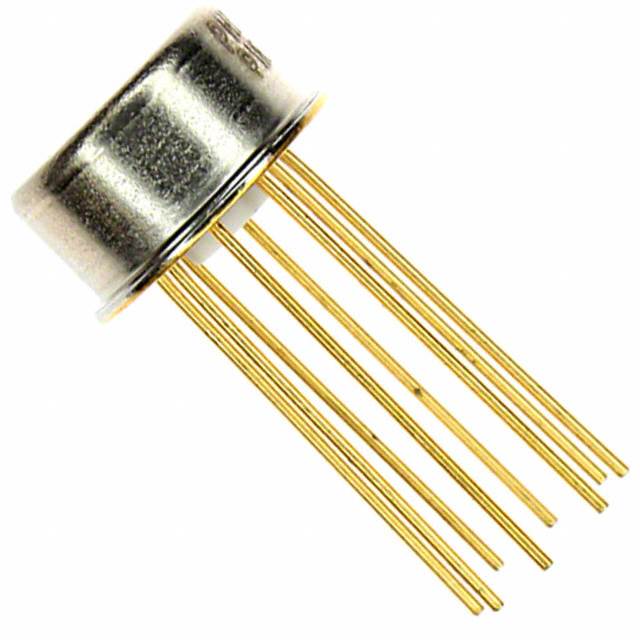

ADR1000AHZIC VREF SERIES 6.62V TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Box | Active | Series, Buried Zener | Fixed | 6.62V | - | - | - | 0.2ppm/°C | 0.14ppmp-p | - | - | - | - | -40°C ~ 125°C | - | - | Through Hole | TO-99-8 |
|
TLVH431AIPKIC VREF SHUNT ADJ 1% SOT89-3 |
1,180 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1% | - | - | - | - | - | 100 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
AP431SHBRTR-G1IC VREF SHUNT ADJ 1% SOT89-3 |
990 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AP431SHARTR-G1IC VREF SHUNT ADJ 0.5% SOT89-3 |
950 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AS431BRTR-G1IC VREF SHUNT ADJ SOT89 |
933 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±1% | 20ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
AP431SARTR-G1IC VREF SHUNT ADJ 0.5% SOT89-3 |
628 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 100 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-89-3 |
|
|
TLVH431IPKIC VREF SHUNT ADJ 1.5% SOT89-3 |
1,540 |
|
Datasheet |
TO-243AA | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 1.24V | 18 V | 70 mA | ±1.5% | - | - | - | - | - | 100 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-89-3 |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
