Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT1034IZ-2.5#PBFLT1034 - MICROPOWER DUAL REFEREN |
2,554 |
|
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | - | Bulk | Active | Shunt, Dual | Fixed | 2.5V, 7V | - | 20 mA | ±1.6% | 40ppm/°C, - | 6µVp-p | - | - | - | 30 µA | -40°C ~ 85°C (TA) | - | - | Through Hole | TO-92-3 |
|
LT1389ACS8-1.25#TRIC VREF SHUNT 0.05% 8SOIC |
2,791 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | Shunt | Fixed | 1.25V | - | 20 mA | ±0.05% | 10ppm/°C | 25µVp-p | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|

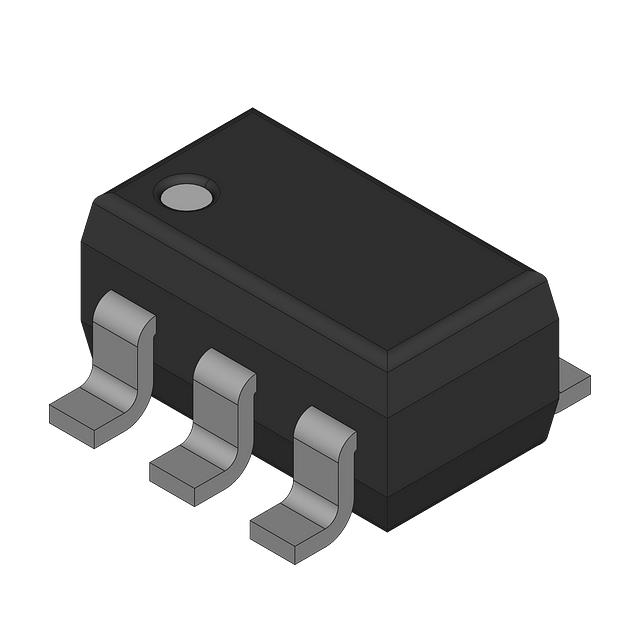

MAX6033BAUT25Three Terminal Voltage Reference |
3,369 |
|
Datasheet |
SOT-23-6 | - | Bulk | Obsolete | Series | Fixed | 2.5V | - | 15 mA | ±0.2% | 15ppm/°C | 16µVp-p | 12µVrms | 2.7V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
LM236AH-5.0/NOPBLM136-5.0 5.0V REFERENCE DIODE |
1,164 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Fixed | 5V | - | 10 mA | ±1% | - | - | - | - | - | 600 µA | -25°C ~ 85°C (TA) | - | - | Through Hole | TO-46-3 |
|
LM185H-1.2/NOPBLM185-1.2-N MICROPOWER VOLTAGE R |
406 |
|
Datasheet |
TO-46-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-2, Metal Can |
|
|
LM185H-2.5/NOPBLM185-2.5-N MICROPOWER VOLTAGE R |
695 |
|
Datasheet |
TO-46-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 150ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-46-2, Metal Can |
|
LM185BHIC VREF SHUNT ADJ 1% TO99-8 |
264 |
|
Datasheet |
TO-206AB, TO-46-3 Metal Can | - | Bulk | Active | Shunt | Adjustable | 1.24V | 5.3 V | 20 mA | ±1% | 150ppm/°C | - | 50µVrms | - | - | 45 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
LM103H-3.0LM103 - TWO TERMINAL VOLTAGE REF |
1,641 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM103H-3.3LM103 - TWO TERMINAL VOLTAGE REF |
219 |
|
Datasheet |
TO-204AA, TO-3 | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-3-2 |
|

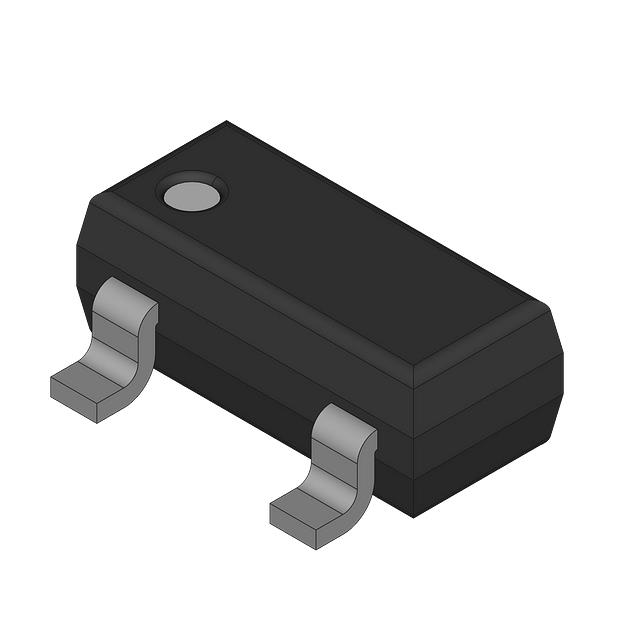

LM4050BIM3-4.1+LM4050 - Precision Micropower Sh |
3,094 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Shunt | Fixed | 4.096V | - | 15 mA | ±0.2% | 50ppm/°C | - | 64µVrms | - | - | 73 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
5962-8759401VYATWO TERMINAL VOLTAGE REFERENCE, |
145 |
|
Datasheet |
10-CSOIC (0.241", 6.12mm Width) | - | Bulk | Active | Shunt | Fixed | 1.2V | - | 20 mA | ±1% | 50ppm/°C | - | - | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-CFP |
|
LM4040CIM3-4.1/NOPBIC VREF SHUNT 0.5% SOT23-3 |
371 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.096V | - | 15 mA | ±0.5% | 100ppm/°C | - | 80µVrms | - | - | 73 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
MCP1501T-33E/SNIC VREF SERIES 0.1% 8SOIC |
144 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.1% | 50ppm/°C | - | - | 3.5V ~ 5.5V | 550µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LM4040AIM3-10.0/NOPBIC VREF SHUNT 0.1% SOT23-3 |
93 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 10V | - | 15 mA | ±0.1% | 100ppm/°C | - | 180µVrms | - | - | 103 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
REF191ESZIC VREF SERIES 0.1% 8SOIC |
66 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Active | Series | Fixed | 2.048V | - | 30 mA | ±0.1% | 5ppm/°C | 20µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX6241BESA+TIC VREF SERIES 0.1% 8SOIC |
65 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series, Buried Zener | Fixed | 4.096V | - | 15 mA | ±0.1% | 7ppm/°C | 2.4µVp-p | 2µVrms | 8V ~ 36V | 3.2mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LT1460ACS8-2.5#PBFIC VREF SERIES 0.075% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 40 mA | ±0.075% | 10ppm/°C | 10µVp-p | 10µVrms | 3.4V ~ 20V | 165µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
ADR445BRZ-REEL7IC VREF SERIES 0.04% 8SOIC |
15 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | XFET® | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.04% | 3ppm/°C | 2.25µVp-p | - | 5.5V ~ 18V | 3.75mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT6657AHMS8-1.25#PBFIC VREF SERIES 0.1% 8MSOP |
88 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 1.25V | - | 10 mA | ±0.1% | 1.5ppm/°C | 0.5ppmp-p | 0.8ppmrms | 1.5V ~ 40V | 1.2mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP |
|
|
LT1389ACS8-1.25#PBFIC VREF SHUNT 0.05% 8SOIC |
8 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt | Fixed | 1.25V | - | 20 mA | ±0.05% | 10ppm/°C | 25µVp-p | - | - | - | 600 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
