Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADR291WFRZ-R7IC VREF SERIES 0.33% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.33% | 15ppm/°C | 8µVp-p | - | 3V ~ 15V | 15µA | - | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 8-SOIC |
|
REF02HJIC PREC VOLT REFERENCE 5V TO-99 |
11,093 |
|
Datasheet |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LM185BHIC VREF SHUNT ADJ 1% TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Shunt | Adjustable | 1.24V | 5.3 V | 20 mA | ±1% | 150ppm/°C | - | 50µVrms | - | - | 45 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
REF01CJIC VREF SERIES 1% TO99-8 |
0 |
|
Datasheet |
TO-99-8 Metal Can | REF01 | Bulk | Active | Series | Fixed | 10V | - | 8 mA | ±1% | 65ppm/°C | 35µVp-p | - | 13V ~ 33V | 1.6mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-99-8 |
|
MX584KHVOLTAGE REFERENCE |
2,190 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±20mV | 15ppm/°C | 50µVp-p | - | 4.5V ~ 40V | 1mA | - | 0°C ~ 70°C | - | - | Through Hole | TO-99-8 |
|
DS4303KDS4303 PROGRAMMABLE VOLTAGE REF |
426 |
|
Datasheet |
SC-74A, SOT-753 | - | Bulk | Active | Series | Adjustable | 300mV | 3.3 V | 1 mA | ±0.03% | 62ppm/°C | 200µVp-p | 26µVp-p | 2.4V ~ 3.6V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
REF01EJIC VOLT REF PREC 10V TO99-8 |
1,914 |
|
- |
TO-99-8 Metal Can | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | TO-99-8 |
|
LM185BYH-1.2IC VREF SHUNT 1% TO2 |
0 |
|
Datasheet |
TO-46-2 Metal Can | - | Box | Obsolete | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 50ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-2 |
|
LT6654AMPS6-2.048#TRPBFIC VREF SERIES 0.05% TSOT23-6 |
0 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 10ppm/°C | 1ppmp-p | 2ppmrms | 2.548V ~ 36V | 600µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|

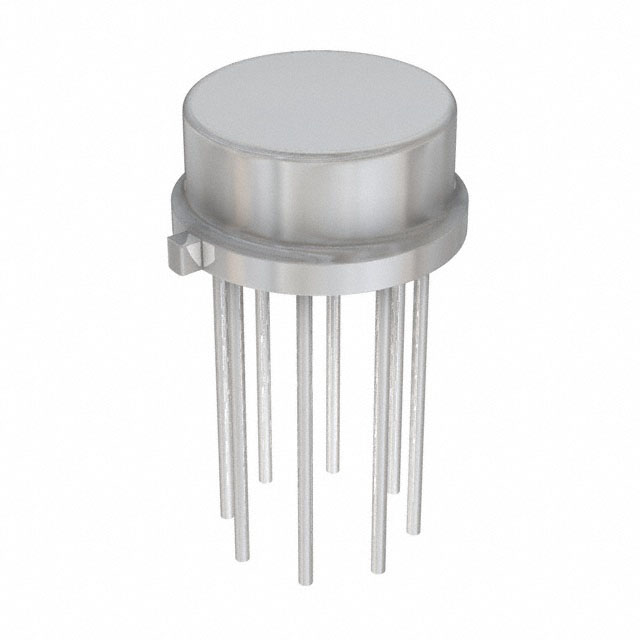

5962-8947902GAVOLTAGE REFERENCE (REF10BJ) |
355 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±3% | 8.5ppm/°C | 30µVp-p | - | 40V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
MAX6350CPAIC VREF SERIES 0.02% 8DIP |
0 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Series, Buried Zener | Fixed | 5V | - | 15 mA | ±0.02% | 1ppm/°C | 3µVp-p | 2.5µVrms | 8V ~ 36V | 3.3mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
LM169HVOLTAGE REFERENCE |
308 |
|
Datasheet |
TO-99-8 Metal Can | - | Bulk | Active | Series, Shunt, Buried Zener | Fixed | 10V | - | 50 mA | - | 5ppm/°C | 4µVp-p | 4µVrms | 35V | 2mA | - | -55°C ~ 125°C | - | - | Through Hole | TO-99-8 |
|
MX581THMX581 10V REFERENCE |
1,308 |
|
Datasheet |
TO-205AD, TO-39-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±1% | 15ppm/°C | 50µVp-p | - | 12.5V ~ 30V | 1mA | - | -55°C ~ 125°C | - | - | Through Hole | TO-39 |
|
FAN4040AIS333XVOLTAGE REFERENCE |
2,670 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 3.3V | - | 25 mA | ±0.1% | 100ppm/°C | - | 70µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AD584IRTHREE TERMINAL VOLTAGE REFERENCE |
823 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
5962-8958102GA10V PRECISION V REF (REF01) |
369 |
|
Datasheet |
TO-99-8 Metal Can | REF01 | Bulk | Active | Series | Fixed | 10V | - | - | - | - | 30µVp-p | - | 12V ~ 36V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
UC137LANALG VOLT REF & OTHER |
215 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AD589THIC VREF SHUNT -2.83%/+1.22% TO51 |
2,554 |
|
Datasheet |
TO-51-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 5 mA | -2.83%, +1.22% | 50ppm/°C | - | 5µVrms | - | - | 50 µA | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-51-2 |
|
AD588JQTHREE TERMINAL VOLTAGE REFERENCE |
20,870 |
|
Datasheet |
16-CDIP (0.300", 7.62mm) | - | Bulk | Active | Series | Programmable | ±5V, ±10V | - | 10 mA | ±0.03% | 3ppm/°C | 6µVp-p | - | 10.8V ~ 36V | 10mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-CERDIP |
|
5962-89581022ALINEAR, POSITIVE 10-VOLT ADJUSTA |
892 |
|
Datasheet |
20-CLCC | REF01 | Bulk | Active | Series | Fixed | 10V | - | 8 mA | ±1% | 65ppm/°C | 30µVp-p | - | 12V ~ 36V | 2mA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-CLCC (9x9) |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
