Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF198FSIC VREF SERIES PREC 4.096V 8SOIC |
38,943 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
|

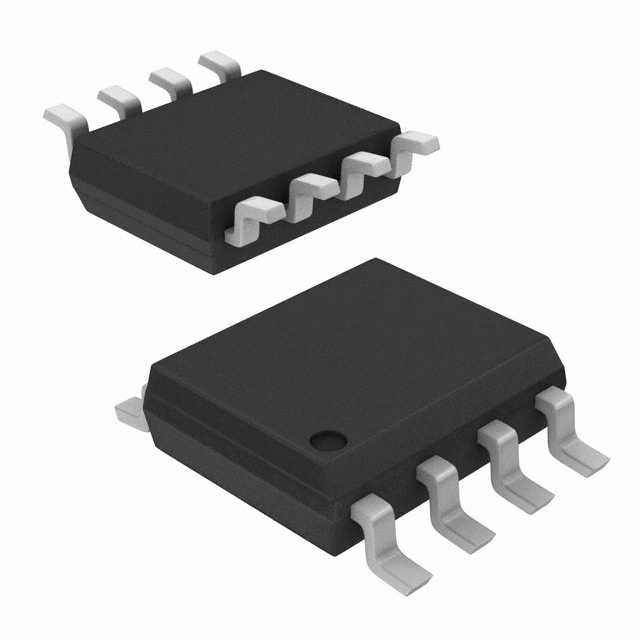

REF01HSIC PREC VOLT REFERENCE 10V 8SOIC |
16,111 |
|
- |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ICL8069BCSAIC VREF SHUNT 1.626% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Shunt | Fixed | 1.23V | - | 5 mA | ±1.626% | 25ppm/°C | - | 5µVp-p | - | - | 50 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX6330SURIC REG LIN PRECISION SHUNT REG |
1,570 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 3V | - | 50 mA | ±1.5% | 40ppm/°C Typical | - | - | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4040AEX3-3.0PRECISION MICROPOWER SHUNT VREF |
1,396 |
|
Datasheet |
SC-70, SOT-323 | - | Bulk | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.1% | 100ppm/°C | - | 45µVrms | - | - | 67 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-3 |
|
MAX6330TURIC REG LIN PRECISION SHUNT REG |
360 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Shunt | Fixed | 3.3V | - | 50 mA | ±1.5% | 40ppm/°C Typical | - | - | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LT6656BIS6-4.096#TRMPBFIC VREF SERIES 0.1% TSOT23-6 |
305 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.1% | 20ppm/°C | 30ppmp-p | - | 4.596V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
LT6656BIDC-2.048#TRMPBFIC VREF SERIES 0.2% 6DFN |
54 |
|
Datasheet |
6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | - | 2.548V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BIDC-3#TRMPBFIC VREF SERIES 0.2% 6DFN |
50 |
|
Datasheet |
6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | - | 3.5V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BIDC-4.096#TRMPBFIC VREF SERIES 0.2% 6DFN |
50 |
|
Datasheet |
6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | - | 4.596V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BIS6-2.5#TRPBFIC VREF SERIES 0.1% TSOT23-6 |
0 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.1% | 20ppm/°C | 30ppmp-p | 80µVrms | 3V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
LT6656BIS6-5#TRMPBFIC VREF SERIES 0.1% TSOT23-6 |
0 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 5 mA | ±0.1% | 20ppm/°C | 30ppmp-p | 140µVrms | 5.5V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
LT6656BIDC-2.5#TRMPBFIC VREF SERIES 0.2% 6DFN |
0 |
|
Datasheet |
6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | 80µVrms | 3V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
LT6656BIDC-5#TRMPBFIC VREF SERIES 0.2% 6DFN |
0 |
|
Datasheet |
6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | 140µVrms | 5.5V ~ 18V | 1.5µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
|
MAX6198BESAIC VREF SERIES 0.12% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 4.096V | - | 500 µA | ±0.12% | 10ppm/°C | 100µVp-p | 200µVrms | 4.296V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6194BESAIC VREF SERIES 0.11% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 4.5V | - | 500 µA | ±0.11% | 10ppm/°C | 110µVp-p | 215µVrms | 4.7V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6195BESAIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 5V | - | 500 µA | ±0.1% | 10ppm/°C | 120µVp-p | 240µVrms | 5.2V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6167BESAIC VREF SERIES 0.11% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 4.5V | - | 5 mA | ±0.11% | 10ppm/°C | 55µVp-p | 55µVrms | 4.7V ~ 12.6V | 120µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6191BESAIC VREF SERIES 0.24% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 2.048V | - | 500 µA | ±0.24% | 10ppm/°C | 40µVp-p | 105µVrms | 2.5V ~ 12.6V | 35µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6161BESAIC VREF SERIES 0.32% 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 1.25V | - | 5 mA | ±0.32% | 15ppm/°C | 20µVp-p | 15µVrms | 2.5V ~ 12.6V | 150µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
