Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPR5012-SO1RIC VREF SERIES 1.25V 8SOIC |
3,880 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOP |
|
LM4050BEM3-3.0/V+TIC VREF SHUNT 0.2% SOT23-3 |
2,299 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.2% | 50ppm/°C | - | 45µVrms | - | - | 67 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
REF02CSA+TIC VREF SERIES 1% 8SOIC |
2,264 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | REF02 | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 21 mA | ±1% | 65ppm/°C | 12µVp-p | - | 8V ~ 30V | 1.6mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LT6654BHS6-3#WTRMPBFIC VREF SERIES 0.1% TSOT23-6 |
458 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.1% | 20ppm/°C | 1.6ppmp-p | 2ppmrms | 3.5V ~ 36V | 600µA | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TSOT-23-6 |
|
|
LT6654BHS6-2.048#WTRMPBFIC VREF SERIES 0.1% TSOT23-6 |
305 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.1% | 20ppm/°C | 1ppmp-p | 2ppmrms | 2.548V ~ 36V | 600µA | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TSOT-23-6 |
|
|
LT6654BHS6-3.3#WTRMPBFIC VREF SERIES 0.1% TSOT23-6 |
154 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 10 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 3.8V ~ 36V | 600µA | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | TSOT-23-6 |
|
LT6658BHDE-3#PBFIC VREF SERIES 6V 0.1% 16DFN |
150 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.6ppmp-p | 2ppmrms | 4.2V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
LT6658BHMSE-1.2#PBFIC VREF SERIES 6V 0.1% 16MSOP |
148 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 1.2V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 0.8ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.2mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
MAX6138BEXR33+TIC VREF SHUNT 3.3V SC70 |
8,128 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3.3V | - | 15 mA | ±0.2% | 25ppm/°C | - | 50µVrms | - | - | 67 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
|
MAX6138BEXR12+TIC VREF SHUNT 0.2% SC70-3 |
3,715 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 1.2205V | - | 15 mA | ±0.2% | 25ppm/°C | - | 20µVrms | - | - | 60 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
|
MAX6166BESA+TIC VREF SERIES 2.5V 8SOIC |
1,556 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 5 mA | ±0.2% | 10ppm/°C | 27µVp-p | 30µVrms | 2.7V ~ 12.6V | 120µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX6037AAUK21+TIC VREF SERIES 2.048V SOT23-5 |
3,717 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 5 mA | ±0.2% | 25ppm/°C | 11µVp-p | 25µVrms | 2.5V ~ 5.5V | 275µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MAX6138BEXR50+TIC VREF SHUNT 5V SC70 |
2,178 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.2% | 25ppm/°C | - | 80µVrms | - | - | 80 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-3 |
|
MAX6037AAUK33+TIC VREF SERIES 3.3V SOT23-5 |
2,267 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 5 mA | ±0.2% | 25ppm/°C | 19µVp-p | 45µVrms | 3.5V ~ 5.5V | 275µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
LT1461CIS8-2.5#TRPBFIC VREF SERIES 0.08% 8SOIC |
1,182 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 100 mA | ±0.08% | 12ppm/°C | 8ppmp-p | 9.6ppmrms | 3V ~ 20V | 70µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
TPR5030-SO1RIC VREF SERIES 8SOIC |
3,997 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
TPR5050-SO1RIC VREF SERIES 8SOIC |
3,725 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOP |
|

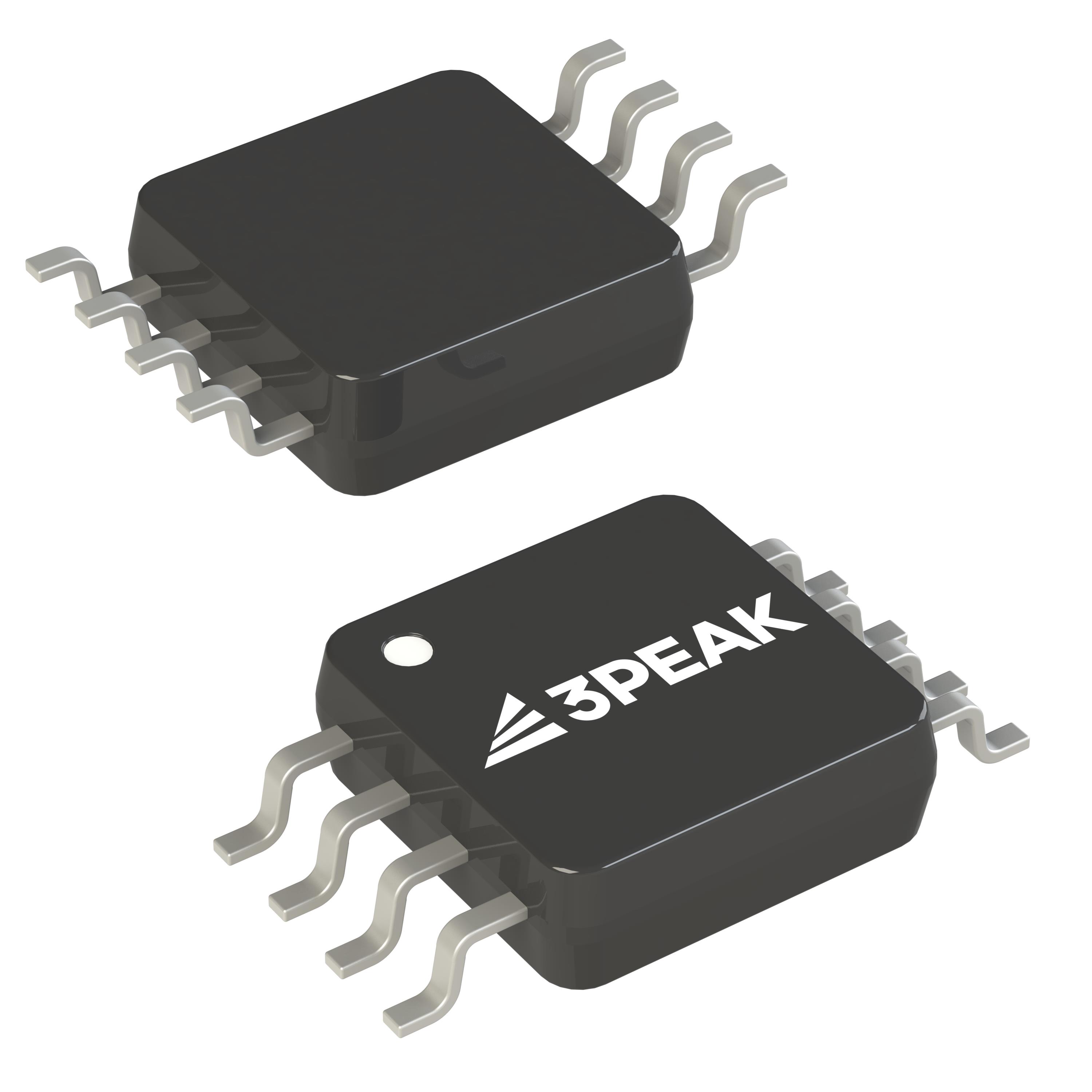

TPR5020-VS1R-SIC VREF SERIES 2.048V 8TSSOP |
3,000 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | TPR50 | Tape & Reel (TR) | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
TPR5045-VS1R-SIC VREF SERIES 8TSSOP |
3,000 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | TPR50 | Tape & Reel (TR) | Active | Series | Fixed | 4.5V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
TPR5030-VS1R-SIC VREF SERIES 8TSSOP |
2,997 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | TPR50 | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.05% | 6ppm/°C | 3µVp-p | - | 3V ~ 15V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
Voltage Reference Electronic Components
Explore Voltage Reference electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
