Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL60002DIH325Z-TKIC VREF SERIES 0.2% SOT23-3 |
20,434 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 7 mA | ±0.2% | 20ppm/°C | 30µVp-p | - | 2.7V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ISL60002DAH333Z-TKIC VREF SERIES 0.15% SOT23-3 |
3,845 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 20 mA | ±0.15% | 20ppm/°C | 30µVp-p | - | 3.5V ~ 5.5V | 700nA | - | -40°C ~ 105°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ISL60002DIH310Z-TKIC VREF SERIES 0.49% SOT23-3 |
3,063 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | FGA™ | Tape & Reel (TR) | Active | Series | Fixed | 1.024V | - | 7 mA | ±0.49% | 20ppm/°C | 30µVp-p | - | 2.7V ~ 5.5V | 900nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM4140CCM-4.1/NOPBIC VREF SERIES 0.1% 8SOIC |
515 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 4.096V | - | 8 mA | ±0.1% | 10ppm/°C | 2.2µVp-p | - | 1.8V ~ 5.5V | 400µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
MAX6035BAUR50+TIC VREF SERIES 0.5% SOT23-3 |
13,108 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.5% | 75ppm/°C | 68µVp-p | 48µVrms | 6.9V ~ 33V | 100µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
LM4040AIM3-3.0+TIC VREF SHUNT 0.1% SOT23-3 |
9,769 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.1% | 100ppm/°C | - | 45µVrms | - | - | 67 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ADR525BRTZ-REEL7IC VREF SHUNT 0.2% SOT23-3 |
9,213 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 15 mA | ±0.2% | 40ppm/°C | 18µVp-p | - | - | - | 50 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
ADR530BRTZ-REEL7IC VREF SHUNT 0.2% SOT23-3 |
278 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.2% | 40ppm/°C | 22µVp-p | - | - | - | 50 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
REF2033AIDDCTIC VREF SERIES 0.05% SOT23-5 |
2,664 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.65V, 3.3V | - | 20 mA | ±0.05% | 8ppm/°C | 12ppmp-p | - | 3.32V ~ 5.5V | 460µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|
|
REF2030AIDDCTIC VREF SERIES 0.05% SOT23-5 |
1,920 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.5V, 3V | - | 20 mA | ±0.05% | 8ppm/°C | 12ppmp-p | - | 3.02V ~ 5.5V | 460µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|
|
REF2041AIDDCTIC VREF SERIES 0.05% SOT23-5 |
1,665 |
|
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.048V, 4.096V | - | 20 mA | ±0.05% | 8ppm/°C | 12ppmp-p | - | 4.116V ~ 5.5V | 460µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-THIN |
|
MAX6071BAUT25+TIC VREF SERIES 0.08% SOT23-6 |
11,557 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.08% | 8ppm/°C | 4.8µVp-p | 6µVrms | 2.8V ~ 5.5V | 300µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6070BAUT25+TIC VREF SERIES 0.08% SOT23-6 |
4,146 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.08% | 8ppm/°C | 4.8µVp-p | 3µVrms | 2.8V ~ 5.5V | 300µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|

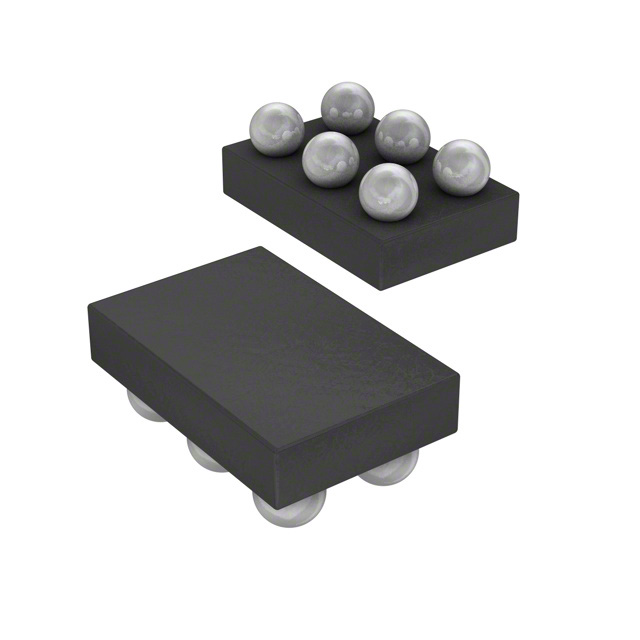

MAX6071ANT25+TIC VREF SERIES 0.1% 6WLP |
3,031 |
|
Datasheet |
6-XFBGA, WLBGA | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 6ppm/°C | 4.8µVp-p | 6µVrms | 2.8V ~ 5.5V | 300µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-WLP (1.42x0.78) |
|
LM4030AMF-2.5/NOPBIC VREF SHUNT 0.05% SOT23-5 |
2,542 |
|
Datasheet |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 2.5V | - | 30 mA | ±0.05% | 20ppm/°C | 105µVp-p | - | - | - | 120 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
MAX6071BAUT12+TIC VREF SERIES 0.08% SOT23-6 |
2,424 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 10 mA | ±0.08% | 8ppm/°C | 3.6µVp-p | 5µVrms | 2.7V ~ 5.5V | 260µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6071BAUT41+TIC VREF SERIES 0.08% SOT23-6 |
2,235 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 4.096V | - | 10 mA | ±0.08% | 8ppm/°C | 9.6µVp-p | 12µVrms | 4.3V ~ 5.5V | 350µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6070BAUT30+TIC VREF SERIES 0.08% SOT23-6 |
3,611 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.08% | 8ppm/°C | 4.6µVp-p | 5µVrms | 3.2V ~ 5.5V | 300µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6070BAUT12+TIC VREF SERIES 0.08% SOT23-6 |
9,446 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 1.25V | - | 10 mA | ±0.08% | 8ppm/°C | 3.6µVp-p | 2.5µVrms | 2.7V ~ 5.5V | 260µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
|
|
MAX6071BAUT30+TIC VREF SERIES 0.08% SOT23-6 |
6,141 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 3V | - | 10 mA | ±0.08% | 8ppm/°C | 4.6µVp-p | 7.8µVrms | 3.2V ~ 5.5V | 300µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-6 |
