Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT6658AHMSE-2.5#PBFIC VREF SERIES 6V 0.05% 16MSOP |
107 |
|
Datasheet |
16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 2.5V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 1.5ppmp-p | 2ppmrms | 3.5V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT6658AHDE-1.2#PBFIC VREF SERIES 6V 0.05% 16DFN |
95 |
|
Datasheet |
16-WFDFN Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 1.2V | 6 V | 150 mA | ±0.05% | 10ppm/°C | 0.8ppmp-p | 2ppmrms | 3.5V ~ 36V | 3.2mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
MAX6175BASA/V+IC VREF SERIES 0.1% 8SOIC |
281 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 5V | - | 30 mA | ±0.1% | 10ppm/°C | 9µVp-p | 14.5µVrms | 7V ~ 40V | 700µA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
LTC6655LNCHMS8-4.096#PBFIC VREF SERIES 8TSSOP |
195 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 4.096V | - | 5 mA | ±0.05% | 5ppm/°C | 0.12ppmp-p | 0.21ppmrms | 13.2V | 7.5mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
LT1389BCS8-4.096#PBFIC VREF SHUNT 0.075% 8SOIC |
30 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt | Fixed | 4.096V | - | 10 mA | ±0.075% | 50ppm/°C | 80µVp-p | - | - | - | 1 µA | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1034IS8-1.2#PBFIC VREF SHUNT 1.225V/7V 8SOIC |
75 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt, Dual | Fixed | 1.225V, 7V | - | 20 mA | ±1.2% | 40ppm/°C, - | 4µVp-p | - | - | - | 20 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
REF6245IDGKTIC VREF SERIES 0.05% 8VSSOP |
237 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 4.5V | - | 3.5 mA | ±0.05% | 3ppm/°C | 3µVp-p | - | 4.75V ~ 5.5V | 1.15mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
LT6654BMPS6-5#TRMPBFIC VREF SERIES 0.1% TSOT23-6 |
2,056 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 10 mA | ±0.1% | 20ppm/°C | 2.2ppmp-p | 2ppmrms | 5.5V ~ 36V | 600µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
LT6654BMPS6-2.5#TRMPBFIC VREF SERIES 0.1% TSOT23-6 |
357 |
|
Datasheet |
SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 20ppm/°C | 1.5ppmp-p | 2ppmrms | 3V ~ 36V | 600µA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|

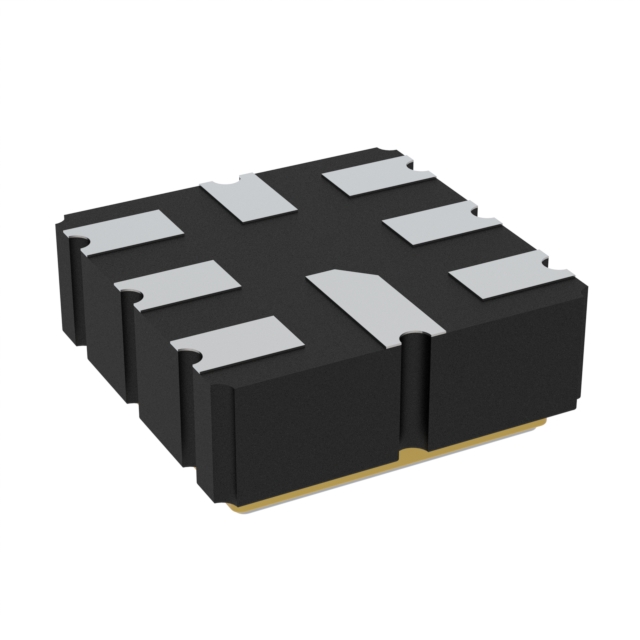

MAX6079ALA25+IC VREF SERIES 0.04% 8LCC |
167 |
|
Datasheet |
8-CLCC | - | Tray | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 6ppm/°C | 4.8µVp-p | 6µVrms | 2.8V ~ 5.5V | 330µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LCC (3x3) |
|
LT1236ACN8-5#PBFIC VREF PRECISION 0.05% 8DIP |
126 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series, Buried Zener | Fixed | 5V | - | 10 mA | ±0.05% | 5ppm/°C | 3µVp-p | 2.2µVrms | 7.2V ~ 40V | 1.5mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
REF6250IDGKTIC VREF SERIES 0.05% 8VSSOP |
111 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 3 mA | ±0.05% | 3ppm/°C | 3µVp-p | - | 5.3V ~ 5.5V | 1.15mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
MAX6133BASA25+IC VREF SERIES 0.08% 8SOIC |
155 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 15 mA | ±0.08% | 10ppm/°C | 16µVp-p | 12µVrms | 2.7V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LT1236ACS8-5#PBFIC VREF PRECISION 0.05% 8SOIC |
4,084 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series, Buried Zener | Fixed | 5V | - | 10 mA | ±0.05% | 5ppm/°C | 3µVp-p | 2.2µVrms | 7.2V ~ 40V | 1.5mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
MAX6173AASA+IC VREF SERIES 0.06% 8SOIC |
82 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 2.5V | - | 30 mA | ±0.06% | 3ppm/°C | 3.8µVp-p | 6.8µVrms | 4.5V ~ 40V | 600µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MAX6133A30+IC VREF SERIES 0.06% 8UMAX |
104 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | Series | Fixed | 3V | - | 15 mA | ±0.06% | 7ppm/°C | 24µVp-p | 15µVrms | 3.2V ~ 12.6V | 85µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
LT1021BCN8-7#PBFIC VREF PRECISION 7V 8DIP |
778 |
|
Datasheet |
8-DIP (0.300", 7.62mm) | - | Tube | Active | Series, Shunt, Buried Zener | Fixed | 7V | - | 10 mA | ±0.71% | 5ppm/°C | 4µVp-p | 2.5µVrms | 8.5V ~ 40V | 1.5mA | 1.2 mA | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
LT1461BIS8-2.5#TRPBFIC VREF SERIES 0.06% 8SOIC |
1,948 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Series | Fixed | 2.5V | - | 100 mA | ±0.06% | 7ppm/°C | 8ppmp-p | 9.6ppmrms | 3V ~ 20V | 70µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LT1461BIS8-5#PBFIC VREF SERIES 0.06% 8SOIC |
179 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 5V | - | 100 mA | ±0.06% | 7ppm/°C | 8ppmp-p | 9.6ppmrms | 5.5V ~ 20V | 70µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
LT1236AILS8-5#PBFIC VREF PRECISION 0.05% 8CLCC |
47 |
|
Datasheet |
8-CLCC | - | Tray | Active | Series, Buried Zener | Fixed | 5V | - | 10 mA | ±0.05% | 5ppm/°C | 3µVp-p | 2.2µVrms | 7.2V ~ 40V | 1.5mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-CLCC (5x5) |
