Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC2077-2YMIC PWR SWITCH N-CH 2X1:2 16SOIC |
236 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Active | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MIC2077-1YMIC PWR SWITCH N-CH 2X1:2 16SOIC |
235 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Active | USB Switch | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 100mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
IPS160HIC PWR SWTCH P-CHAN 1:1 PWRSSO12 |
3,572 |
|
Datasheet |
12-PowerLSOP (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 8V ~ 60V | Not Required | 2.5A | 60mOhm | Non-Inverting | - | Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|
NCP45780IMN24RTWG780 MCM |
2,183 |
|
Datasheet |
12-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 2:1 | High/Low Side | N-Channel | Logic | 3V ~ 24V | 3V ~ 5.5V | 20A | - | Non-Inverting | Power Good, Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-DFN (3x3) |
|
TPS1HA08BQPWPRQ1POWER MANAGEMENT |
8,653 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 80A | 9mOhm | Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
|
TPS1HA08EQPWPRQ1POWER MANAGEMENT |
5,645 |
|
Datasheet |
16-PowerTSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 20A | 9mOhm | Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HTSSOP |
|
|
BTS710336ESPXUMA1SPOC PG-TSDSO-24 |
2,807 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | SPOC™ | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 5 | 1:5 | High Side | N-Channel | PWM, SPI | 6V ~ 28V | 3V ~ 5.5V | 1.5A, 1.5A, 1.5A, 3A, 3A | 22.5mOhm, 70mOhm | Non-Inverting | Load Discharge, PWM Input, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Load, Over Temperature, Over Voltage, Reverse Battery, Short Circuit, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24-42 |
|
TPS2551DBVTIC PWR SWITCH N-CHAN 1:1 SOT23-6 |
1,624 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 6.5V | Not Required | 1.1A | 85mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
TPS2013DIC PWR SWITCH N-CHAN 1:1 8SOIC |
79 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Not For New Designs | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 75mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
VN5E010MHTR-EIC PWR SWITCH N-CHAN 1:1 6HPAK |
9,347 |
|
Datasheet |
TO-252-7, DPAK (6 Leads + Tab) | VIPower™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 60A | 10mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | HPAK |
|

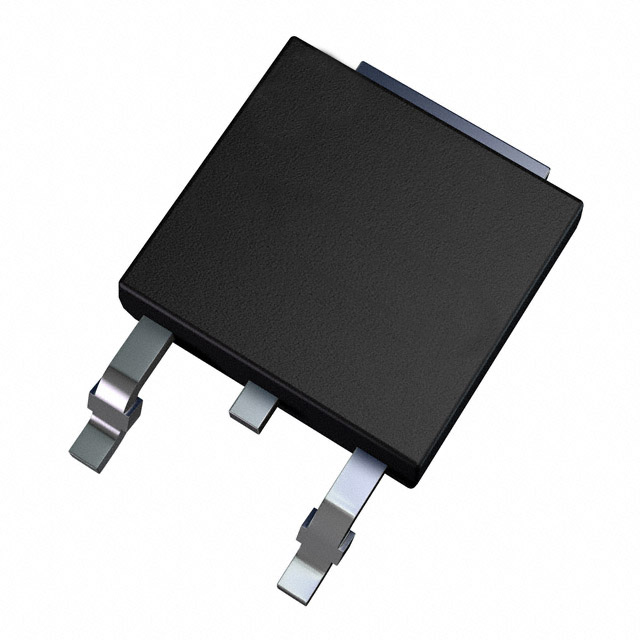

BV1LB045FPJ-CE1IC PWR SWTCH N-CHAN 1:1 TO252-J3 |
5,583 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 18A | 45mOhm | CMOS | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TO-252-J3 |
|
NCV47822PAAJR2GIC PWR SWTCH BIPOLAR 1:1 14TSSOP |
4,916 |
|
Datasheet |
14-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | Bipolar | On/Off | 4.4V ~ 40V | Not Required | 350mA | - | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP-EP |
|
|
AOZ13929DI-0123V/13.5M TYPE C SW W/TVS |
4,931 |
|
Datasheet |
17-PowerVFDFN | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 23V | Not Required | 10A | 13.5mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 17-DFN (3.2x5.5) |
|
NCV7750DPR2GIC PWR DRIVER N-CHAN 1:4 24SSOP |
4,523 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Relay, Solenoid Driver | 4 | 1:4 | Low Side | N-Channel | SPI | 36V (Max) | 3V ~ 5.5V | 600mA | 1.1Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 24-SSOP |
|
NCV84140DR2GSELF-PROTECTED FET |
679 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 16A | 140mOhm | CMOS | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
VN7004SLHTRHIGH-SIDE DRIVER WITH CURRENTSEN |
5,193 |
|
Datasheet |
OctaPAK (7 Leads + Tab) | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | - | 4V ~ 28V | 135A | 4mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | OctaPAK 7+1 |
|
|
TPS2051DIC PWR SWITCH N-CHAN 1:1 8SOIC |
384 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
BTS612N1E3128AAUMA1IC PWR SWITCH |
776 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | Logic | 5V ~ 34V | Not Required | 4.4A | 160mOhm | Non-Inverting | Auto Restart, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-7-2 |
|
TPS2097DIC PWR SWITCH N-CHAN 1:1 16SOIC |
400 |
|
Datasheet |
16-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 250mA | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
TDE1707BFPIC PWR SWITCH BIPOLAR 1:2 8SO |
4,272 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 2 | 1:2 | High Side or Low Side | Bipolar | On/Off | 6V ~ 48V | Not Required | 500mA | - | Non-Inverting | 5V Regulated Output | Current Limiting (Fixed), Over Temperature | -25°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
