Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BUS1DJC3GWZ-E21CH ULTRA SMALL HIGH SIDE LOAD S |
1,201 |
|
Datasheet |
4-XFBGA, CSPBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 5V | Not Required | 2A | 140mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Short Circuit | -30°C ~ 85°C (TA) | - | - | Surface Mount | UCSP30L1 |
|
TPS2000CDGKIC PWR SWITCH N-CHAN 1:1 8VSSOP |
609 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Bulk | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2A | 72mOhm | Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TPS22924CYZPTIC PWR SWITCH N-CHAN 1:1 6DSBGA |
3,237 |
|
Datasheet |
6-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 2A | 18.3mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.39x.89) |
|
AP2161FMG-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
4,940 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 90mOhm | Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2018-6 |
|
TPS2065CDGNIC PWR SWITCH N-CHAN 1:1 8MSOP |
4,783 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 86mOhm | Non-Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
TPS22915BYFPTIC PWR SWITCH N-CHAN 1:1 4DSBGA |
3,872 |
|
Datasheet |
4-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.05V ~ 5.5V | Not Required | 2A | 37mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
AP2141FMG-7IC PWR SWITCH P-CHANNEL 1:1 6DFN |
3,115 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | U-DFN2018-6 |
|
|
TPS2001CDGKIC PWR SWITCH N-CHAN 1:1 8VSSOP |
883 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tube | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2A | 72mOhm | Non-Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
TPS22916CLYFPTIC PWR SWITCH P-CHAN 1:1 4DSBGA |
1,825 |
|
Datasheet |
4-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | - | 0V ~ 5.5V | 1V ~ 5.5V | 2A | 200mOhm | Inverting | Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
TPS22914CYFPTIC PWR SWITCH N-CHAN 1:1 4DSBGA |
32,854 |
|
Datasheet |
4-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.05V ~ 5.5V | Not Required | 2A | 37mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
TPS22915CYFPTIC PWR SWITCH N-CHAN 1:1 4DSBGA |
5,177 |
|
Datasheet |
4-XFBGA, DSBGA | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 1.05V ~ 5.5V | Not Required | 2A | 37mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSBGA |
|
|
TPS2001CDGNIC PWR SWITCH N-CHAN 1:1 8MSOP |
3,992 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 2A | 72mOhm | Non-Inverting | Output Discharge | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HVSSOP |
|
TPS22965NQWDSGRQ1IC PWR SWITCH N-CHAN 1:1 8WSON |
18,930 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.5V | 0.8V ~ 5.5V | 4A | 16mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 8-WSON (2x2) |
|

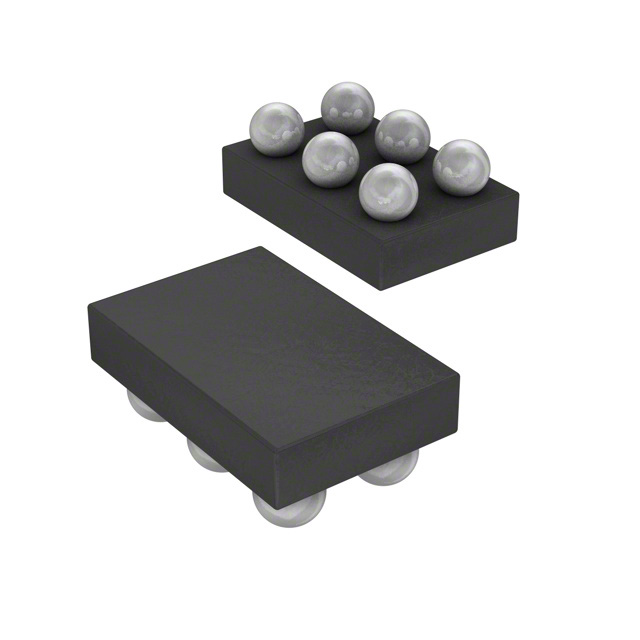

FPF2286UCXIC PWR DRIVER N-CHAN 1:1 6WLCSP |
6,470 |
|
Datasheet |
6-UFBGA, WLCSP | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.8V ~ 23V | Not Required | 3.5A | 25mOhm | Non-Inverting | Auto Restart | Over Temperature, Over Voltage, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.3x0.9) |
|
TPS22975NDSGTIC PWR SWITCH N-CHAN 1:1 8WSON |
6,053 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.5V ~ 5.7V | Not Required | 6A | 16mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature | -40°C ~ 105°C (TA) | - | - | Surface Mount | 8-WSON (2x2) |
|
NCP380HMU20AATBGIC PWR SWITCH P-CHAN 1:1 6UDFN |
2,726 |
|
Datasheet |
6-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2A | 55mOhm | Non-Inverting | Enable Input High, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (2x2) |
|
|
TPS2062CDGNRIC PWR SWITCH N-CHAN 1:2 8MSOP |
17,168 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 70mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-HVSSOP |
|
|
TPS2066CDGNR-2IC PWR SWITCH N-CHAN 1:2 8MSOP |
4,795 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 1A | 70mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-HVSSOP |
|
MIC2075-1YMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
2,786 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | MM8™ | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 90mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
MIC2544-2YMM-TRIC PWR SWITCH N-CHAN 1:1 8MSOP |
2,220 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
