Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VN7004CHIC PWR SWITCH N-CHAN 1:1 OCTAPAK |
0 |
|
Datasheet |
OctaPAK (7 Leads + Tab) | VIPOWER™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 4V ~ 28V | Not Required | 38A | 4mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | OctaPAK 7+1 |
|

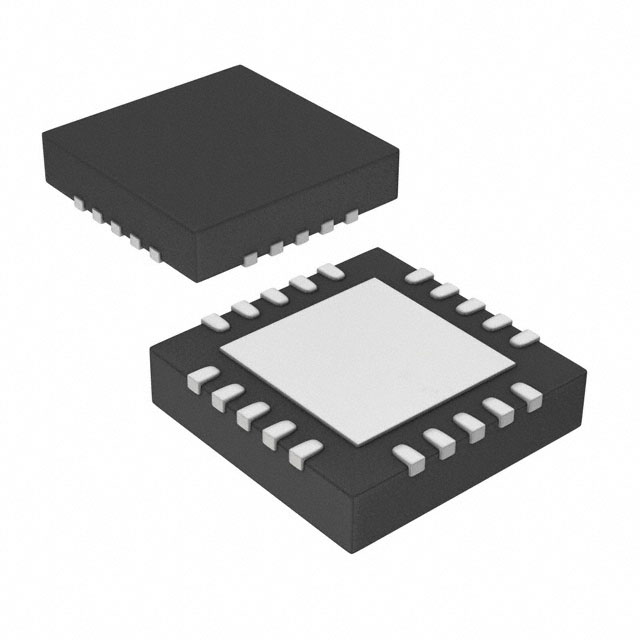

UCS2113T-1-V/G4VAODUAL USB PORT POWER SWITCH |
0 |
|
Datasheet |
20-VFQFN Exposed Pad | - | Tray | Active | USB Switch | 2 | 1:1 | High Side | - | I2C, SMBus | 2.9V ~ 5.5V | 4.5V ~ 5.5V | 3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
NCV8402DD1CR2GIC PWR DRIVER N-CHAN 1:1 8SOIC |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-SOIC |
|
|
NCV8402MNWCT1GIC PWR DRIVER N-CHAN 1:1 6DFN |
0 |
|
- |
6-VDFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 6-DFN (3x3) |
|
NCV8406STCT3GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V | Not Required | 7A | 185mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8406STCT1GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V | Not Required | 7A | 185mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8405STCT1GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 6A | 90mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8440STCT3GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | - | N-Channel | On/Off | 52V | Not Required | 2.6A | 95mOhm | Non-Inverting | - | Over Voltage | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8402STCT3GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8402STCT1GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 2A | 165mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8405STCT3GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 6A | 90mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
|
NCV8440STCT1GIC PWR MOSFET N-CH SOT223 |
0 |
|
- |
TO-261-4, TO-261AA | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | - | N-Channel | On/Off | 52V | Not Required | 2.6A | 95mOhm | Non-Inverting | - | Over Voltage | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
|
NCV8408DTCRKGIC POWER DRIVER N-CH DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 10A | 55mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
NCV8408DTDRKGIC POWER DRIVER N-CH DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Active | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 42V | Not Required | 10A | 55mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
BTS700201ESPXUMA1PROFET PG-TSDSO-24 |
0 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | 6V ~ 18V | Not Required | 23.3A | 2.3mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24 |
|
BTS700121ESPXUMA1PROFET PG-TSDSO-24 |
0 |
|
Datasheet |
24-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | 6V ~ 18V | Not Required | 31.3A | 1.4mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24 |
|
|
VND5T016ASP-EIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
0 |
|
Datasheet |
16-PowerBSOP (0.370", 9.40mm Width) | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 70A | 16mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
|
VND5T100LAJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
Datasheet |
12-LSOP (0.154", 3.90mm Width) Exposed Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 22A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|
|
AOZ1320CI-04_2IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
- |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 1.6A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
AOZ1374DIIC PWR SWITCH P-CH 10DFN |
0 |
|
Datasheet |
10-VFDFN Exposed Pad | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 3.4V ~ 23V | Not Required | 3.5A | 36mOhm | Non-Inverting | Auto Restart, Latch Function | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
Power Distribution Switches, Load Drivers Electronic Components
Explore Power Distribution Switches, Load Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
