Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

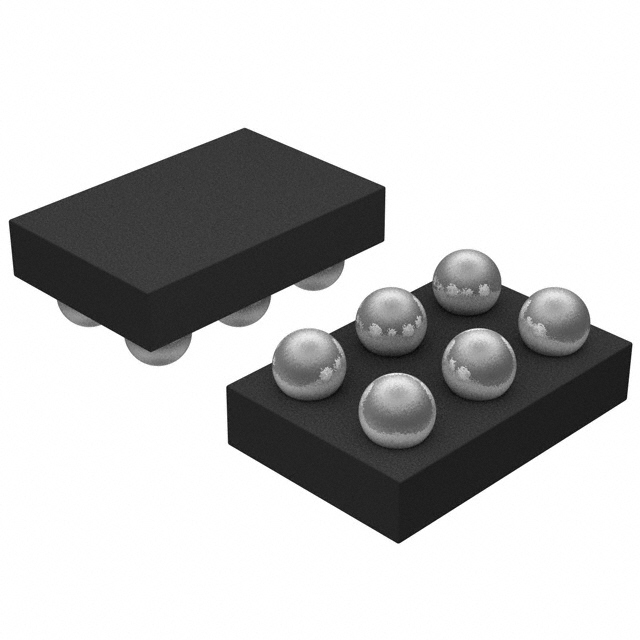

NX5P2924CUKZIC PWR SWITCH N-CHAN 1:1 6WLCSP |
0 |
|
Datasheet |
6-XFBGA, WLCSP | NX5 | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | Not Required | 2.5A | 18mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Reverse Current | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (0.87x1.37) |
|
BTC500101TAAATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Parallel | 5V ~ 28V | Not Required | 30A | - | Non-Inverting | - | - | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TO263-7-8 |
|
|
BTS500151TAAATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 28V | Not Required | 33A | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-8 |
|
BTS500402SFAXUMA1IC PWR SWITCH N-CHAN 1:1 DSO-36 |
0 |
|
Datasheet |
36-BSSOP (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | Parallel | 6V ~ 28V | 4.5V ~ 5.5V | 11A | 4mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-44 |
|

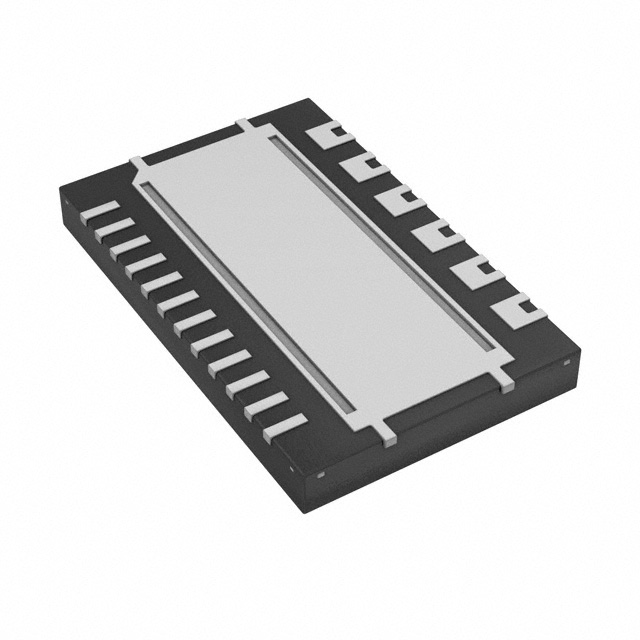

BTS54040LBEAUMA1IC PWR SWITCH N-CHAN 1:2 TSON-24 |
0 |
|
Datasheet |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 4 | 1:2 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 2A | 39mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS54220LBBAUMA1IC PWR SWITCH N-CHAN 1:1 TSON-24 |
0 |
|
Datasheet |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 5A | 9mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS54220LBFAUMA1IC PWR SWITCH N-CHAN 1:2 TSON-24 |
0 |
|
Datasheet |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 4 | 1:2 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | 5A | 9mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-TSON-24-3 |
|
|
BTS56033LBBAUMA1IC PWR SWITCH N-CHAN 2:3 TSON-24 |
0 |
|
Datasheet |
24-PowerTDFN | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 5.5V ~ 28V | 3.8V ~ 5.5V | - | 39mOhm, 110mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSON-24-3 |
|
AS1720A-ATDTIC PWR DRIVER 1:1 8MLPD |
0 |
|
Datasheet |
8-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | Low Side | - | On/Off | 5V ~ 50V | Not Required | 100mA | - | Non-Inverting | Internal PWM | Current Limiting (Adjustable), Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MLPD (2x2) |
|
|
BTS500402SFAXUMA2IC PWR SWITCH N-CHAN 1:1 DSO-36 |
0 |
|
Datasheet |
36-BSSOP (0.295", 7.50mm Width) | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | Parallel | 6V ~ 28V | 4.5V ~ 5.5V | 11A | 4mOhm | Non-Inverting | Slew Rate Controlled | Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-44 |
|
MC07XSG517EKIC PWR SWITCH N-CHAN 1:1 54HSOP |
0 |
|
- |
54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
MC17XSG500EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
0 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 30V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
BTS5240LNTIC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Datasheet |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 4.5V ~ 28V | Not Required | 5.5A | 21mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-2 |
|
BSP75NNTIC PWR DRVR N-CHAN 1:1 SOT223-4 |
0 |
|
Datasheet |
TO-261-4, TO-261AA | HITFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 700mA | 430mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
|
BTS500151TADATMA1IC PWR SWITCH N-CHAN 1:1 TO263-7 |
0 |
|
Datasheet |
TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 28V | Not Required | 33A | - | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO263-7-8 |
|
FPF34892UCXIC PWR SWITCH N-CHANNEL 1:2 |
0 |
|
- |
28-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 13.5V | Not Required | - | 28mOhm, 33mOhm | Non-Inverting | Status Flag | Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | - |
|
TBD62083AFGIC PWR SWITCH N-CHAN 1:1 18SOP |
0 |
|
Datasheet |
18-SOIC (0.276", 7.00mm Width) | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP |
|
|
TBD62783AFGIC PWR SWITCH P-CHAN 1:1 18SOP |
0 |
|
Datasheet |
18-SOIC (0.276", 7.00mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOP |
|
TBD62783AFNGIC PWR SWITCH P-CHAN 1:1 18SSOP |
0 |
|
Datasheet |
18-LSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | High Side | P-Channel | On/Off | 50V (Max) | Not Required | 500mA | - | Non-Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SSOP |
|
AUIPS1025RTRLIC PWR SWITCH N-CHAN 1:1 DPAK-3 |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 4.9A | 28mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3 |
Power Distribution Switches, Load Drivers Electronic Components
Explore Power Distribution Switches, Load Drivers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
