Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV7240ADPR2GIC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 3.3V, 5V | - | 600mA | 1.5Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 24-SSOP |
|
NIMD6001ANR2GIC PWR DRIVER N-CHAN 1:1 8SOIC |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 2 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 3.3A | 60mOhm | - | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AAT4610AIGV-1-T1IC PWR SWITCH P-CHAN 1:1 SOT23-5 |
0 |
|
Datasheet |
SC-74A, SOT-753 | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 2A | 145mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

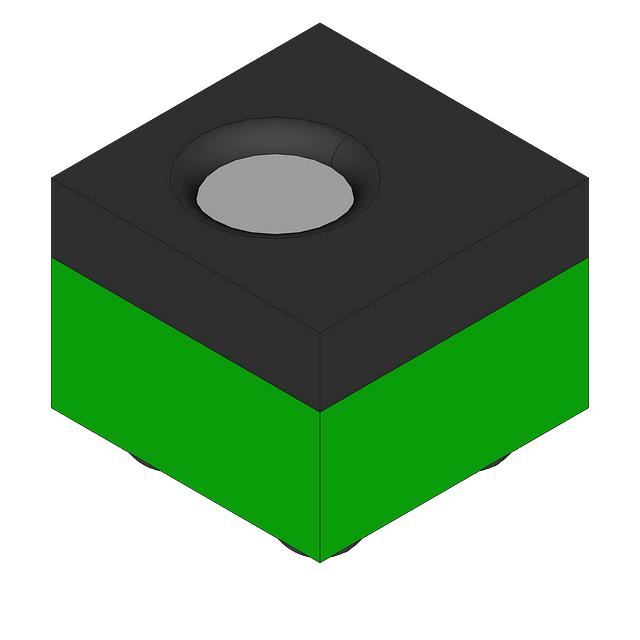

NX3P190UK,012IC PWR SWITCH P-CHAN 1:1 4WLCSP |
0 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 500mA | 65mOhm | Non-Inverting | Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
|
NX3P191UK,012IC PWR SWITCH P-CHAN 1:1 4WLCSP |
0 |
|
Datasheet |
4-UFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.1V ~ 3.6V | Not Required | 500mA | 65mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
MIC2039AYMT-T5IC PWR SWITCH P-CHAN 1:1 6TDFN |
0 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
DS3658NIC PWR DRIVER BIPOLAR 1:1 16DIP |
0 |
|
Datasheet |
16-DIP (0.300", 7.62mm) | - | Tube | Obsolete | General Purpose | 4 | 1:1 | Low Side | Bipolar | - | 4.75V ~ 5.25V | Not Required | 600mA | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MIC2033-05BYMT-T5IC PWR SWITCH P-CHAN 1:1 6TDFN |
0 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 500mA | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
|
MIC2039BYMT-T5IC PWR SWITCH P-CHAN 1:1 6TMLF |
0 |
|
Datasheet |
6-UDFN Exposed Pad, 6-TMLF® | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TMLF® (2x2) |
|
|
MIC2039EYMT-T5IC PWR SWITCH P-CHAN 1:1 6TDFN |
0 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 2.5A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-TDFN (2x2) |
|
MIC2033-10BYM6-T5IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
MIC2033-12BYM6-T5IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
0 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.2A | 75mOhm | Non-Inverting | Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
MC06XS3517AFKR2IC PWR SWITCH N-CHAN 1:5 24PQFN |
0 |
|
Datasheet |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 5 | 1:5 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 6mOhm, 17mOhm | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
MC09XS3400AFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | - | 9mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS3412CHFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | - | 10mOhm, 12mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS3435BHFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 10mOhm (Max), 35mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS3435DHFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 10mOhm (Max), 35mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS3535HFKR2IC PWR SWITCH N-CHAN 1:6 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 10mOhm (Max), 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-PQFN (12x12) |
|
MC10XS4200FKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
0 |
|
- |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC15XS3400CHFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 15mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
