Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE7238GSXUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 130mA, 260mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-5 |
|
|
TLE7239GSFUMA1IC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 130mA, 260mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-5 |
|
TLE8102SGAUMA1IC PWR SWITCH N-CHAN 1:1 DSO-12 |
0 |
|
Datasheet |
12-BSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | - | 180mOhm | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-12-11 |
|
MX878RIC PWR DRIVER 1:1 28QFN |
0 |
|
Datasheet |
28-VFQFN Exposed Pad | - | Tube | Obsolete | General Purpose | 8 | 1:1 | - | - | SPI, Parallel | 6V ~ 60V | 2.7V ~ 5.5V | 250mA | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-QFN (5x5) |
|
|
MX879RIC PWR DRIVER 1:1 28QFN |
0 |
|
Datasheet |
28-VFQFN Exposed Pad | - | Tube | Obsolete | General Purpose | 8 | 1:1 | - | - | SPI, Parallel | 6V ~ 60V | 2.7V ~ 5.5V | 150mA | 7Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-QFN (5x5) |
|
|
MX879RTRIC PWR DRIVER 1:1 28QFN |
0 |
|
Datasheet |
28-VFQFN Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 8 | 1:1 | - | - | SPI, Parallel | 6V ~ 60V | 2.7V ~ 5.5V | 150mA | 7Ohm | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-QFN (5x5) |
|
VNQ500N-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
Datasheet |
PowerSSO-12 | - | Tube | Active | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 400mA | 500mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
__2.jpg)
|
VND14NV04IC PWR DRIVER N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | OMNIFET II™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 36V (Max) | Not Required | 12A | 35mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
L93PIIC PWR DRIVER N-CHANNEL 1:1 20SO |
0 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 4 | 1:1 | Low Side | N-Channel | On/Off | 4.5V ~ 40V | Not Required | 400mA | 1.7Ohm | Non-Inverting | - | Over Temperature, Reverse Current | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-SO |
|
L9733XPIC PWR DRVR N-CHAN 1:8 PWRSSO28 |
0 |
|
Datasheet |
28-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Active | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 4.5V ~ 18V | 4.5V ~ 5.5V | 1A | 700mOhm (Max) | Non-Inverting | PWM Input | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | PowerSSO-28 Exposed Pad |
|
L9848IC PWR DRIVER 1:8 28SO |
0 |
|
Datasheet |
28-SOIC (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 8 | 1:8 | High Side or Low Side | - | SPI | 4.75V ~ 5.25V | - | 800mA | 1.5Ohm (Max) | - | PWM Input | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SO |
|
AP2155SG-13IC PWR SWITCH P-CHANNEL 1:1 8SOP |
0 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 95mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|

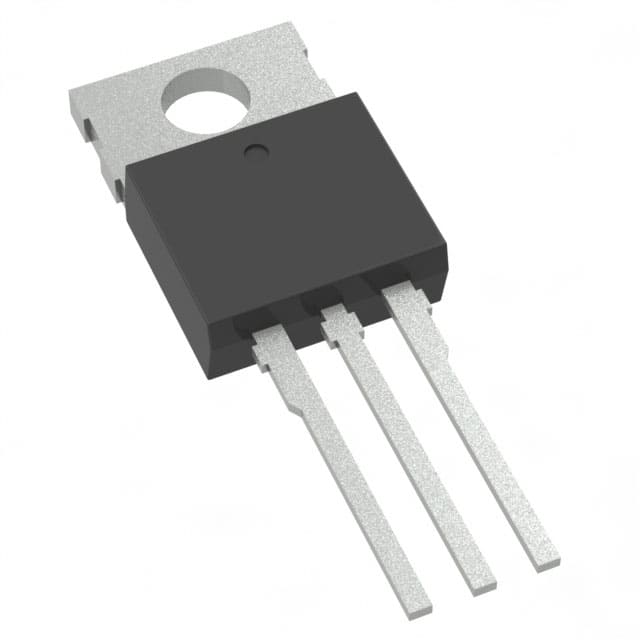

BTS149NKSA1IC PWR SWITCH N-CHAN 1:1 TO220-3 |
0 |
|
Datasheet |
TO-220-3 | HITFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 19A | 14mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
BTS949NKSA1IC PWR SWITCH N-CHAN 1:1 TO220-5 |
0 |
|
Datasheet |
TO-220-5 Formed Leads | HITFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V (Max) | Not Required | 19A | 14mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-5-11 |
|
TLE7236EIC PWR DRIVER N-CHAN 1:8 24SSOP |
0 |
|
Datasheet |
24-LSSOP (0.154", 3.90mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:8 | High Side or Low Side | N-Channel | SPI | 9V ~ 16V | 3V ~ 5.5V | 175mA, 350mA | 900mOhm, 1.6Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-4 |
|
TLE7240SLIC PWR DRIVER N-CHAN 1:2 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:2 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | 3V ~ 5.5V | 210mA | 1.5Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-7 |
|
|
TLE7243SLXUMA2IC PWR DRIVER N-CHAN 1:2 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 8 | 1:2 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | 3V ~ 5.5V | 260mA | 1.2Ohm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-7 |
|
|
TLE7244SLIC PWR DRIVER N-CHAN 1:2 24SSOP |
0 |
|
Datasheet |
24-SSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 8 | 1:2 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | 3V ~ 5.5V | 290mA | 800mOhm | - | - | Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-SSOP-24-7 |
|
L99MC6IC PWR DRVR N-CHAN 1:6 PWRSSO16 |
0 |
|
Datasheet |
16-PowerFSOP (0.154", 3.90mm Width) | - | Tube | Active | General Purpose | 6 | 1:6 | High Side or Low Side | N-Channel | SPI | 6V ~ 28V | 3V ~ 5.25V | 600mA | 700mOhm | Non-Inverting | PWM Input, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-16 |
|
VN380SP-EIC PWR DRVR BIPOLAR 2:1 PWRSO10 |
0 |
|
Datasheet |
PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Active | Relay, Solenoid Driver | 1 | 2:1 | High Side | Bipolar | On/Off | 6V ~ 24V | Not Required | 5A | 110mOhm | - | Status Flag | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-10 |
